R111.1002.H0.C HD03
Insert
Part number R1111002H0CHD03

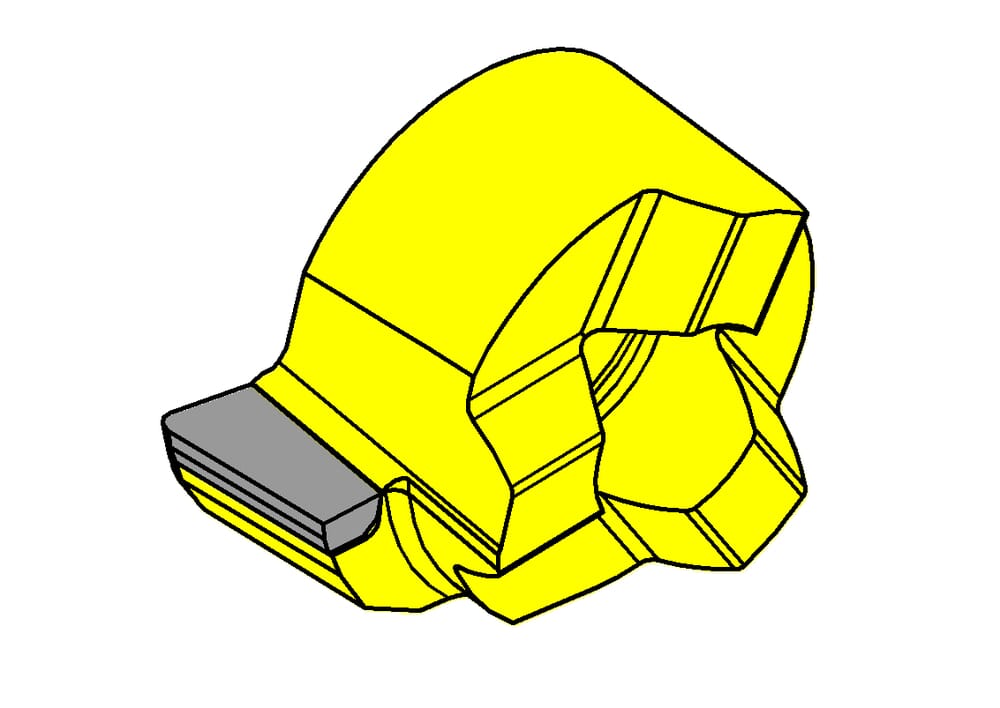

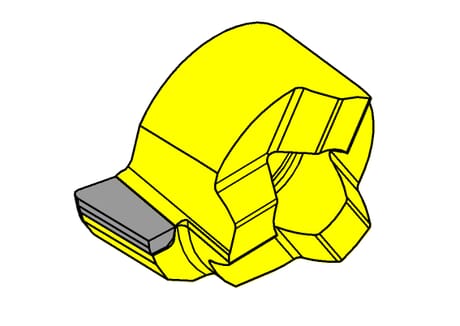

HORN Insert R111.1002.H0.C HD03 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

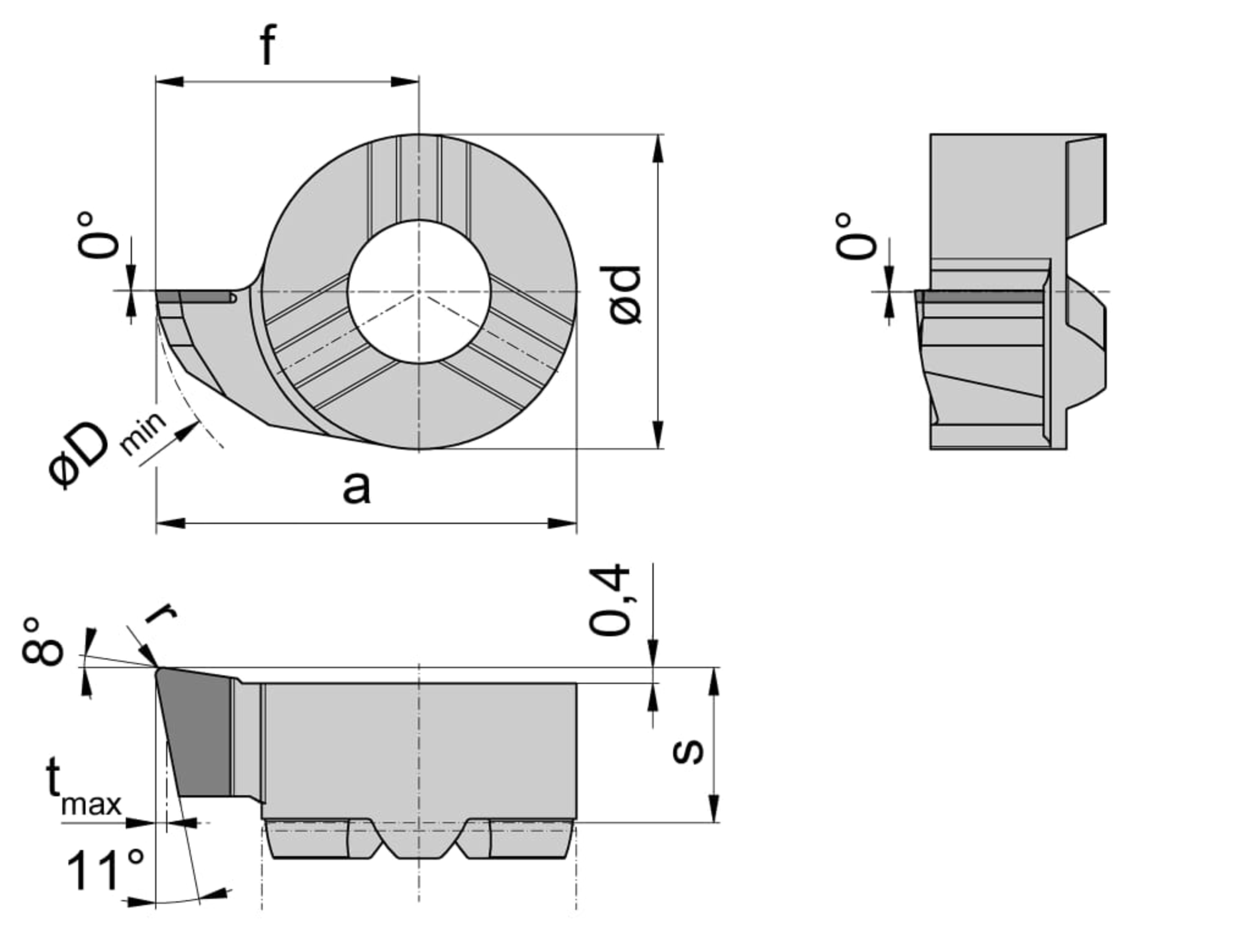

Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Tooth diameter, head diameter (d)
8
mm
Setting range radial (f)
6.7
mm
Katalog_SSC
111080R
DIN_SSC
HORN-11108084R
ISO_SSC
HORN111080$84R$$$$$
Maximum depth of groove (tmax)
0.4
mm
Head size (a)
10.7
mm
Top radius (r)
0.2
mm
| Downloads | |
|---|---|
| R1111002H0C_20230113_212450540.STP | Download |
| R1111002H0C.DXF | Download |
| Download all files | |
