R111.1867.02 TN35
Inserts
Part number R111186702TN35

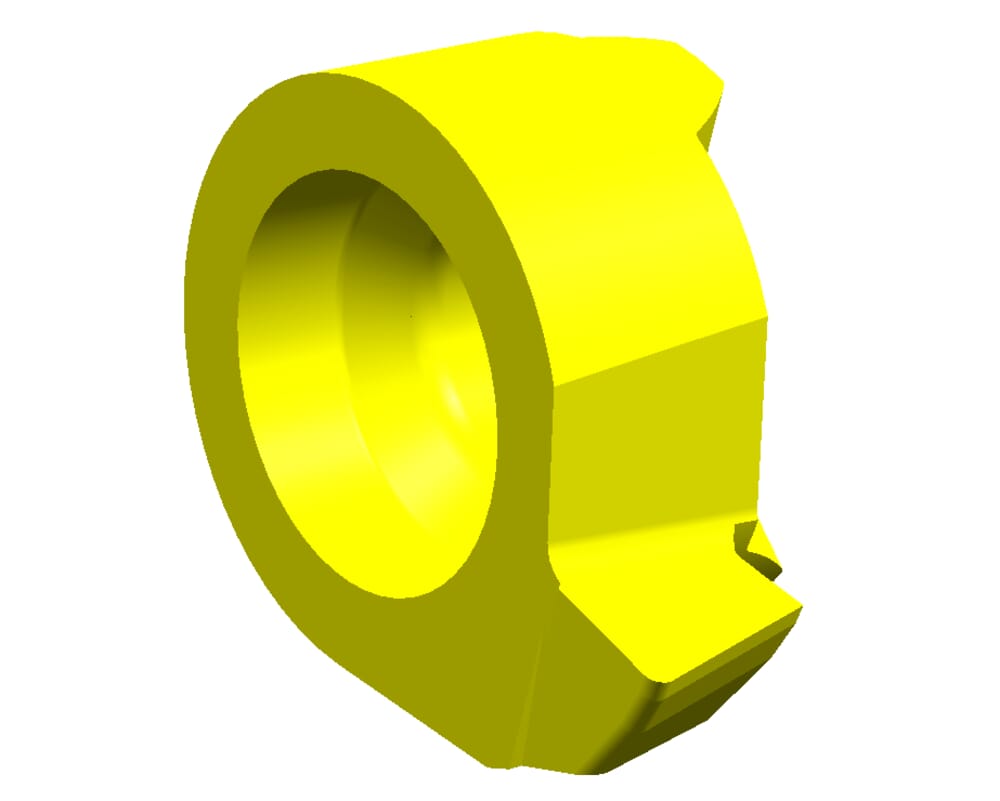

HORN Inserts R111.1867.02 TN35 for Turning
Please note:Technical instructions

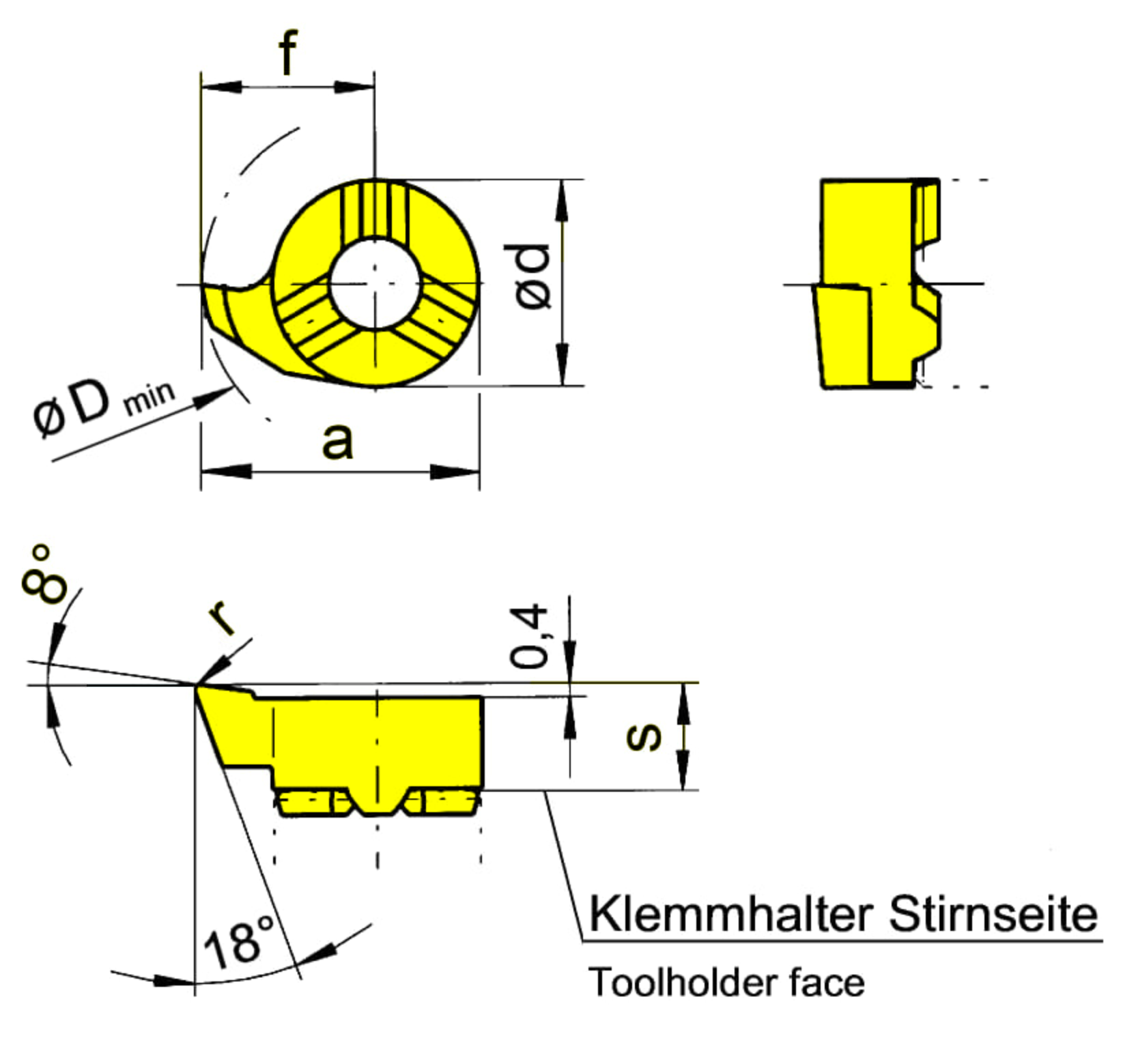

Top radius (r)
0.2
mm
Head size (a)
10.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN111080$84R$$$$$
DIN_SSC
HORN-11108084R
Katalog_SSC
111080R
Setting range radial (f)
6.7
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Smallest bore diameter (Dmin)
11
mm
| Downloads | |
|---|---|
| R111186702_20210630_151559880.STP | Download |
| R111186702_20210628_193547227.DXF | Download |
| Download all files | |
