R114.0110.00 TN35

Inserts

Part number R114011000TN35

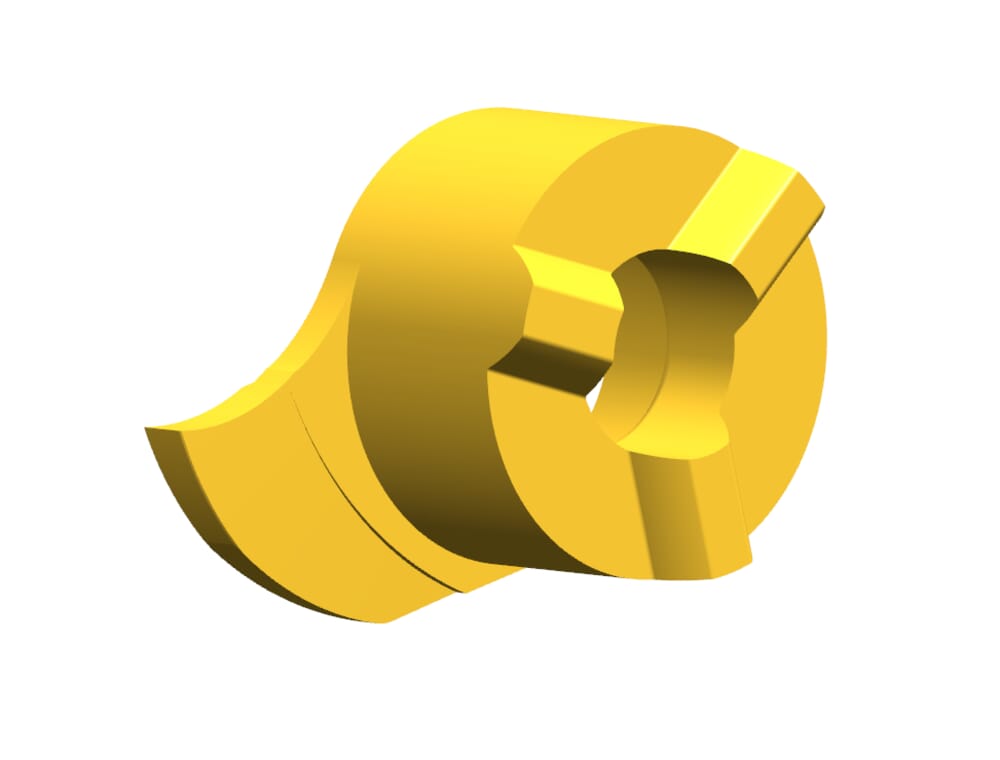

HORN Inserts R114.0110.00 TN35 for Turning

ISO_SSC

HORN114090$84R$$$$$

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Nominal range (Nw)

1.1 mm

Width of groove (w)

1.19 mm

Katalog_SSC

114090R

DIN_SSC

HORN-11409084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
