R114.0150.00 TN35
Inserts
Part number R114015000TN35

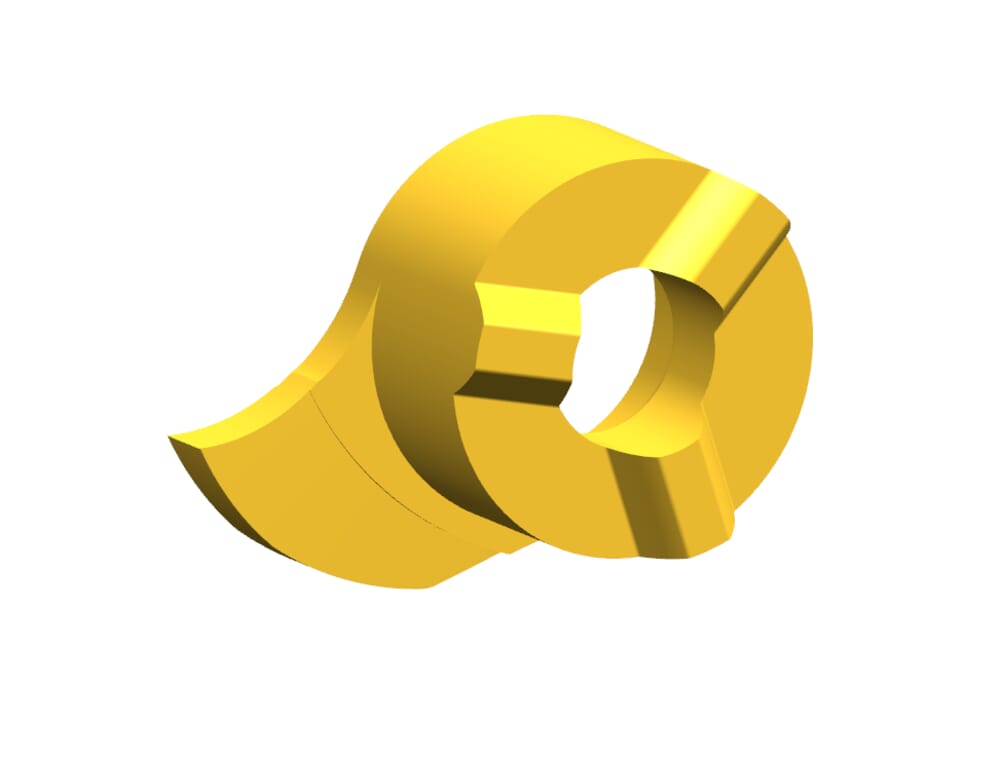

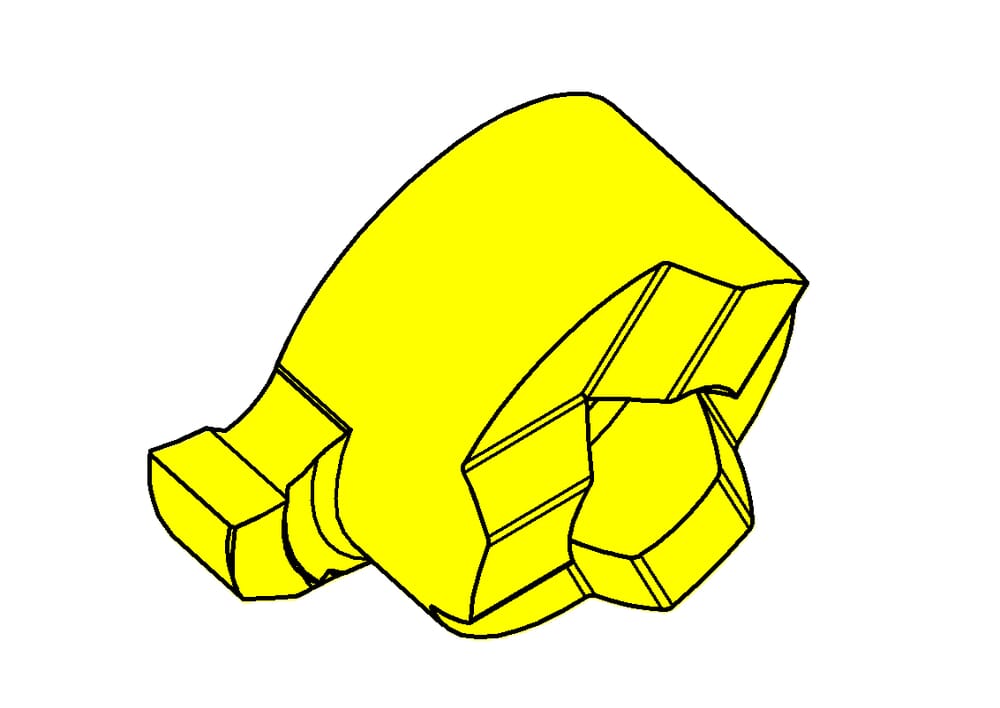

HORN Inserts R114.0150.00 TN35 for Turning
Please note:Technical instructions

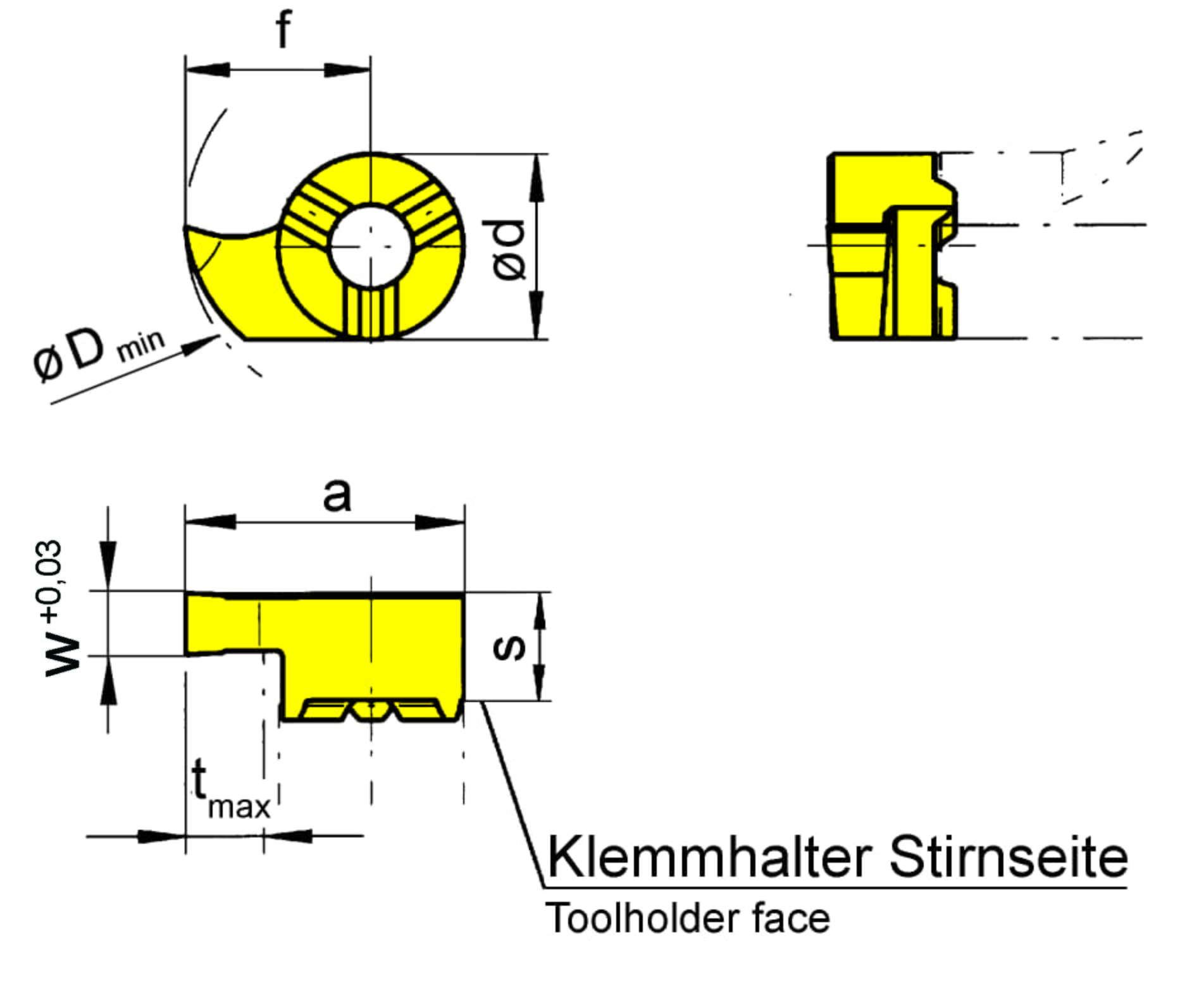

Smallest bore diameter (Dmin)
14
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
9
mm
Width of groove (w)
1.5
mm
Katalog_SSC
114090R
DIN_SSC
HORN-11409084R
ISO_SSC
HORN114090$84R$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4
mm
Head size (a)
13.5
mm
| Downloads | |
|---|---|
| R114015000_20230113_213502083.STP | Download |
| R114015000_20210628_194223704.DXF | Download |
| Download all files | |
