R114.0200.10.B CB35

Insert

Part number R114020010BCB35

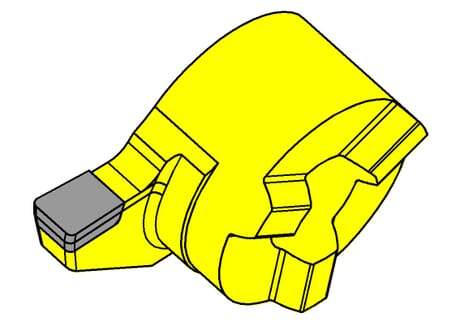

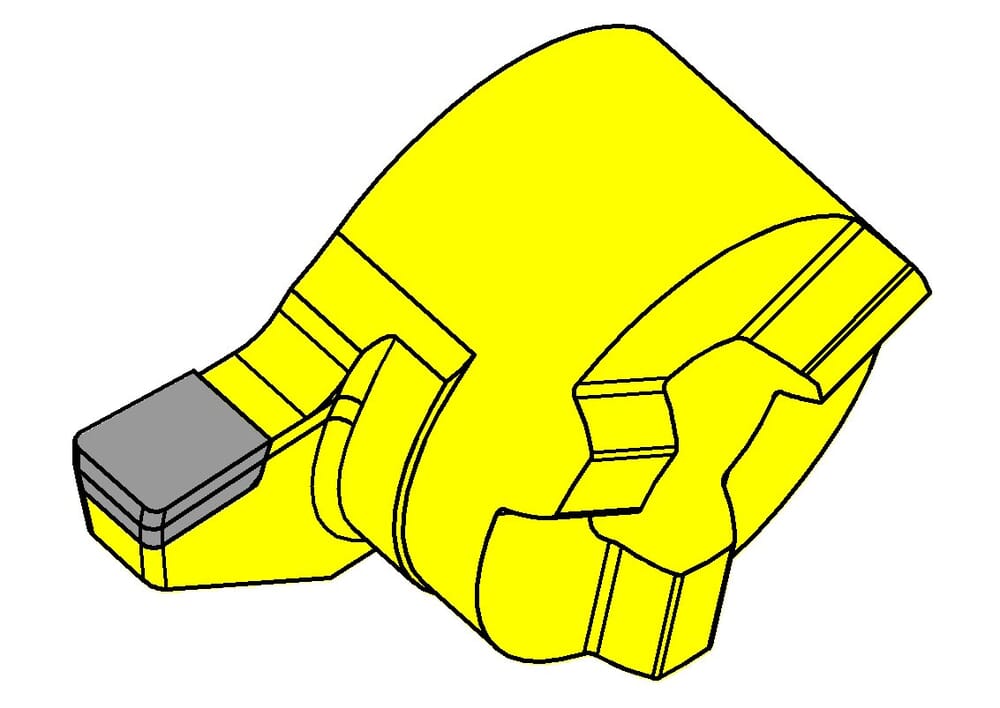

HORN Insert R114.0200.10.B CB35 for Turning

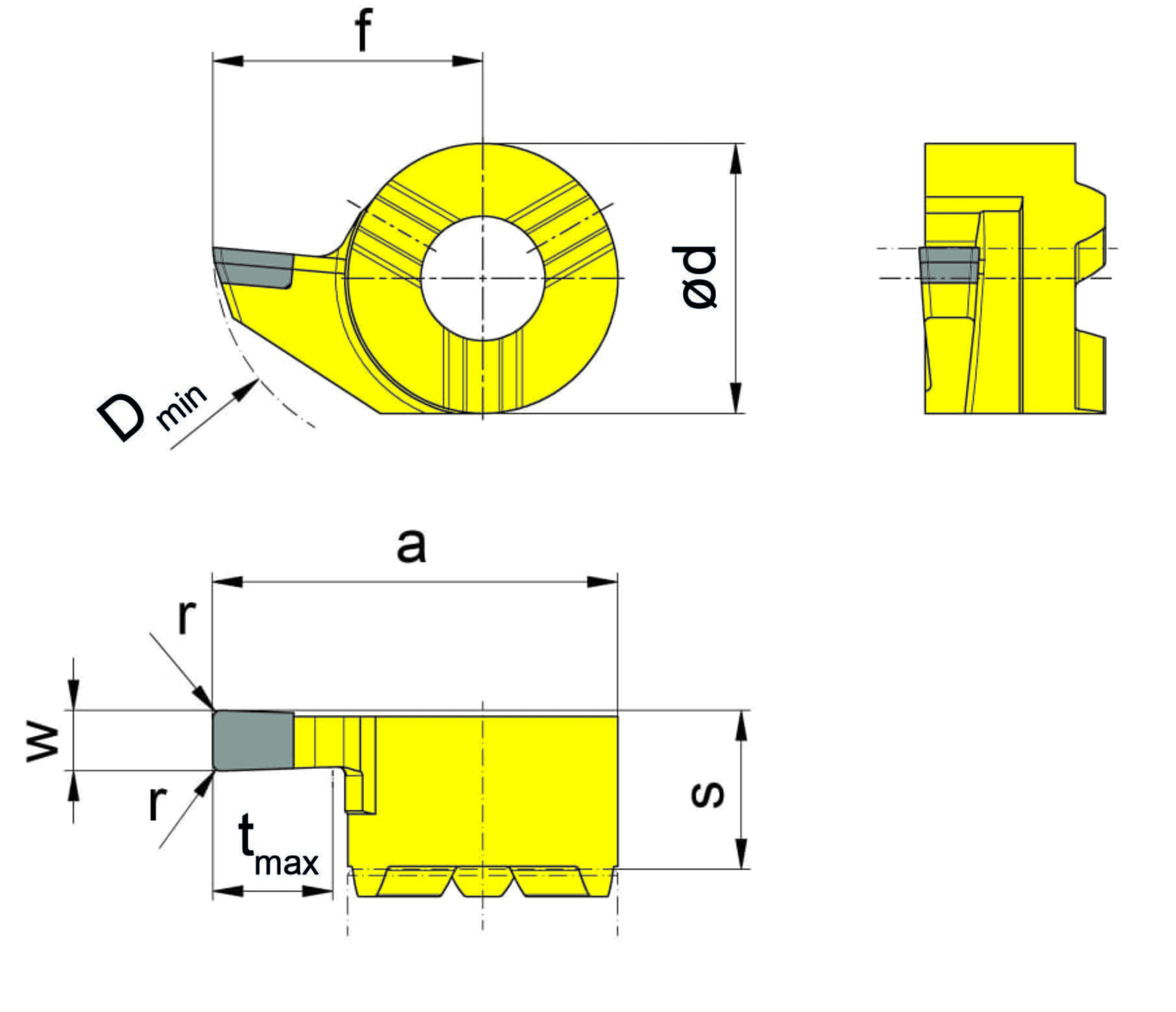

Head size (a)

13.5 mm

Maximum depth of groove (tmax)

4 mm

ISO_SSC

HORN114090$84R$$$$$

DIN_SSC

HORN-11409084R

Katalog_SSC

114090R

Width of groove (w)

2 mm

Setting range radial (f)

9 mm

Tooth diameter, head diameter (d)

9 mm

Corner radius (r)

0.25 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Smallest bore diameter (Dmin)

14 mm
