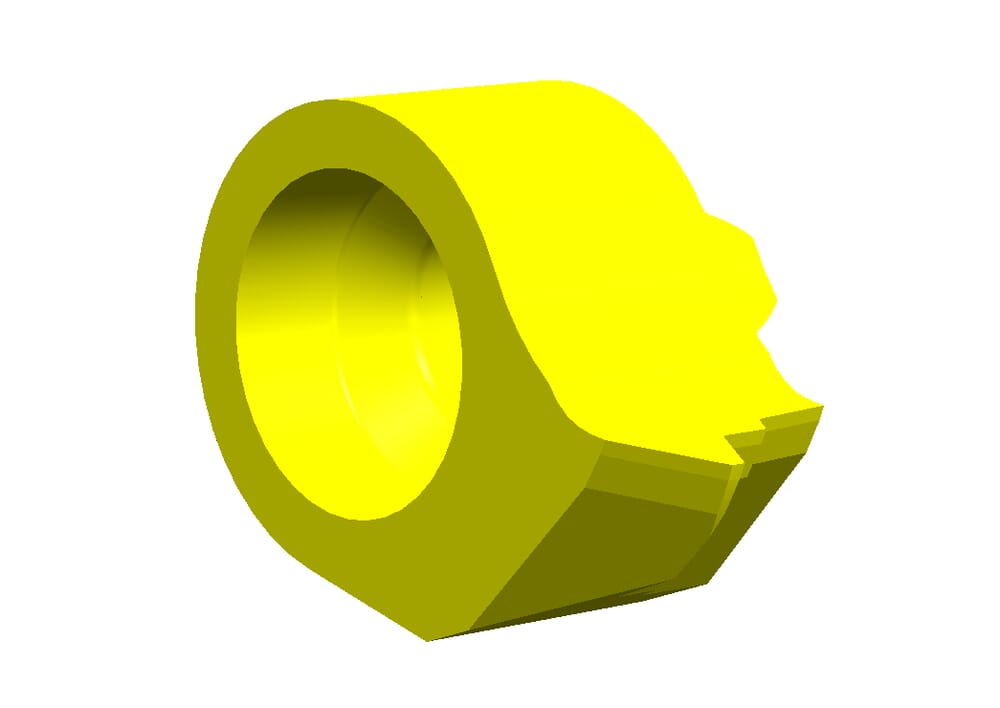

R114.1325.02 TN35

Inserts

Part number R114132502TN35

HORN Inserts R114.1325.02 TN35 for Gewinden

DIN_SSC

HORN-11409084R

Pitch (P)

2.5 mm

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.5 mm

Setting length (E)

4.2 mm

Tooth diameter, head diameter (d)

9 mm

Cutting insert width (a)

13.5 mm

Setting range radial (f)

9 mm

Katalog_SSC

114090R

ISO_SSC

HORN114090$84R$$$$$

eclass-shortcut

21-18-20-11

number-of-teeth

1 St.
