R114.MD.K0.02 MD10
Insert
Part number R114MDK002MD10

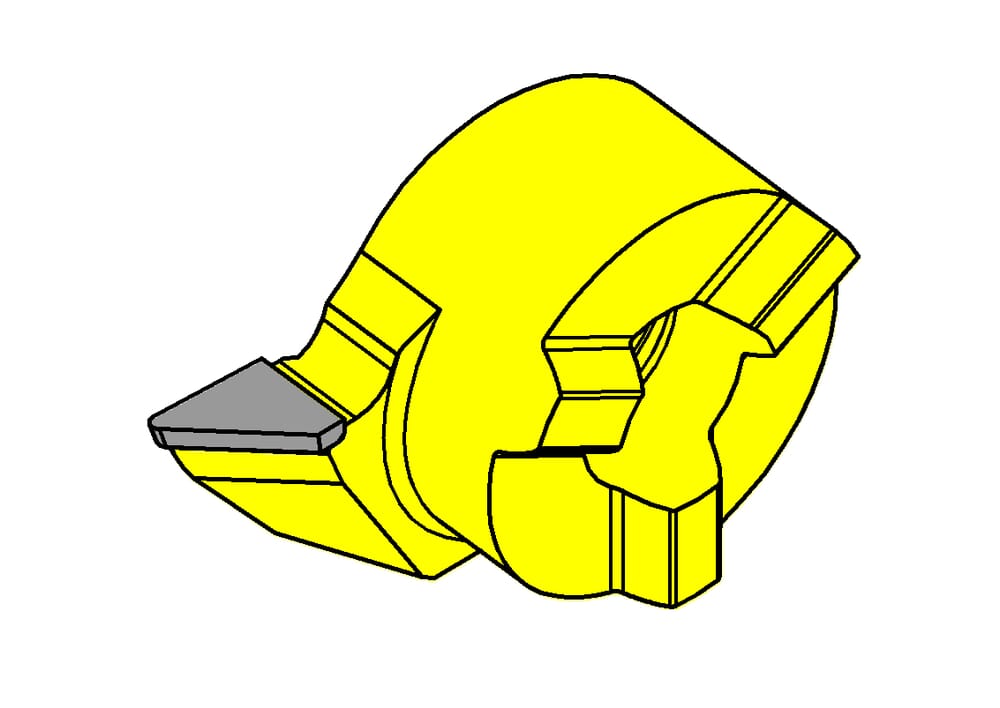

HORN Insert R114.MD.K0.02 MD10 for Turning
Please note:Technical instructions

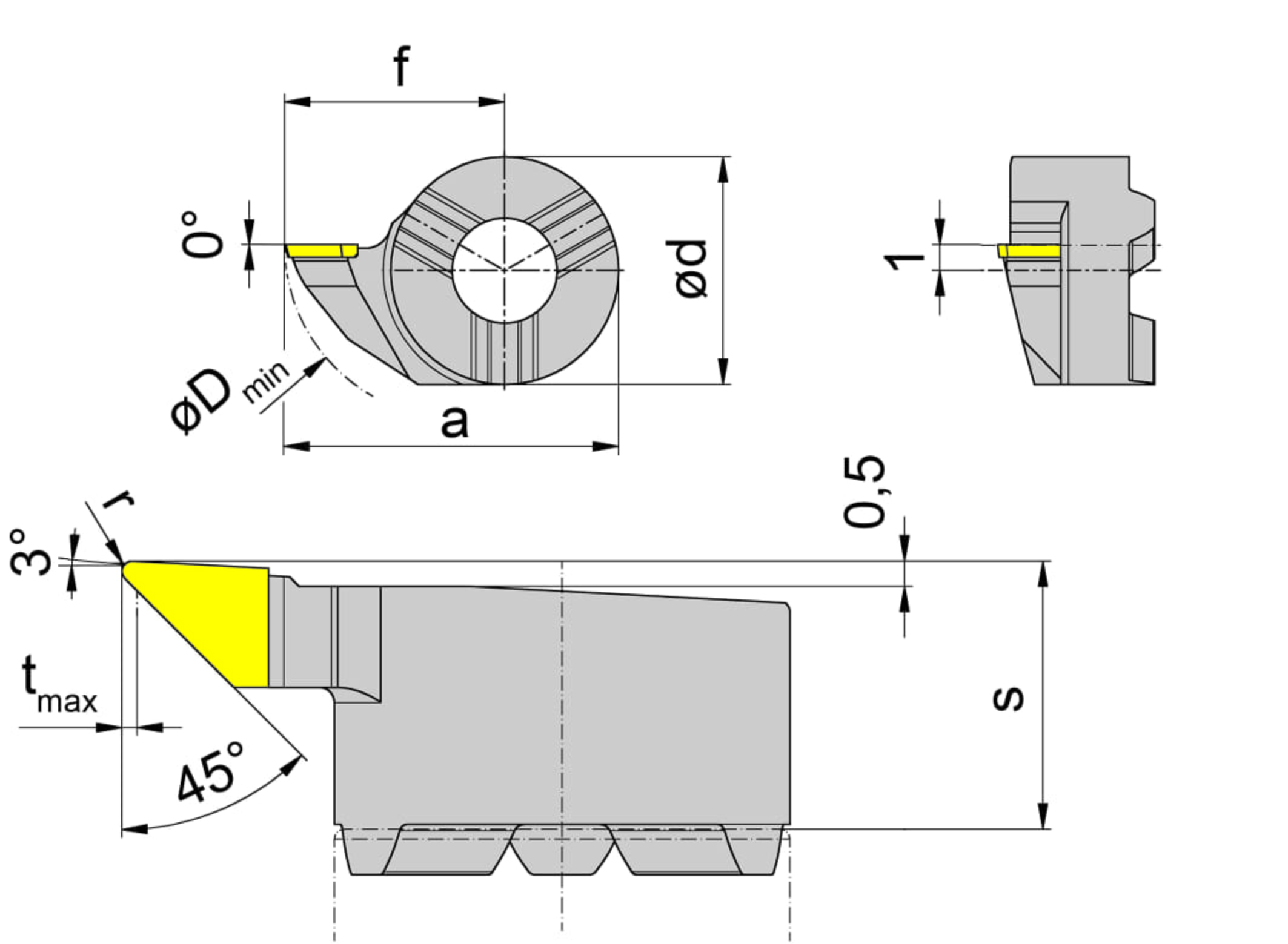

Smallest bore diameter (Dmin)
13.8
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
8.7
mm
cutting-width-met
2.5
mm
Katalog_SSC
114090R
DIN_SSC
HORN-11409084R
ISO_SSC
HORN114090$84R$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
13.5
mm
Top radius (r)
0.2
mm
| Downloads | |
|---|---|
| R114MDK002_20240117_065533422.STP | Download |
| R114MDK002.DXF | Download |
| Download all files | |
