R116.0300.00 TN35
Inserts
Part number R116030000TN35

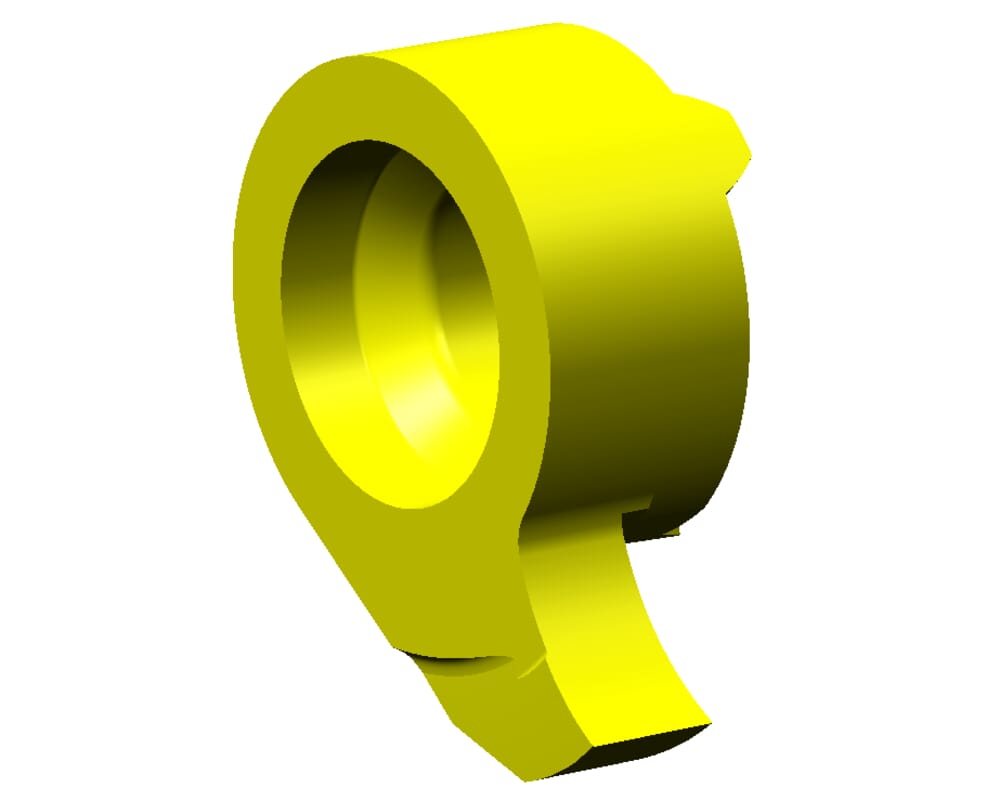

HORN Inserts R116.0300.00 TN35 for Milling and Turning
Please note:Technical instructions
Number of teeth (Z)
1
St.
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
10.2
mm
Width of groove (w)
3
mm
Katalog_SSC
116110R
DIN_SSC
HORN11611084R
ISO_SSC
HORN116110$84R$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4.3
mm
Head size (a)
15.7
mm
Cutting diameter (Ds)
20.4
mm
| Downloads | |
|---|---|
| R116030000_20210630_180553260.STP | Download |
| R116030000_20210628_200413107.DXF | Download |
| Download all files | |
