R217.1150.53 P20
Inserts
Part number R217115053P20

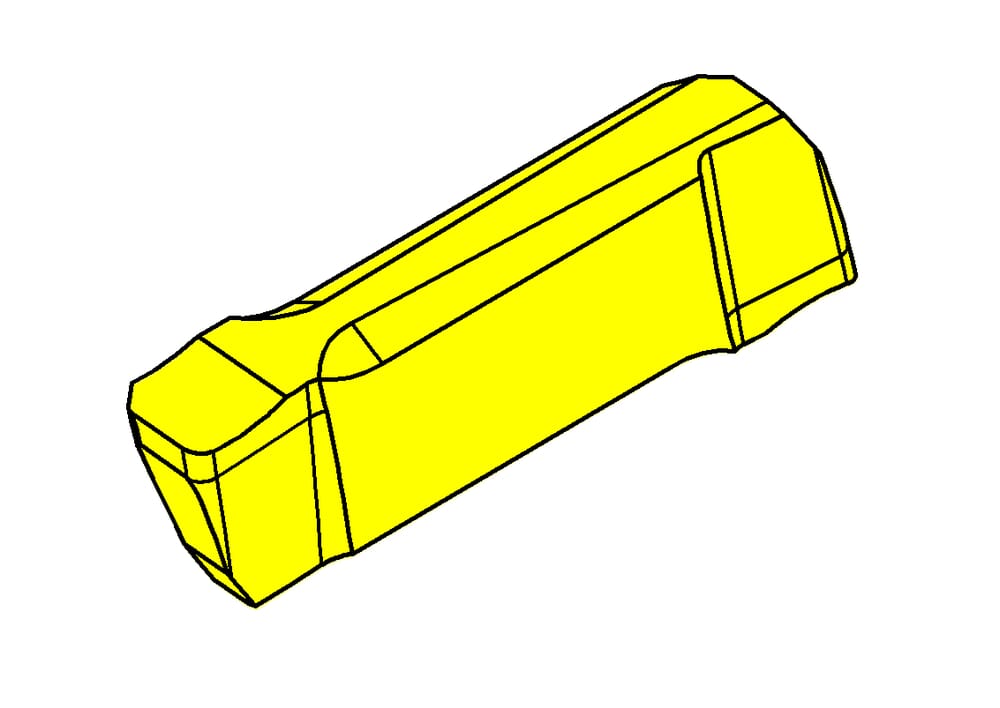

HORN Inserts R217.1150.53 P20 for Turning
Please note:Technical instructions
Free-throw base width (g1)
3.8
mm
Pitch (P)
1.5
mm
Corner radius (r)
0.8
mm
Cutting insert width (s)
5.3
mm
Plating seat size (Größe)
4
Katalog_SSC
21704
DIN_SSC
HORN-217040008N
ISO_SSC
HORN217040008N$$$$$
eclass-shortcut
21-18-20-03
Profile, thread depth (t1)
1.2
mm
Thread width (g2)
5
mm
| Downloads | |
|---|---|
| R217115053_20230114_030635543.STP | Download |
| R217115053.DXF | Download |
| Download all files | |
