R220.00C5.K2.IK

base support

Part number R22000C5K2IK

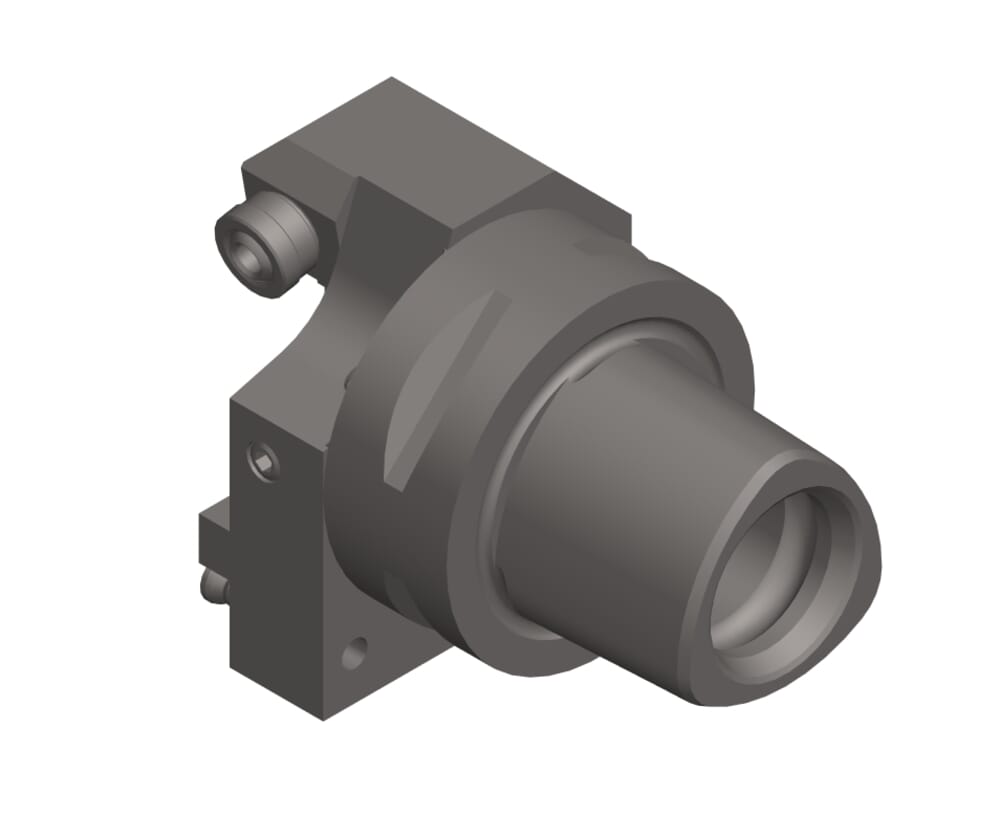

HORN base support R220.00C5.K2.IK for Turning

ISO_CCTMS

CCS01C0500$$$$;CCS01C0500$$$$

DIN_CCTMS

CCS05000195;CCS05000195

Katalog_CCTWS

220002

DIN_CCTWS

HORN-22000293;HORN-22000293;HORN-22000283;HORN-22000283

ISO_CCTWS

HORN22000293$$;HORN22000293$$;HORN22000283$$;HORN22000283$$

Length assembly formula (l)

l1+f3

Adjustment dimension (formula) (f)

f1+lK

eclass-shortcut

21-18-10-18

Length from bore (l2)

50.5 mm

Adjustment dimension (f1)

15 mm

Bore diameter rotate (d1)

50 mm

System cassette from the collar (l1)

35.2 mm

Distance from center (h1)

12.5 mm
