R220.2020.2.K2.IK
base support
Part number R22020202K2IK

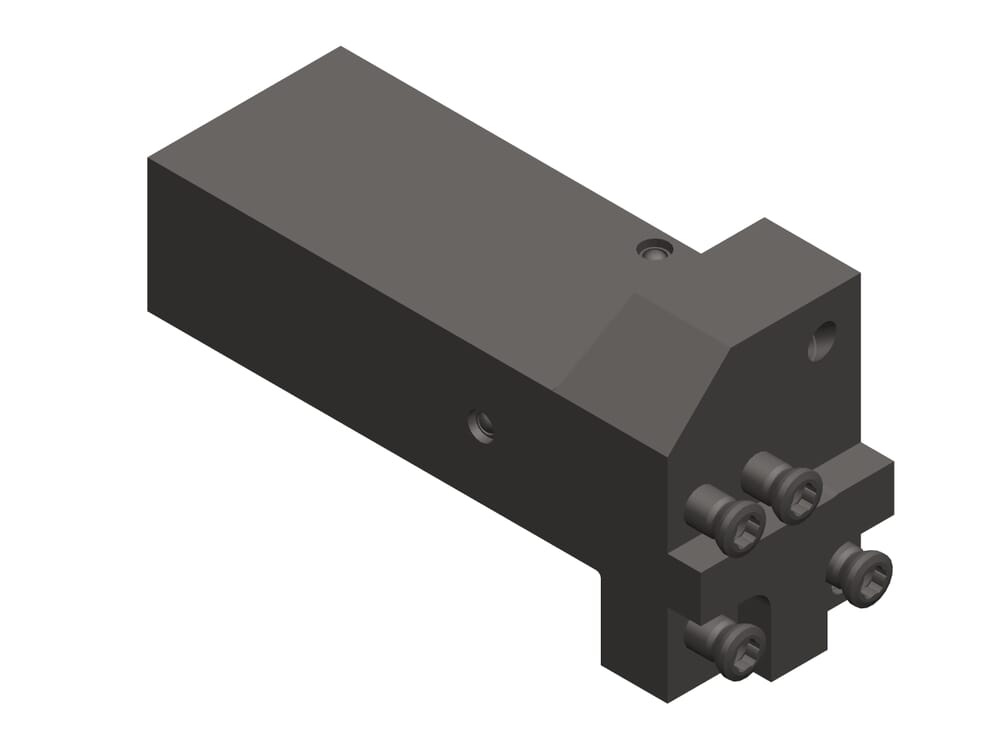

HORN base support R220.2020.2.K2.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-18
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
220002
DIN_CCTWS
HORN-22000293;HORN-22000283
ISO_CCTWS
HORN22000293$$;HORN22000283$$
Cutting insert width (l1)
79
mm
Length assembly formula (B)
lK+19
Length overall formula (l)
l1+f3
Peak height (h1)
32
mm
Head length stop (b)
20
mm
Shank height (b2)
20
mm
Adjustment dimension (b1)
32
mm
Shank length (l2)
69
mm
