R220.TS63.K1.IK
base support
Part number R220TS63K1IK

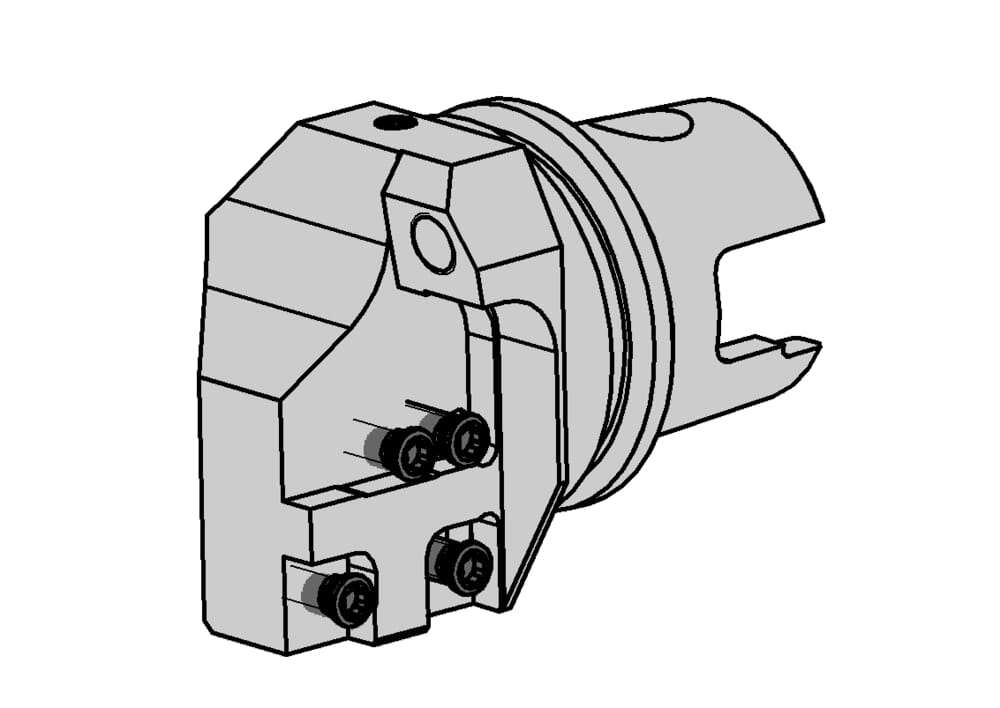

HORN base support R220.TS63.K1.IK for Turning
Please note:Technical instructions
ISO_CCTMS
KMT01C0630$$$$
DIN_CCTMS
KMT06300195
Katalog_CCTWS
220001
DIN_CCTWS
HORN-22000193;HORN-22000183
ISO_CCTWS
HORN22000193$$;HORN22000183$$

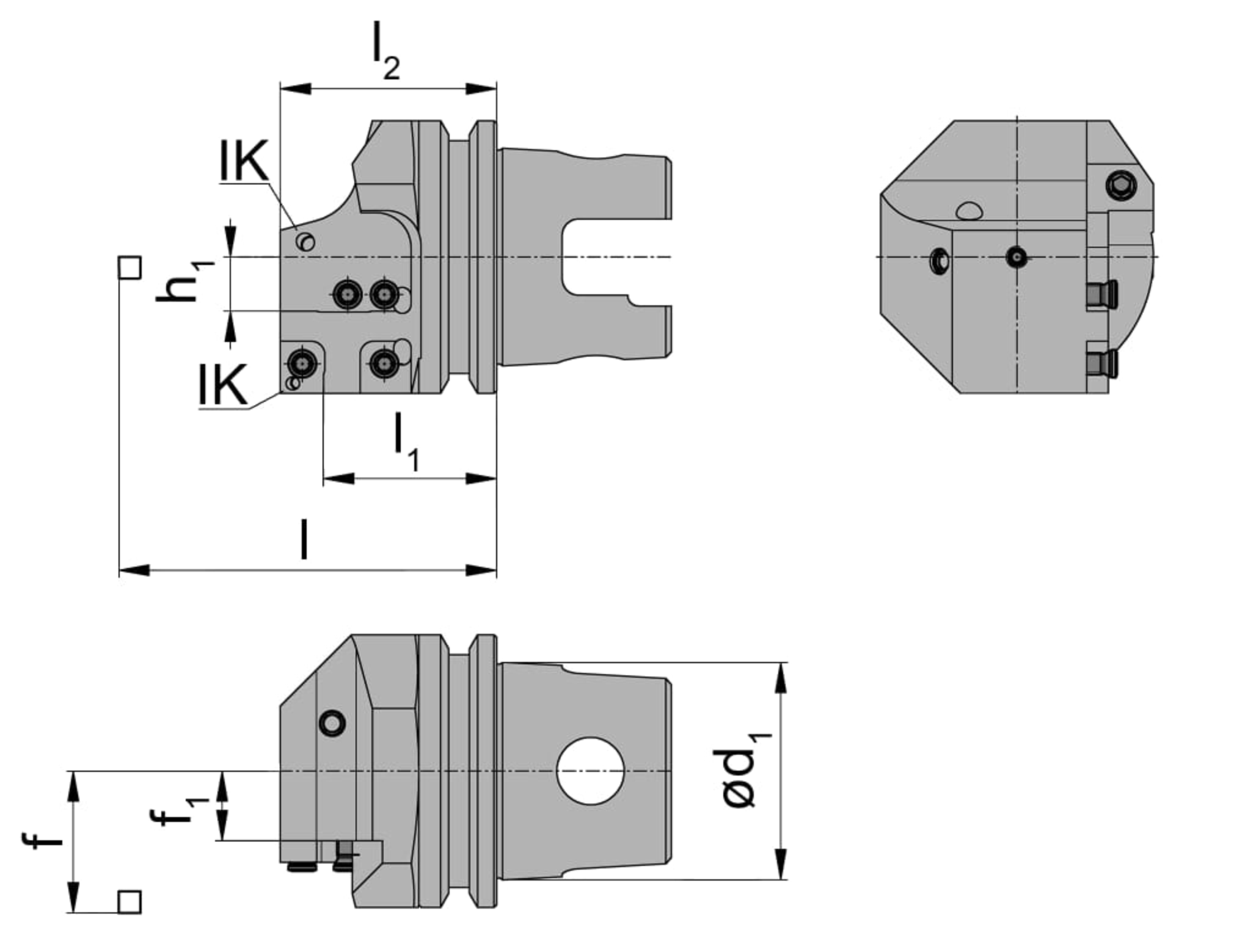

Length assembly formula (l)
l1+lK
Adjustment dimension (formula) (f)
f1+f3
eclass-shortcut
21-18-10-90
Length from bore (l2)
50
mm
Adjustment dimension (f1)
16.1
mm
Bore diameter rotate (d1)
63
mm
System cassette from the collar (l1)
40
mm
Distance from center (h1)
12.5
mm
| Downloads | |
|---|---|
| R220_KM63_K1.STP | Download |
| R220TS63K1IK_20211215_161826445.DXF | Download |
| Download all files | |
