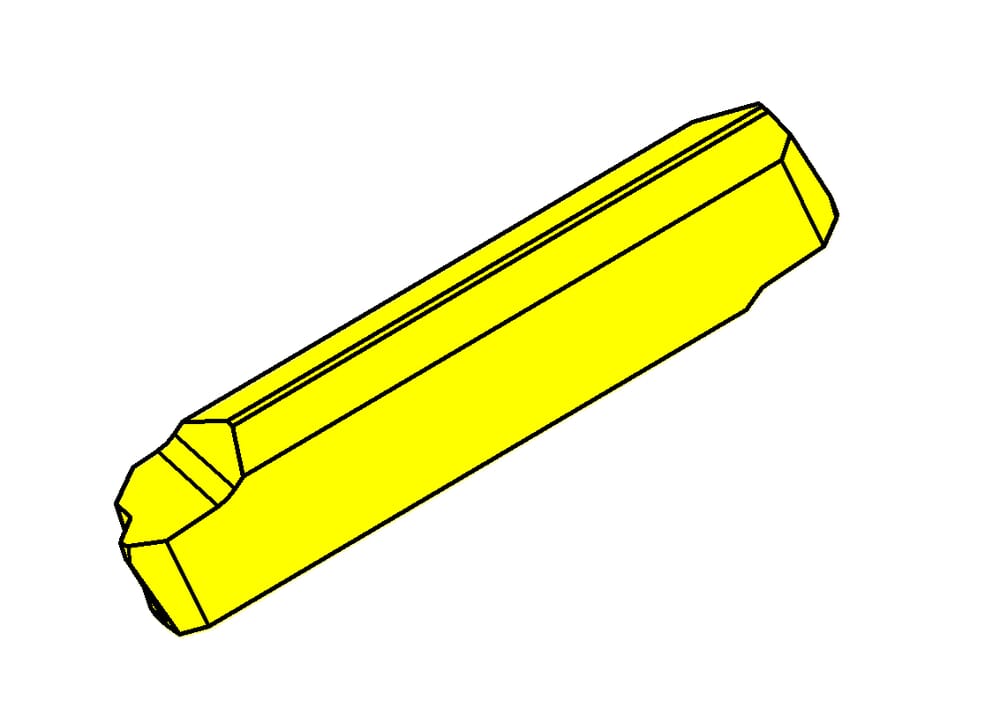

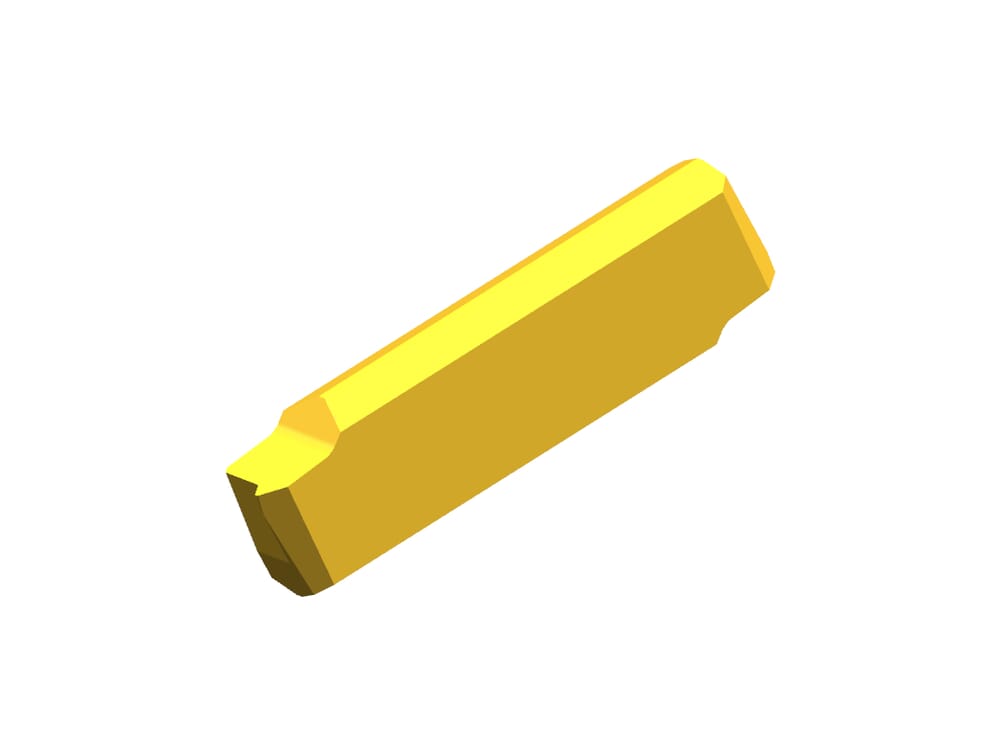

R229.0915.02 TN35
Inserts
Part number R229091502TN35
HORN Inserts R229.0915.02 TN35 for Gewinden
Please note:Technical instructions
number-of-teeth
2
St.

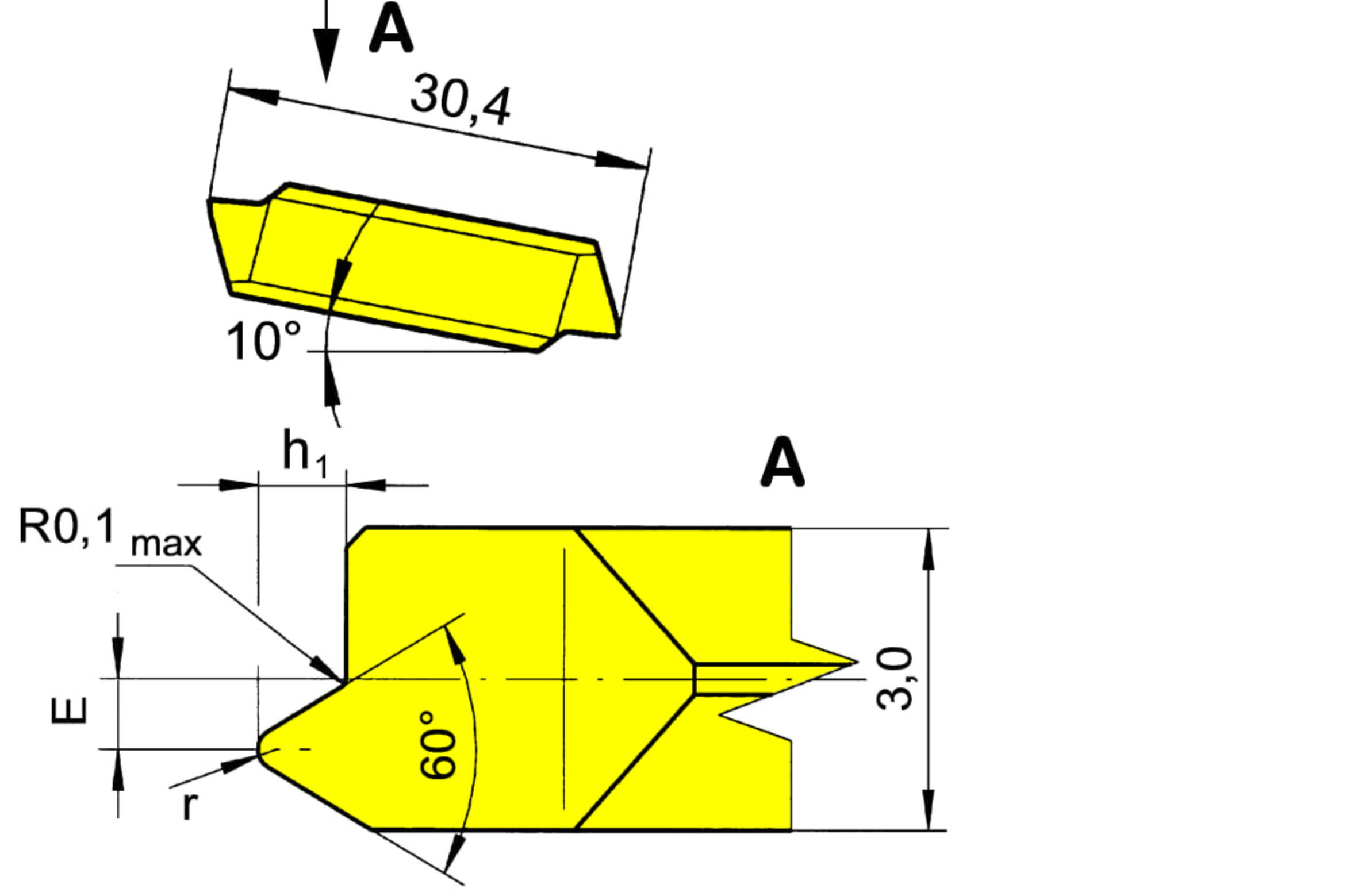

Top radius (r)
0.21
mm
Profile, thread depth (h1)
0.93
mm
eclass-shortcut
21-18-20-04
ISO_SSC
HORN229030108N$$$$$;HORN229030108N$$$$$;HORN229040108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229030108N;HORN-229040108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Setting length (E)
0.7
mm
Pitch (P)
1.5
mm
| Downloads | |
|---|---|
| R229091502.STP | Download |
| R229091502_20211124_113503698.DXF | Download |
| Download all files | |
