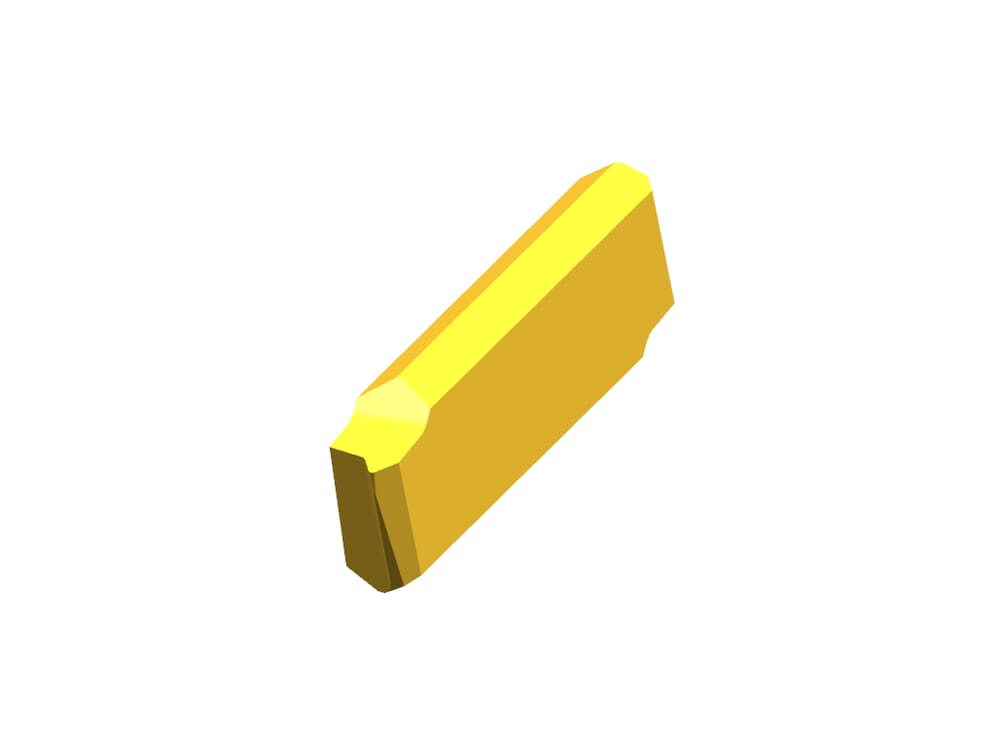

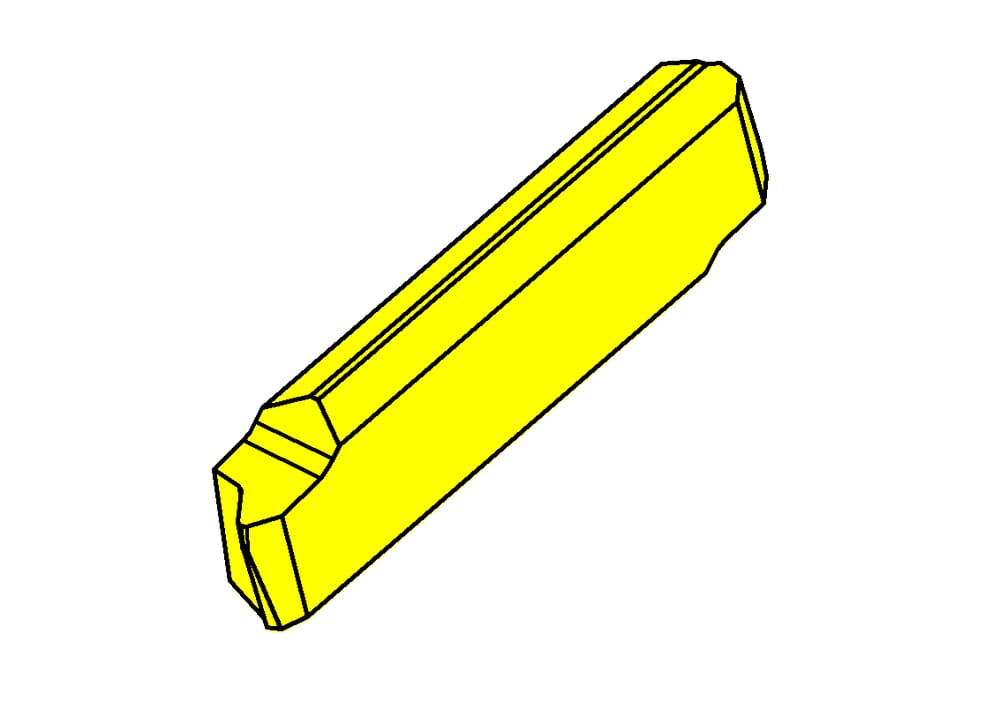

R229.1220.01 TN35

Inserts

Part number R229122001TN35

HORN Inserts R229.1220.01 TN35 for Gewinden

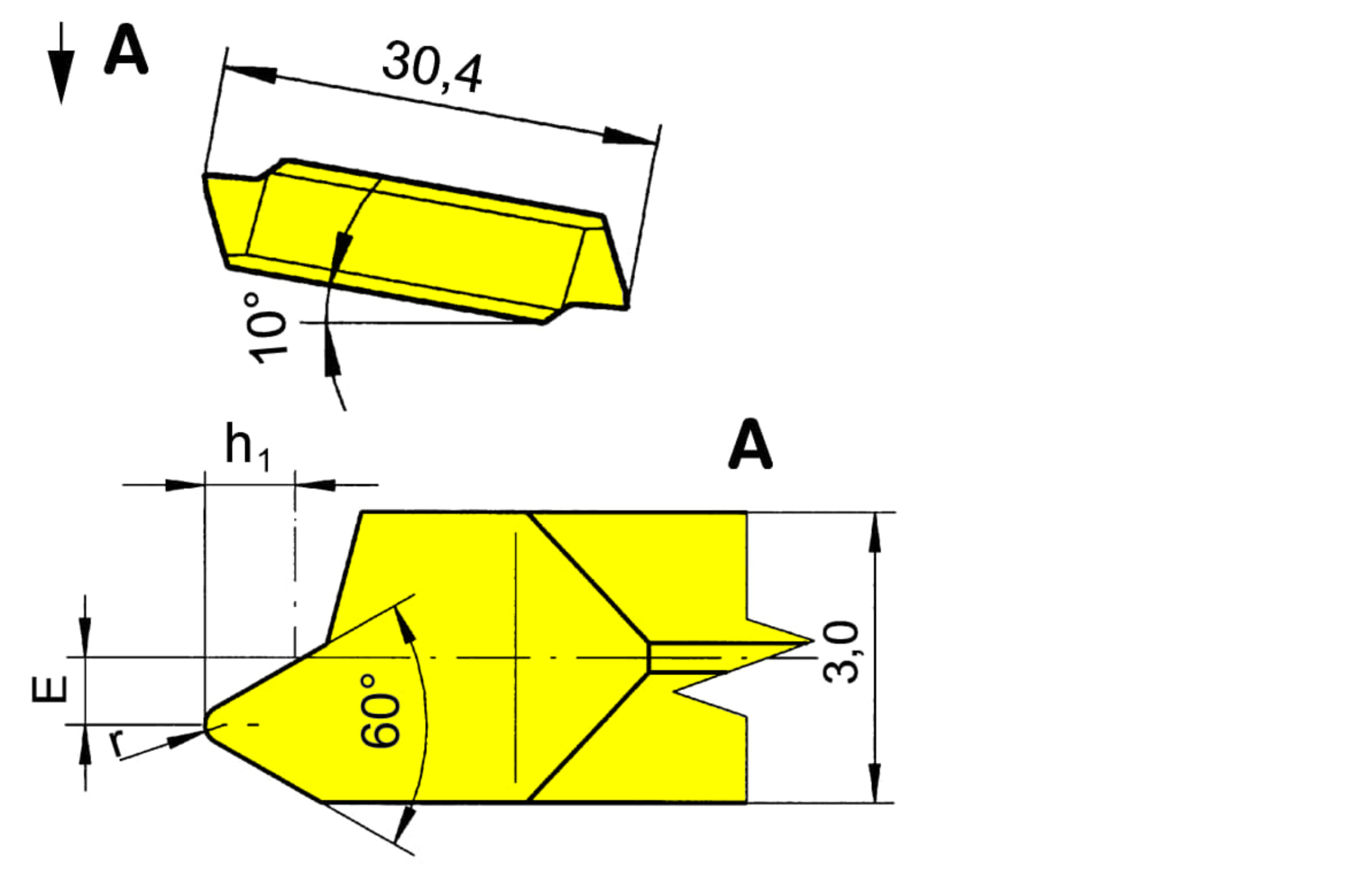

Top radius (r)

0.25 mm

Profile, thread depth (h1)

1.23 mm

eclass-shortcut

21-18-20-04

ISO_SSC

HORN229030108N$$$$$;HORN229030108N$$$$$;HORN229040108N$$$$$;HORN229040108N$$$$$

DIN_SSC

HORN-229030108N;HORN-229030108N;HORN-229040108N;HORN-229040108N

Katalog_SSC

229030;229040

Plating seat size (Größe)

3;4

Setting length (E)

0.5 mm

Pitch (P)

2 mm
