R255.0032.02
Toolholders
Part number R255003202

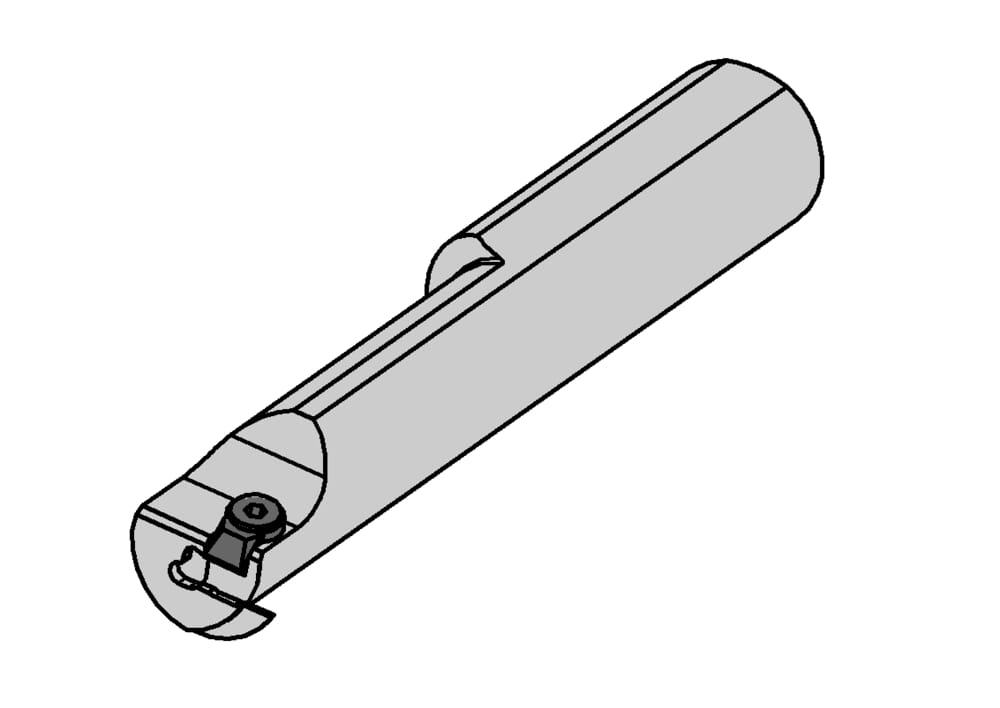

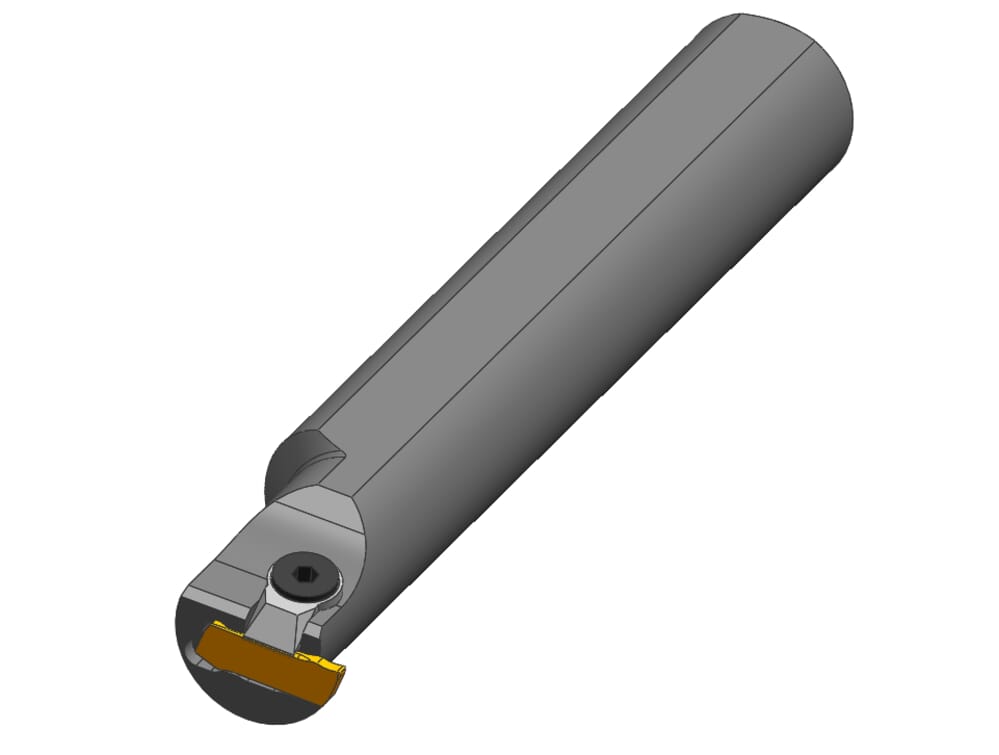

HORN Toolholders R255.0032.02 for Turning
Please note:Technical instructions

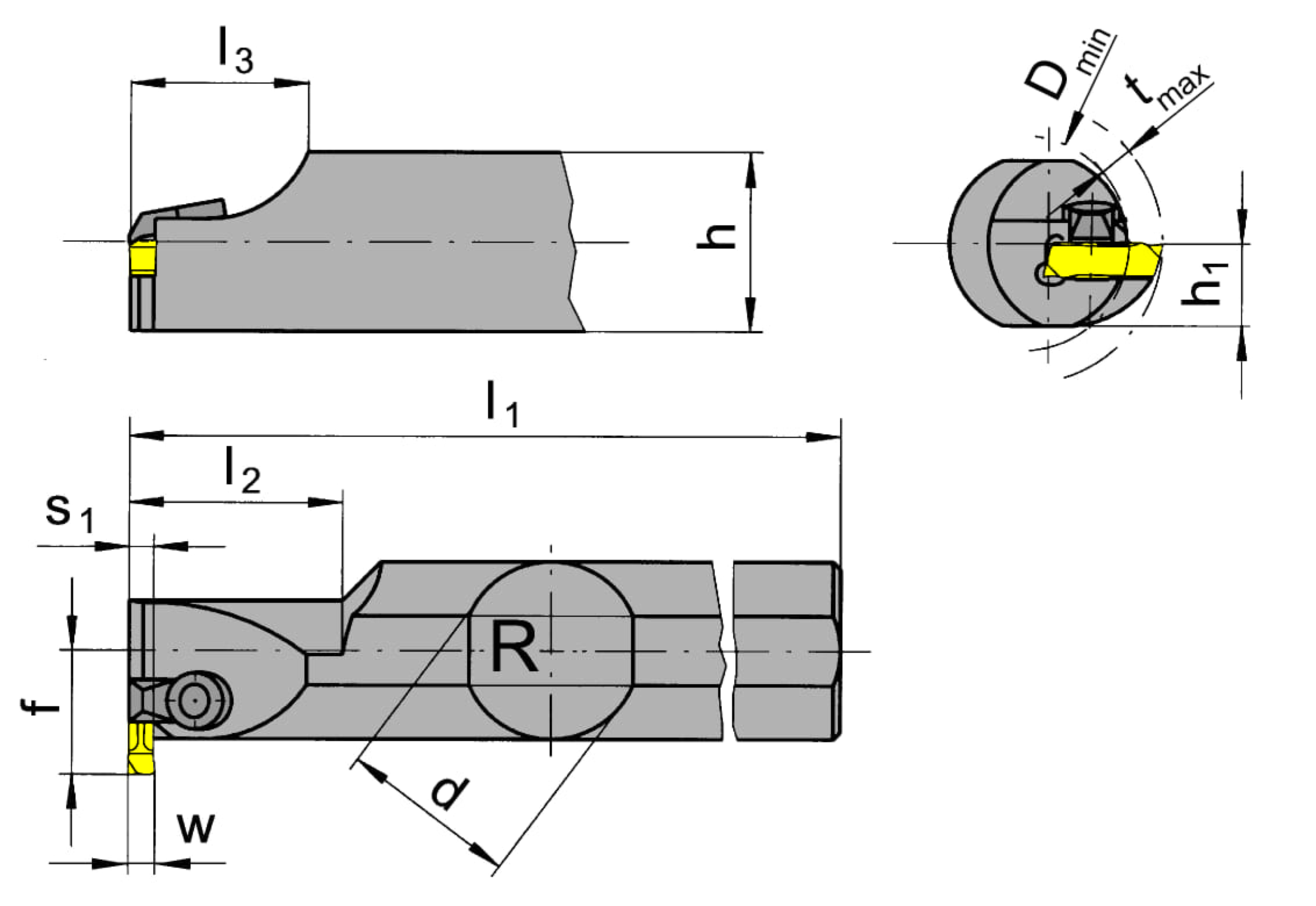

Peak height (h1)
15
mm
Working length (l2)
30
mm
Plating seat size (Größe)
2
ISO_CCTMS
ZYL23G3200$$$$
DIN_CCTMS
ZYL03202305
Katalog_CCTWS
21702
DIN_CCTWS
HORN-217020008N
ISO_CCTWS
HORN217020008N$$$$$
Clamping range maximum (Spannbereich)
2.7
mm
Clamping range minimum (Spannbereich)
1.7
mm
eclass-shortcut
21-18-10-05
Shank, clamping diameter (d)
32
Insert width (s1)
2.5
mm
Minimum drilling diameter (Dmin)
32
mm
Maximum depth of groove (tmax)
4.7
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension from center (f)
21
mm
Outcropping, neck, working length (l3)
25
mm
Distance of clamping surface (s) (h)
30
mm
