R312.0515.00 EG35
Insert
Part number R312051500EG35

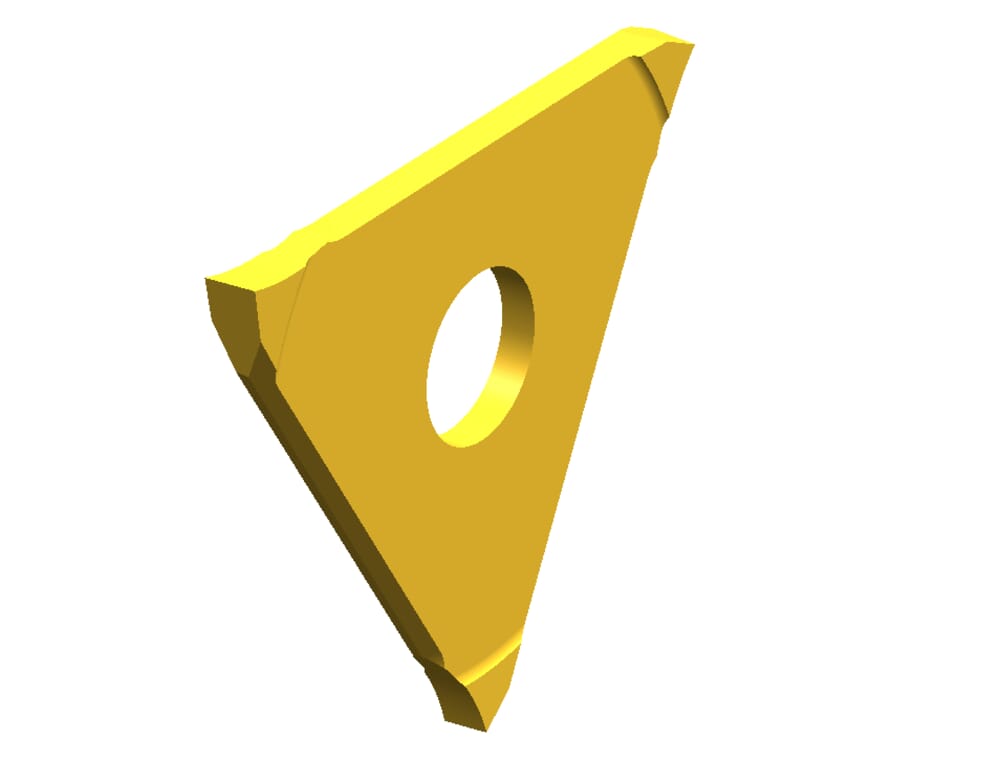

HORN Insert R312.0515.00 EG35 for Turning
Please note:Technical instructions
Cancellation (a1)
0.2
mm
Parting-off chamfer (α)
5
°
Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN-31211$000N$$$$$
DIN_SSC
HORN-31211000N
Katalog_SSC
31211N
Plating seat size (Größe)
1
Width of groove (w)
1.5
mm
| Downloads | |
|---|---|
| 312051500_20240117_020308478.STP | Download |
| R312051500_20210628_211805792.DXF | Download |
| Download all files | |
