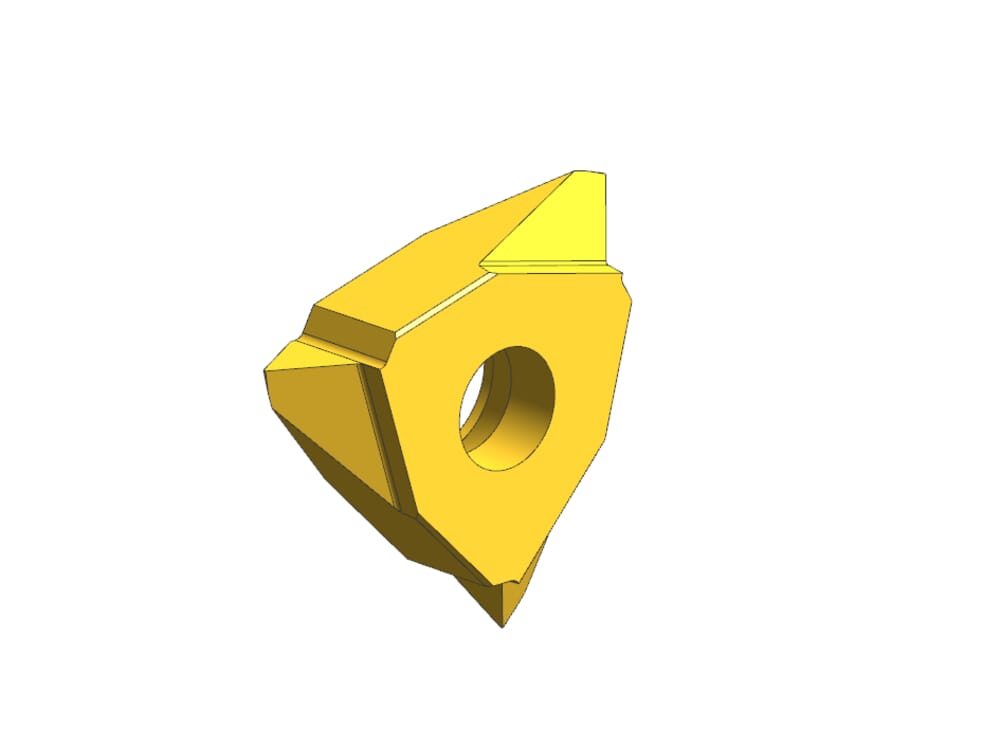

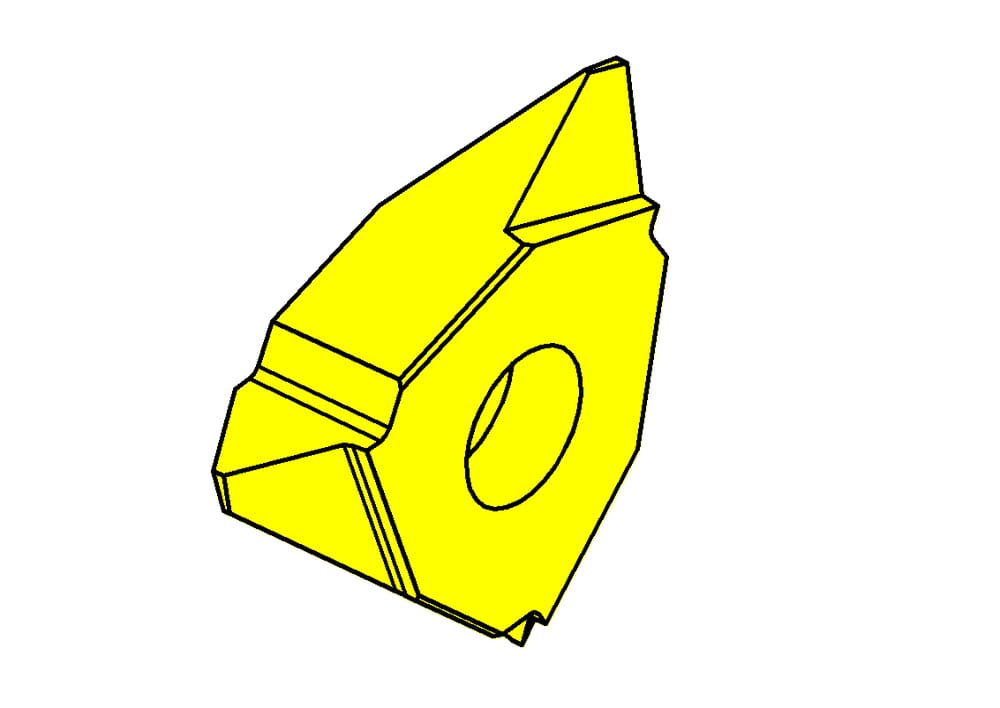

R314.1535.01 TN35

Inserts

Part number R314153501TN35

HORN Inserts R314.1535.01 TN35 for Gewinden

cutting-edge-diameter-met

44 mm

eclass-shortcut

21-18-20-01

ISO_SSC

HORN314052101R$$$$$

DIN_SSC

HORN-314052101R

Katalog_SSC

314052R

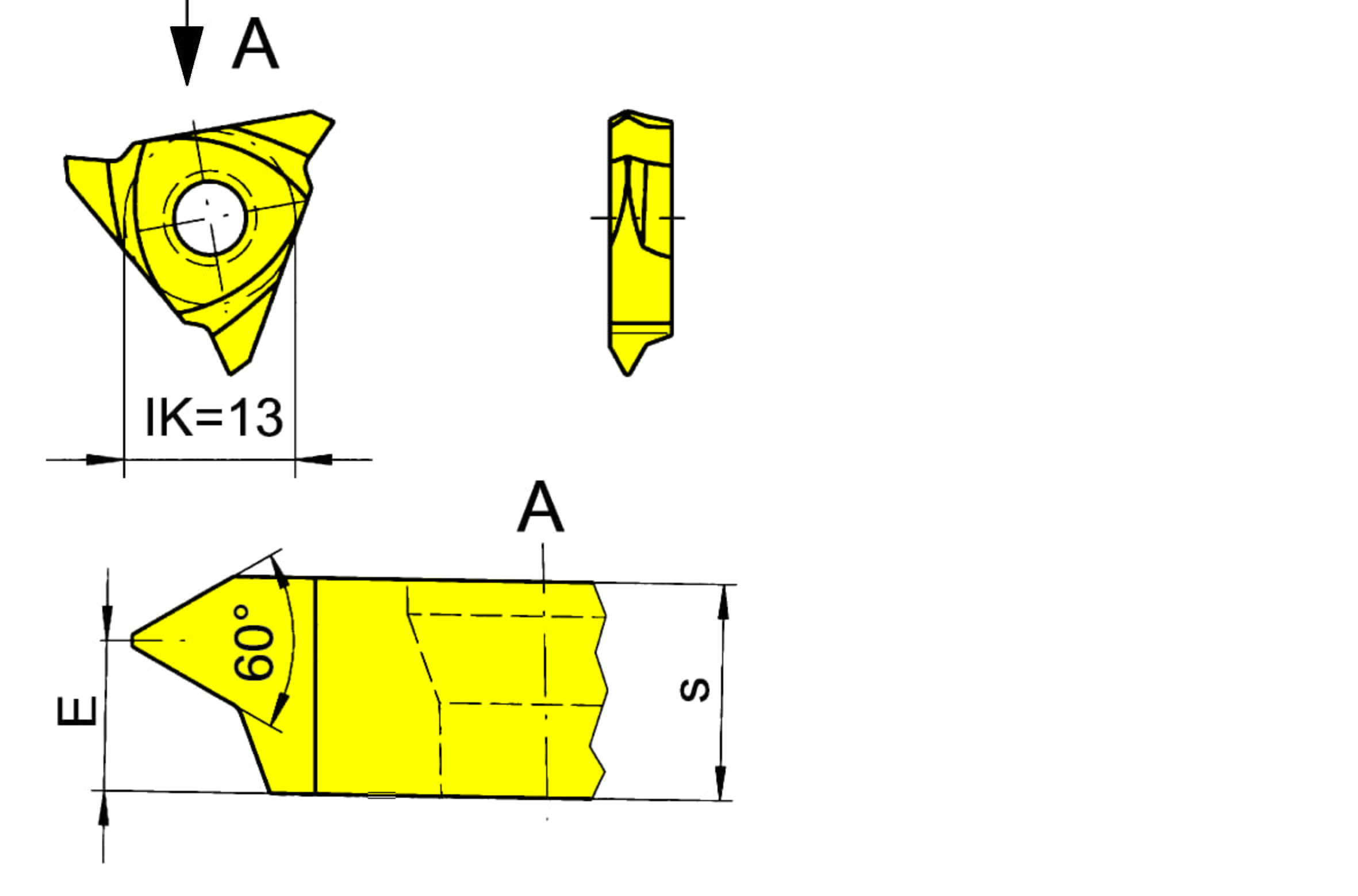

Setting length (E)

3.3 mm

Cutting insert height, Cutting insert thickness (s)

5.45 mm

Pitch (P)

1.5 mm

Maximum pitch (Pmax)

3.5 mm
