R314.MK50.20 AS45
Insert
Part number R314MK5020AS45

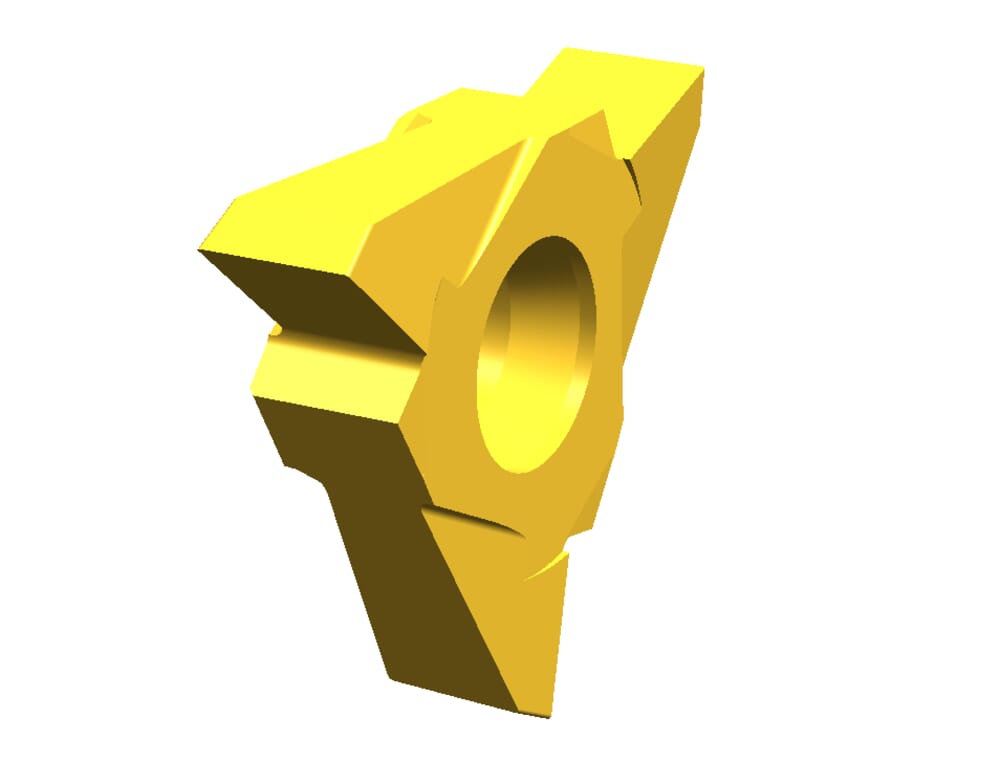

HORN Insert R314.MK50.20 AS45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314041101R$$$$$
DIN_SSC
HORN-314041101R
Katalog_SSC
314041R
Width of groove (w)
5
mm
Maximum milling depth/ depth of groove (tmax)
5
mm
Corner radius (r)
0.15
mm
Indexable insert thickness (s)
5.2
mm
| Downloads | |
|---|---|
| R314MK5020_20240117_001403240.STP | Download |
| R314MK5020_20210628_212632053.DXF | Download |
| Download all files | |
