R315.0050.32.00 TN32
Inserts
Part number R31500503200TN32

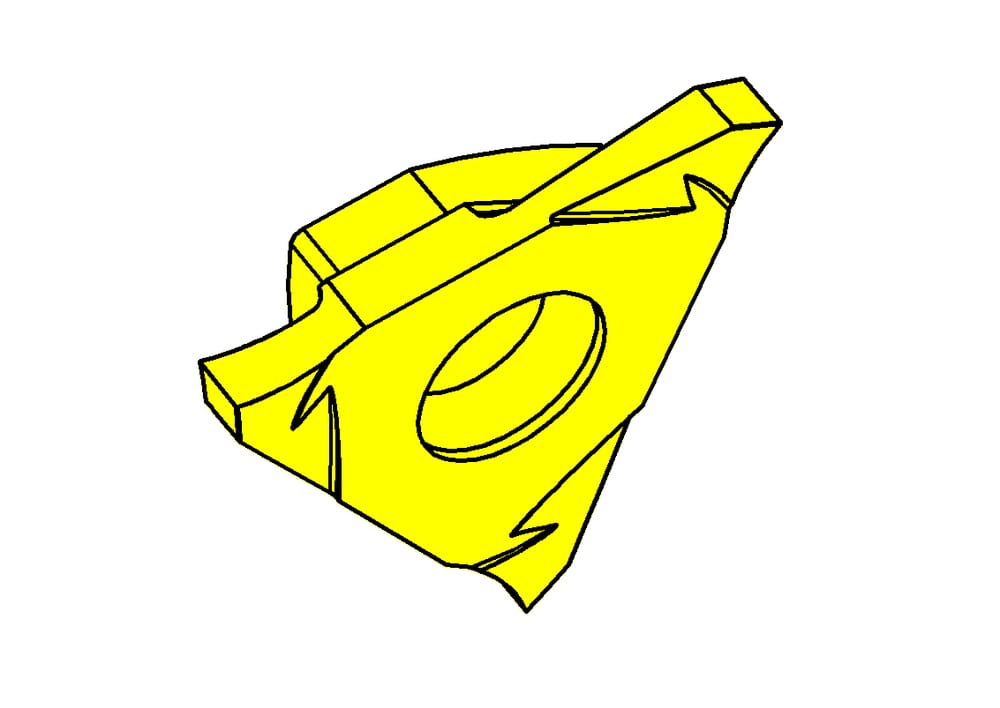

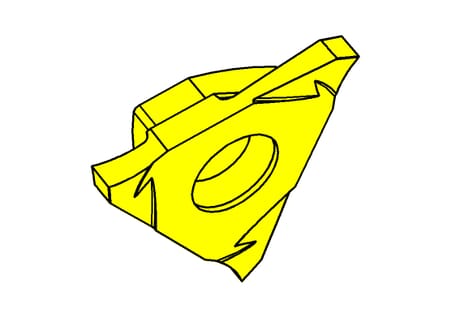

HORN Inserts R315.0050.32.00 TN32 for Turning
Please note:Technical instructions

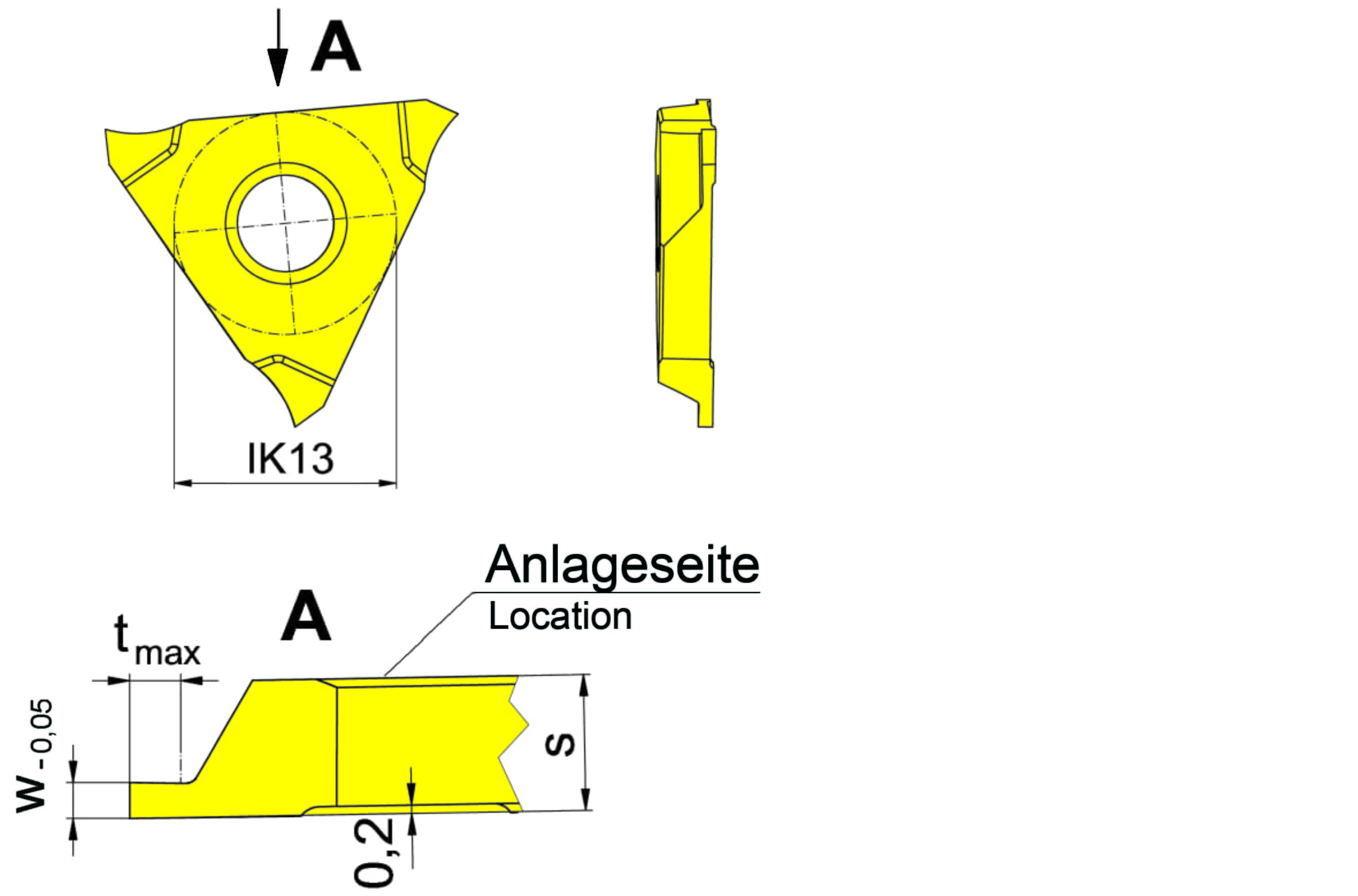

Maximum depth of groove (tmax)
0.7
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31503$051R$$$$$
DIN_SSC
HORN-31503051R
Katalog_SSC
31503R
Plating seat size (Größe)
3
Width of groove (w)
0.57
mm
Nominal range (Nw)
0.5
mm
Cutting insert width (s)
3.2
mm
| Downloads | |
|---|---|
| R31500503200_20240117_001658215.STP | Download |
| R31500503200.DXF | Download |
| Download all files | |
