R315.0200.04 AS42
insert
Part number R315020004AS42

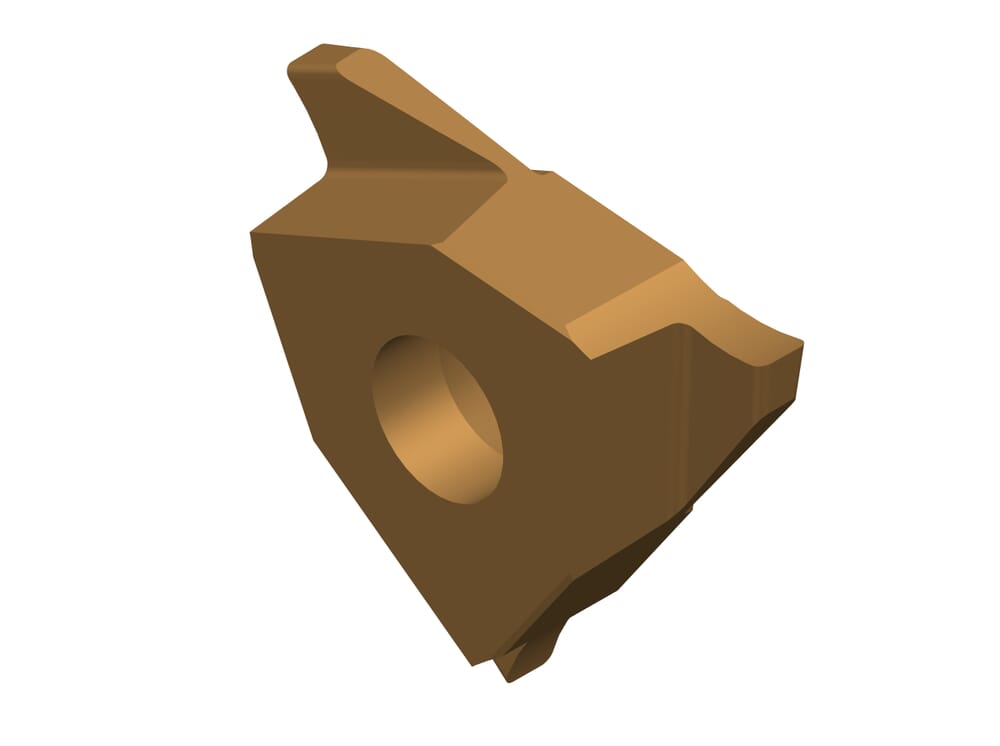

HORN insert R315.0200.04 AS42 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Width of groove (w)
2
mm
Cutting insert width (s)
5.4
mm
Corner radius (r)
0.4
mm
| Downloads | |
|---|---|
| R315020004_20240117_001938892.STP | Download |
| R315020004_20211124_140653003.DXF | Download |
| Download all files | |
