R315.0400.04 AS42
insert
Part number R315040004AS42

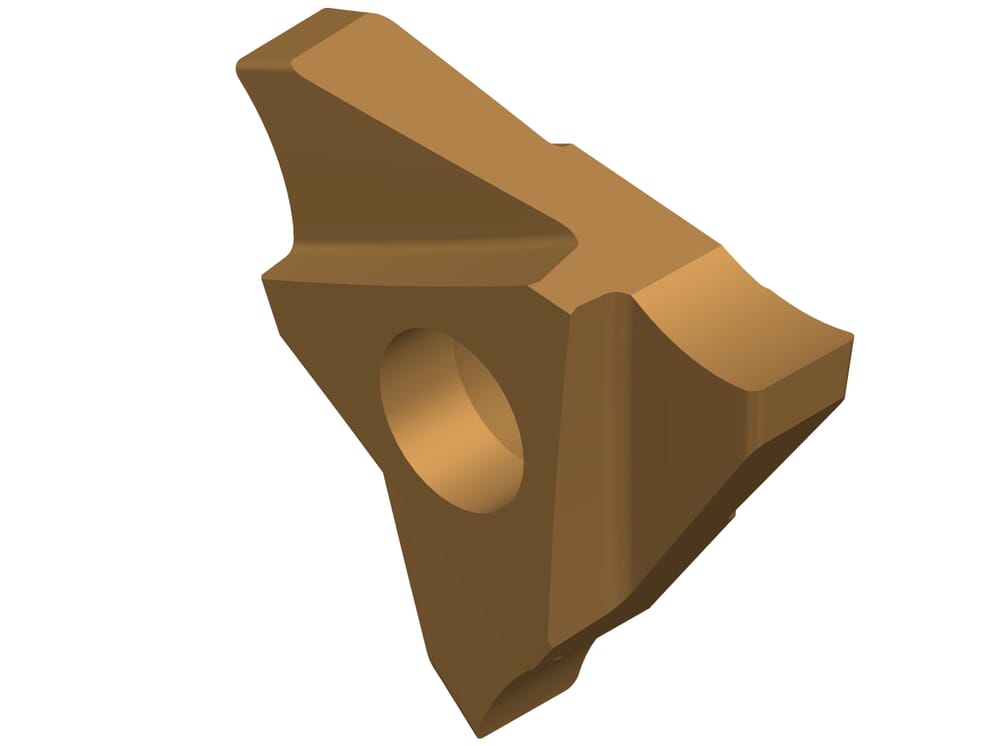

HORN insert R315.0400.04 AS42 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
5
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Width of groove (w)
4
mm
Cutting insert width (s)
5.4
mm
Corner radius (r)
0.4
mm
| Downloads | |
|---|---|
| R315040004_20230113_172950706.STP | Download |
| R315040004_20210628_213534549.DXF | Download |
| Download all files | |
