R315.2135.02 TN35
Inserts
Part number R315213502TN35

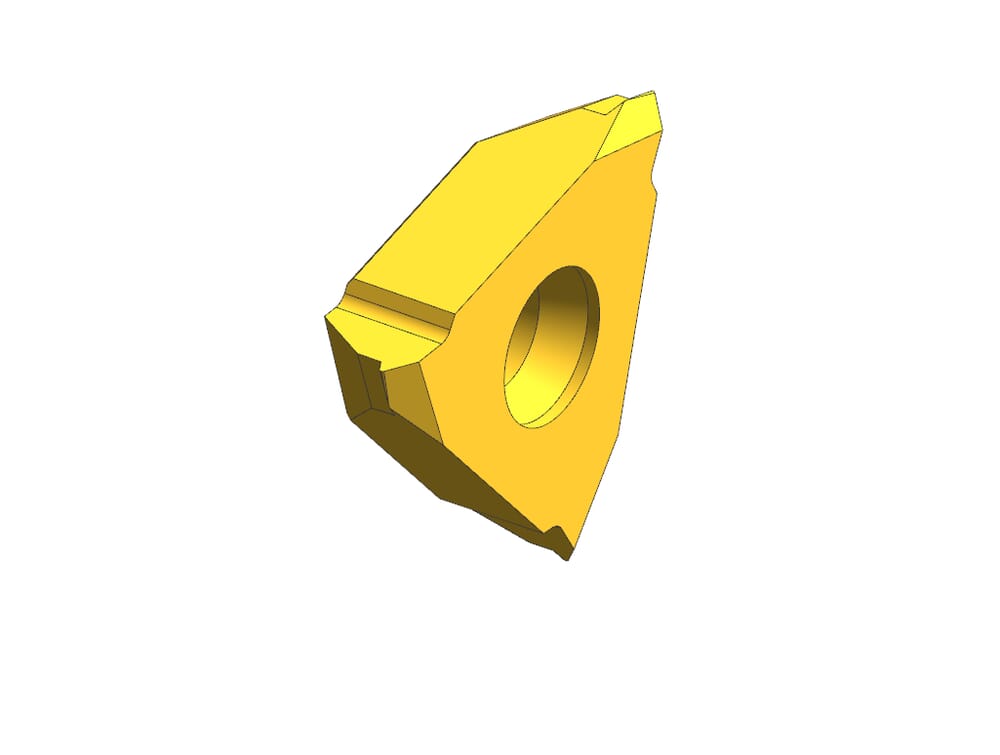

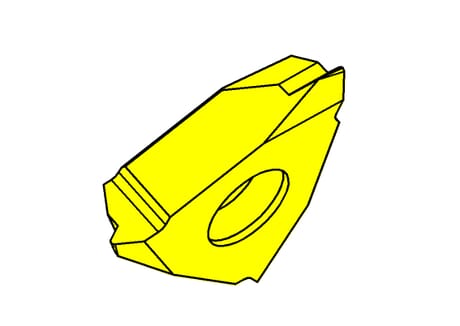

HORN Inserts R315.2135.02 TN35 for Gewinden
Please note:Technical instructions
eclass-shortcut
21-18-20-01
Pitch (P)
3.5
mm
smallest-bore-diameter-met
40
mm

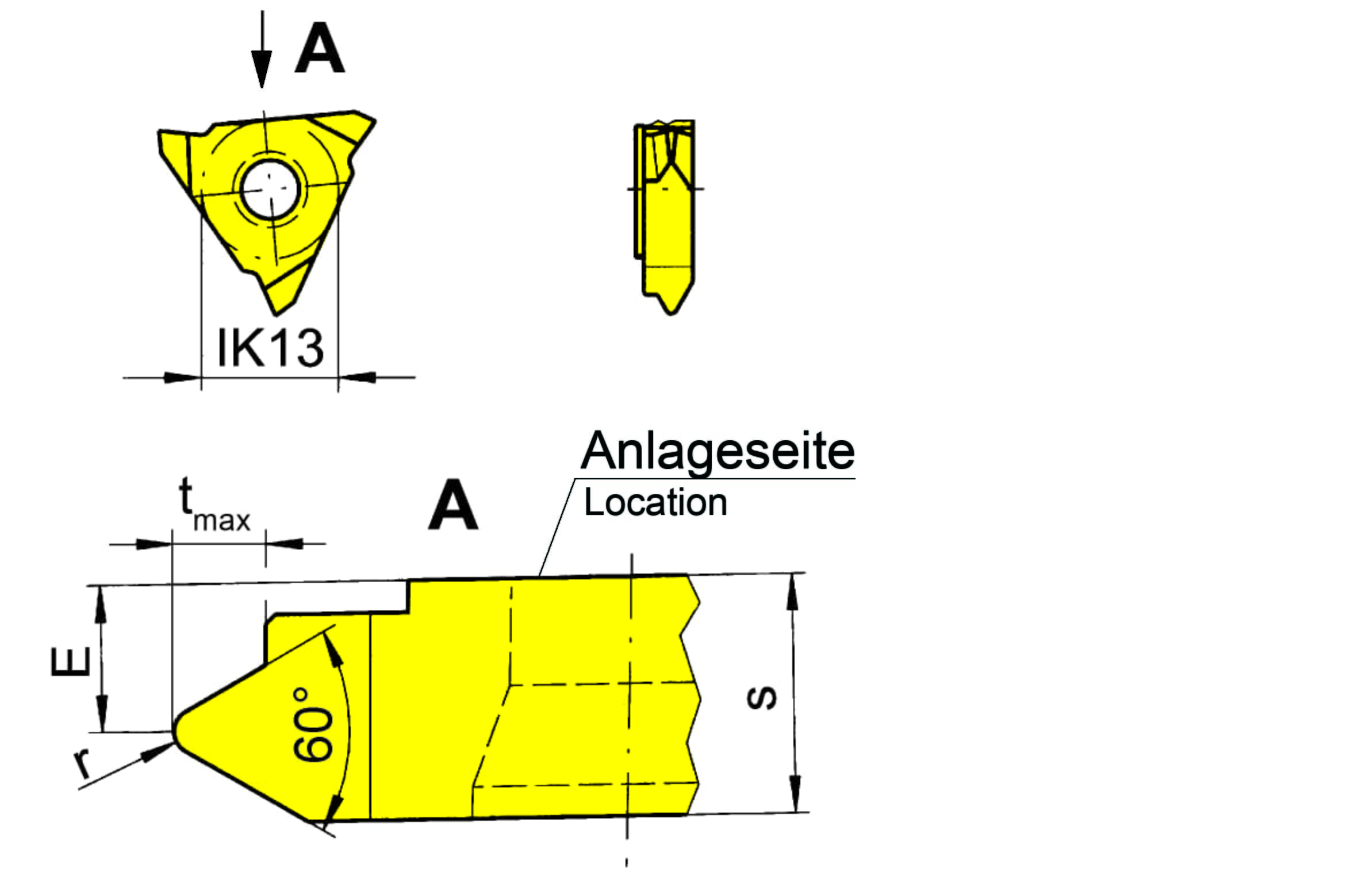

Cutting insert height, Cutting insert thickness (s)
5.45
mm
Setting length (E)
3.4
mm
Plating seat size (Größe)
5
Katalog_SSC
31505R
DIN_SSC
HORN-31505051R
ISO_SSC
HORN31505$051R$$$$$
Profile, thread depth (tmax)
2.15
mm
Top radius (r)
0.5
mm
width-at-the-base-of-the-thread-met
0.12
mm
number-of-teeth
3
St.
| Downloads | |
|---|---|
| R315213502_20240117_002847243.STP | Download |
| R315213502.DXF | Download |
| Download all files | |
