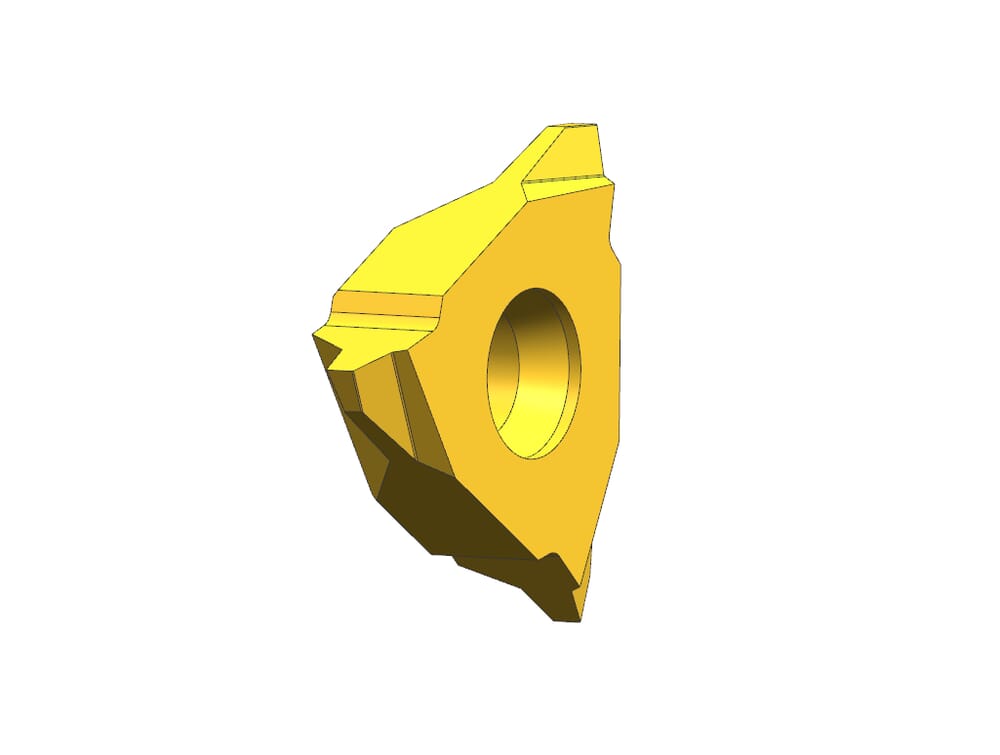

R315.2240.02 TN35

Inserts

Part number R315224002TN35

HORN Inserts R315.2240.02 TN35 for Gewinden

Pitch (P)

4 mm

Smallest bore diameter (Dmin)

43 mm

Cutting insert height, Cutting insert thickness (s)

5.45 mm

Setting length (E)

3.6 mm

Plating seat size (Größe)

Katalog_SSC

31505R

DIN_SSC

HORN-31505051R

ISO_SSC

HORN31505$051R$$$$$

eclass-shortcut

21-18-20-01

Profile, thread depth (h1)

2.25 mm

Width at the base of the thread (b)

1.33 mm

number-of-teeth

3 St.
