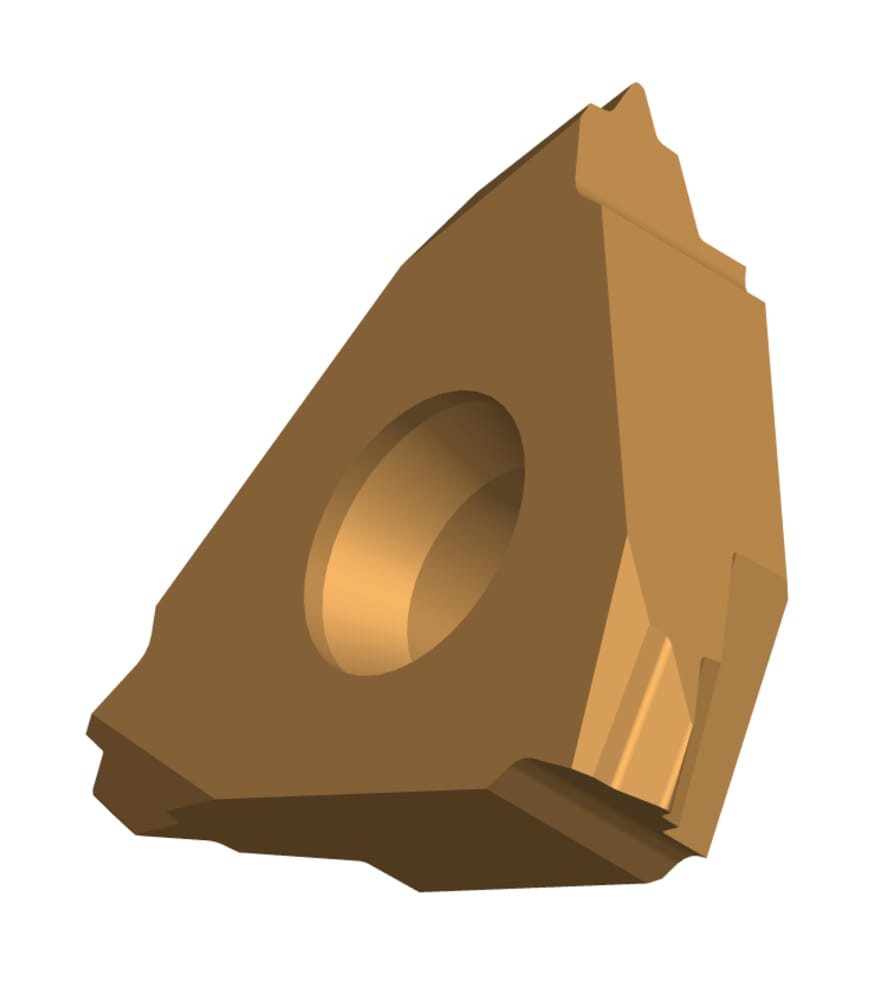

R315.5514.02 TH35
Insert
Part number R315551402TH35
HORN Insert R315.5514.02 TH35 for Gewinden
Please note:Technical instructions
Top radius (r)
0.23
mm
Threads per inch (TPI)
14
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Setting length (E)
3.75
mm
Cutting insert height, Cutting insert thickness (s)
5.45
mm
| Downloads | |
|---|---|
| R315551402_20240117_003046748.STP | Download |
| R315551402_20210628_214926162.DXF | Download |
| Download all files | |
