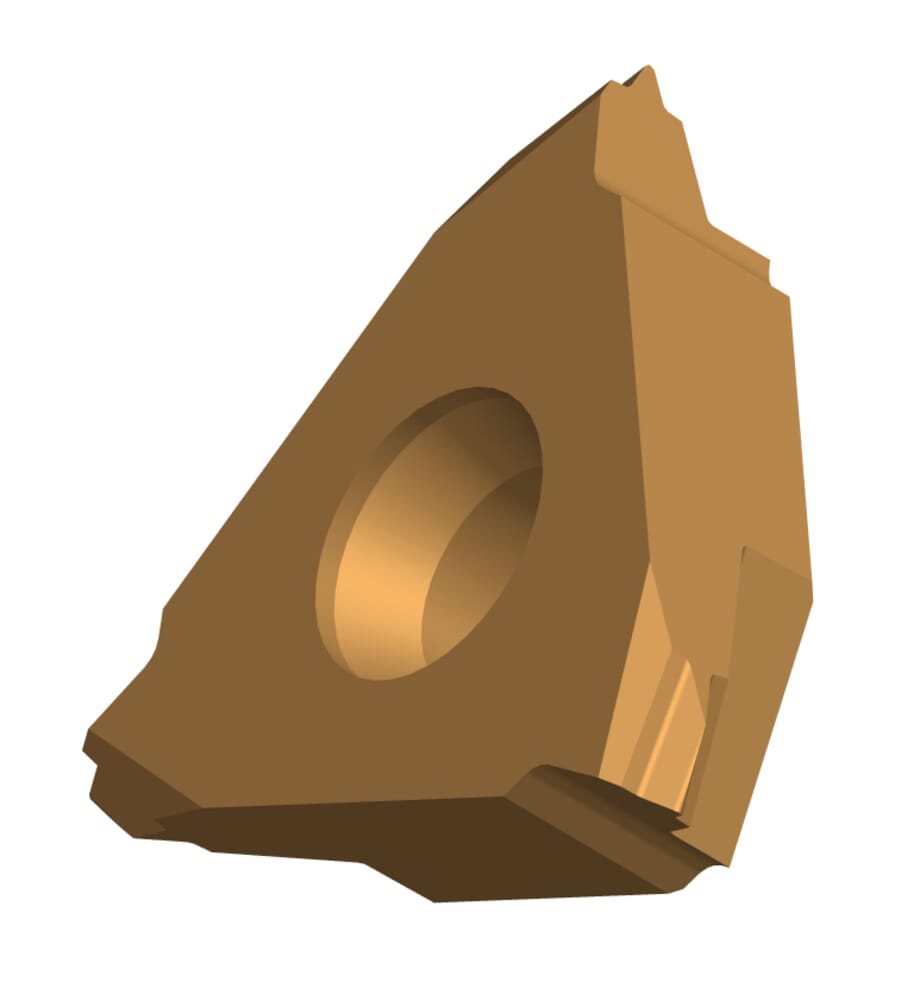

R315.5519.02 TH35
Insert
Part number R315551902TH35
HORN Insert R315.5519.02 TH35 for Gewinden
Please note:Technical instructions
Top radius (r)
0.17
mm
Threads per inch (TPI)
19
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Setting length (E)
4.05
mm
Cutting insert height, Cutting insert thickness (s)
5.45
mm
| Downloads | |
|---|---|
| R315551902_20240117_003050498.STP | Download |
| R315551902_20210628_214934412.DXF | Download |
| Download all files | |
