R315.FB30.02 H20
Insert
Part number R315FB3002H20

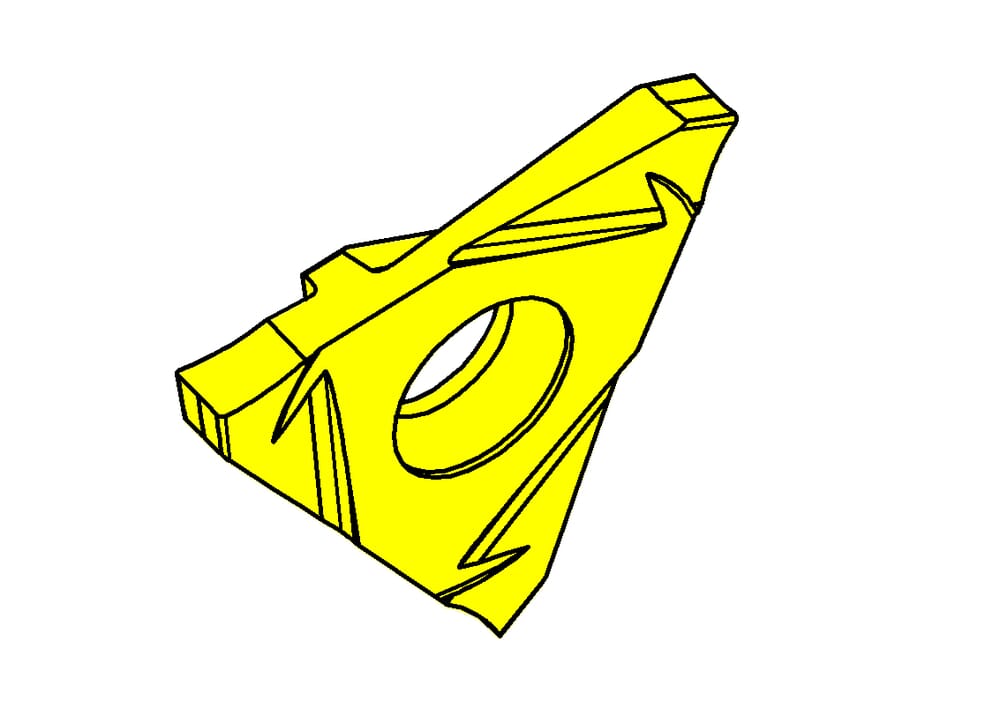

HORN Insert R315.FB30.02 H20 for Turning
Please note:Technical instructions

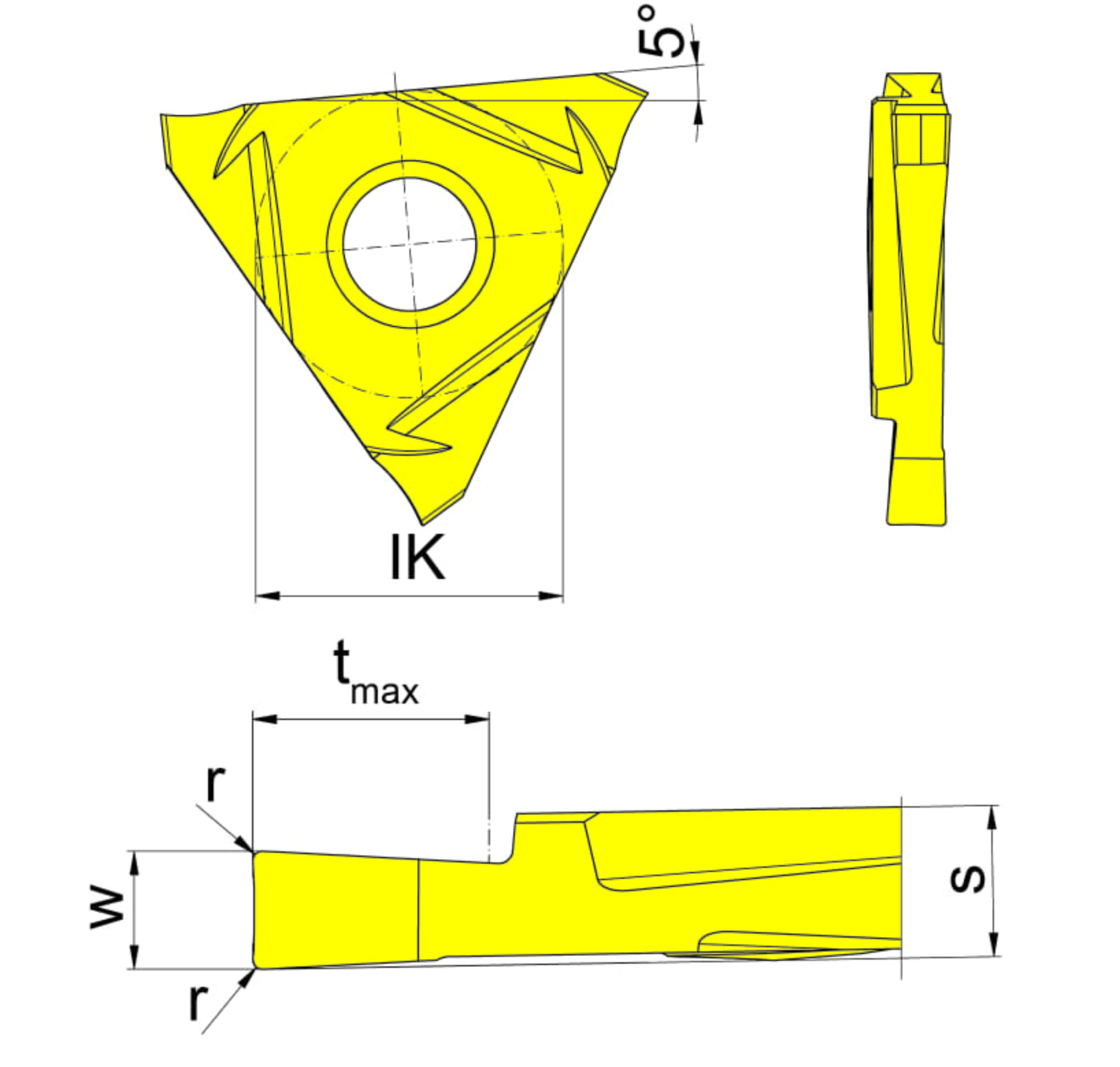

Maximum depth of groove (tmax)
5
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31503$051R$$$$$
DIN_SSC
HORN-31503051R
Katalog_SSC
31503R
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Cutting insert width (s)
3.2
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| R315FB3002_20240117_003125343.STP | Download |
| R315FB3002.DXF | Download |
| Download all files | |
