R356.2020.S.6.03.IK
Toolholder
Part number R3562020S603IK

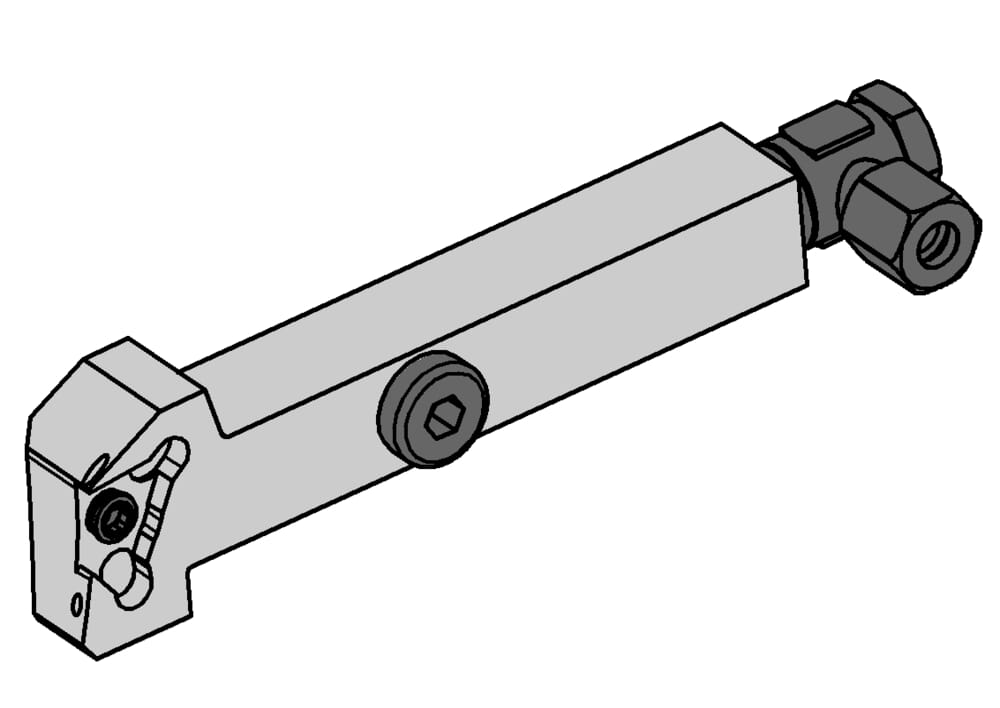

HORN Toolholder R356.2020.S.6.03.IK for Turning
Please note:Technical instructions

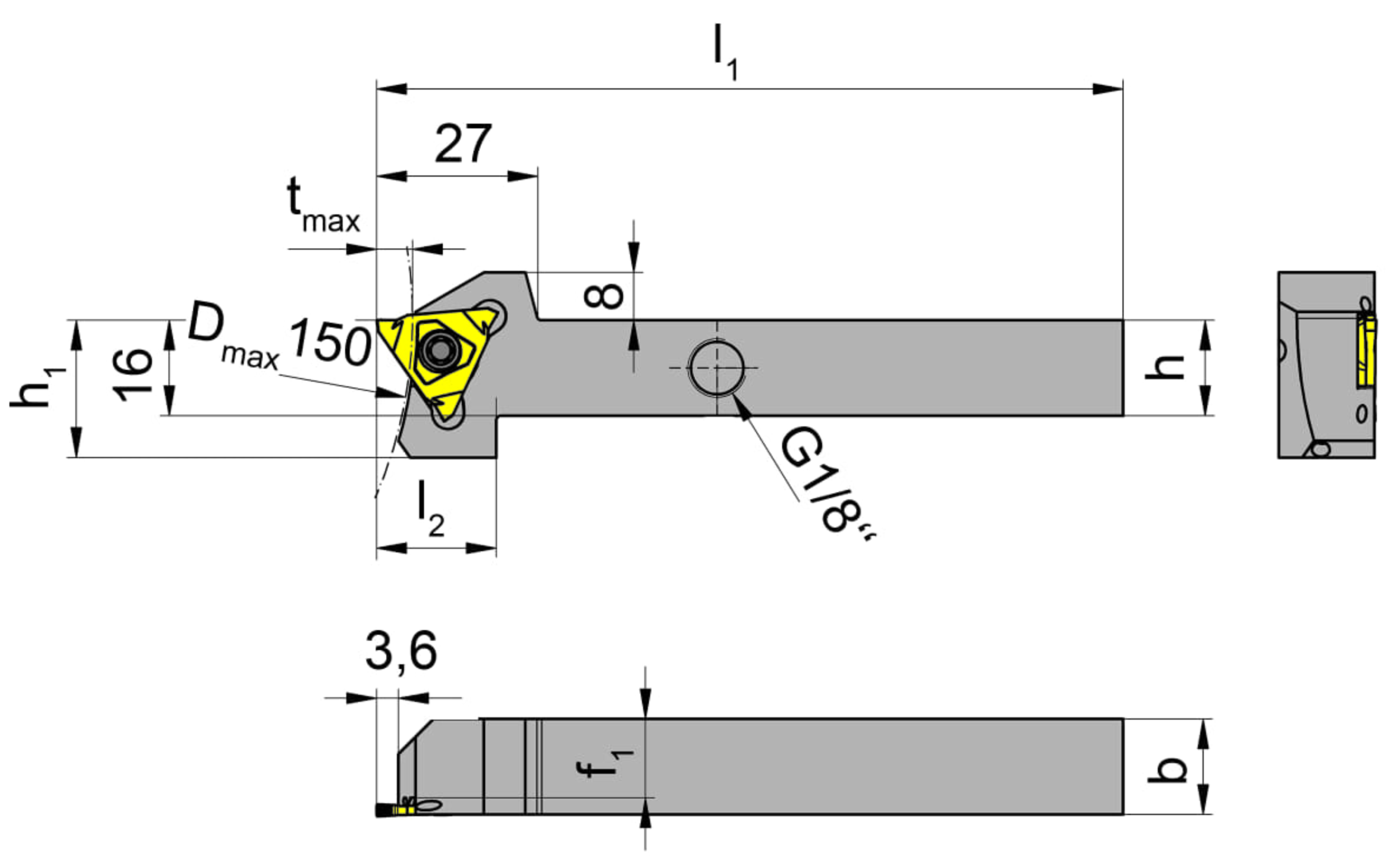

Head length (including cutting edge) (l2)
20
mm
plating-seat-size
3
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
S31503R
DIN_CCTWS
HORN-S31503051R
ISO_CCTWS
HORNS31503051R$$$$$
Adjustment dimension locating face insert (f1)
17.2
mm
Peak height (h1)
23
mm
Maximum depth of groove (tmax)
6
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| R3562020S603IK.STP | Download |
| Download all files | |
