R356.2525.45.03
Toolholder
Part number R35625254503
HORN Toolholder R356.2525.45.03 for Turning
Please note:Technical instructions

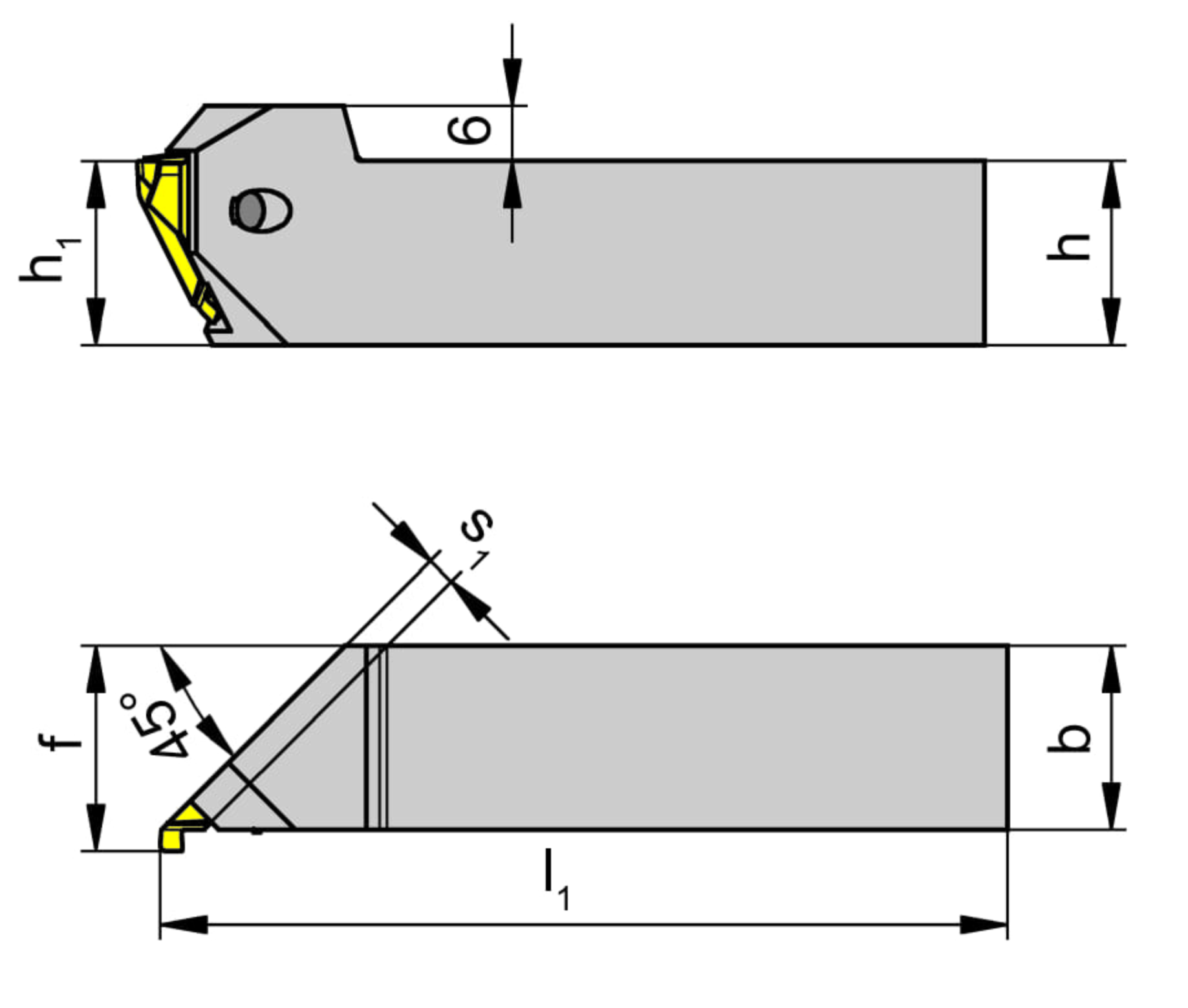

Peak height (h1)
25
mm
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
31503L
DIN_CCTWS
HOLN-31503051L
ISO_CCTWS
HOLN31503$051L$$$$$
eclass-shortcut
21-18-10-04
Insert width (s1)
3.25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension (f)
27.3
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R35625254503_20230113_171139756.STP | Download |
| R35625254503.DXF | Download |
| Download all files | |
