R360.00C6.K4

Toolholders

Part number R36000C6K4

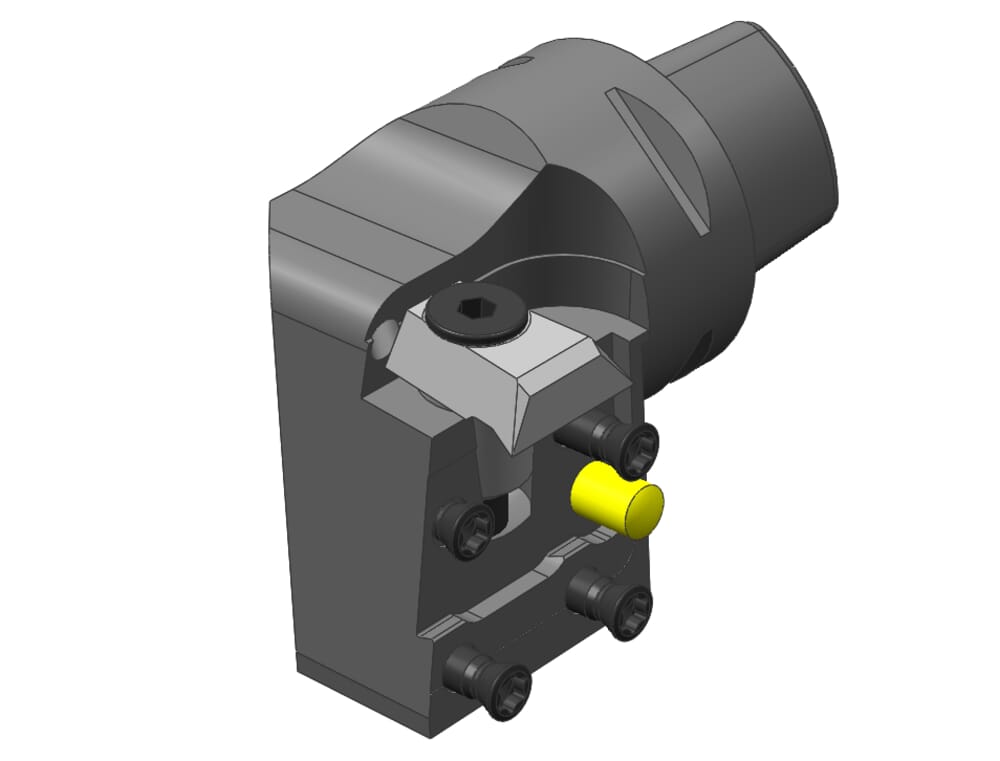

HORN Toolholders R360.00C6.K4 for Turning

eclass-shortcut

21-18-10-04

Clamping range maximum (Spannbereich)

6.3 mm

Clamping range minimum (Spannbereich)

3.9 mm

Length from stop (l1)

55 mm

ISO_CCTMS

CCS01C0630$$$$

DIN_CCTMS

CCS06300195

Katalog_CCTWS

31204N;31204R;31204L

DIN_CCTWS

HORN-31204000N;HORN-31204000R;HORN-31204000L

ISO_CCTWS

HORN-31204$000N$$$$$;HORN-31204$000R$$$$$;HORN-31204$000L$$$$$

Adjustment dimension (formula) (f)

f1+w-a1

Peak height (h1)

27.3 mm

Cutting insert center from the middle (f1)

26.8 mm

Maximum depth of groove (tmax)

6 mm

Adjustment dimension from center (f2)

32 mm

Bore diameter rotate (d1)

63 mm
