RA105.1025.2.2 TI25
Insert
Part number RA105102522TI25

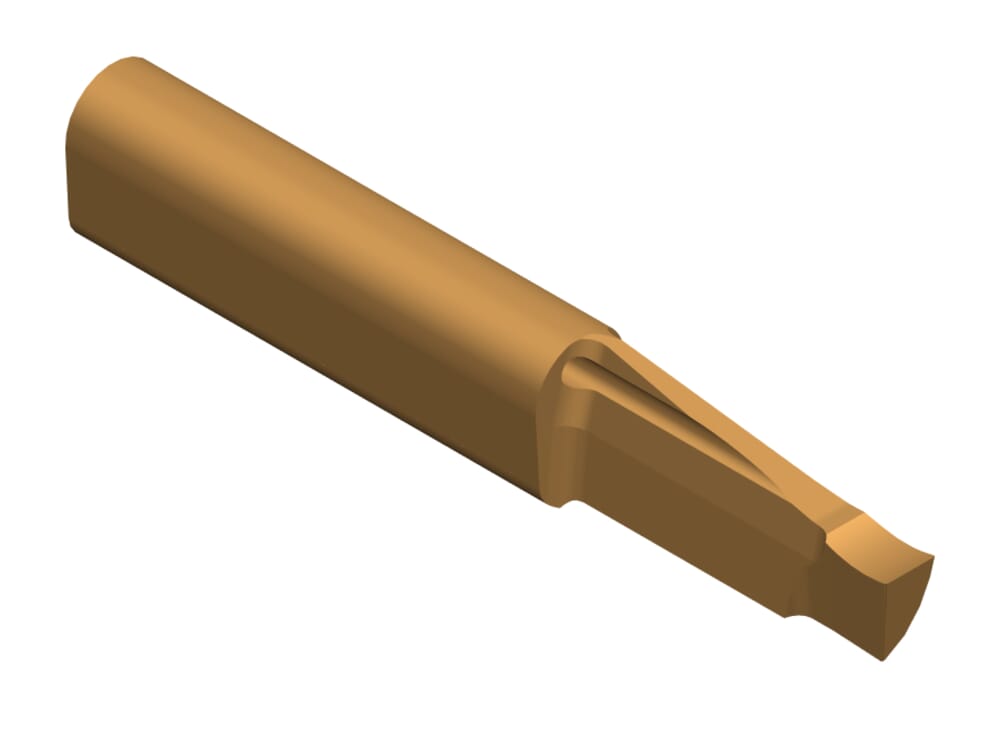

HORN Insert RA105.1025.2.2 TI25 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Total length (l5)
40
mm
Corner radius (r)
0.1
mm
Width of groove (w)
2.5
mm
Katalog_SSC
105225
DIN_SSC
HORN-10522595N
ISO_SSC
HORN105225$95N$$$$$
Smallest axial bore diameter (Da min)
10
mm
Maximum starting outside diameter (Da max)
45
mm
Maximum depth of groove (tmax a)
15
mm
Adjustment dimension cutting center (f)
1.6
mm
| Downloads | |
|---|---|
| RA105102522_20240607_132314582.STP | Download |
| RA105102522_20210628_223527614.DXF | Download |
| Download all files | |
