RB105.00C3.2.2.01

Toolholder

Part number RB10500C32201

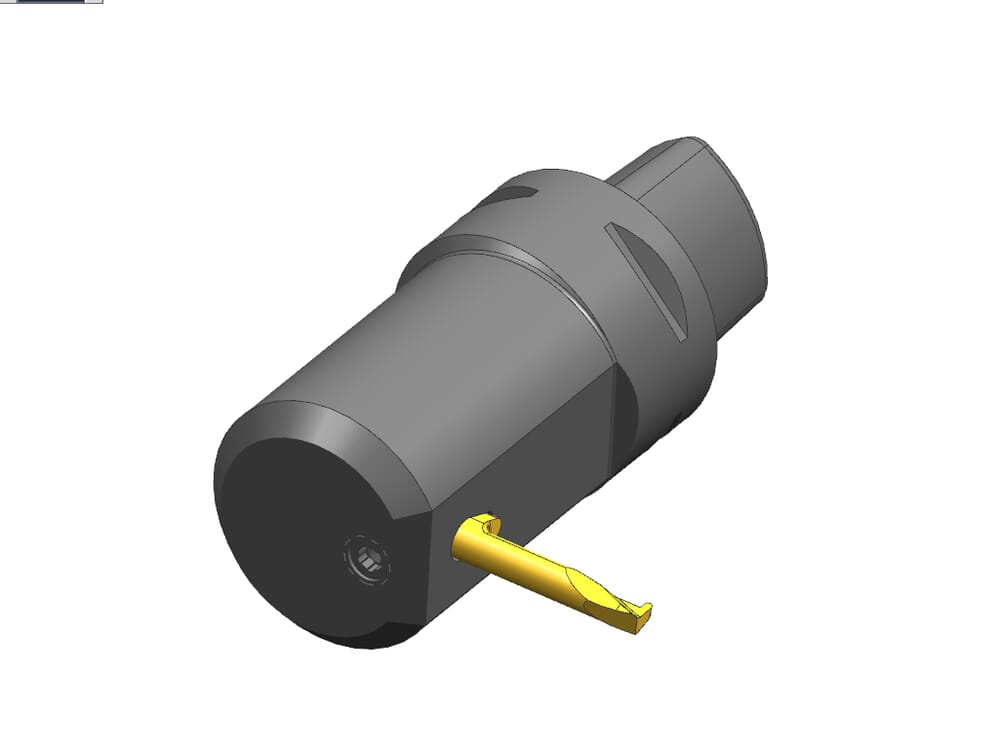

HORN Toolholder RB105.00C3.2.2.01 for Turning

Neck diameter (d)

30 mm

ISO_CCTMS

CCS01C0320$$$$

DIN_CCTMS

CCS03200195

Katalog_CCTWS

105123;105124;105125

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$

Length from stop to center insert (l4)

eclass-shortcut

21-18-10-05

Machine type (Maschinentyp)

INDEX MS32

Length from bore (l1)

55 mm

Bore diameter rotate (d1)

32 mm

Flange thickness (l3)

17 mm

Distance from center (b1)

14 mm
