RB105.00C4.2.2.01

Toolholder

Part number RB10500C42201

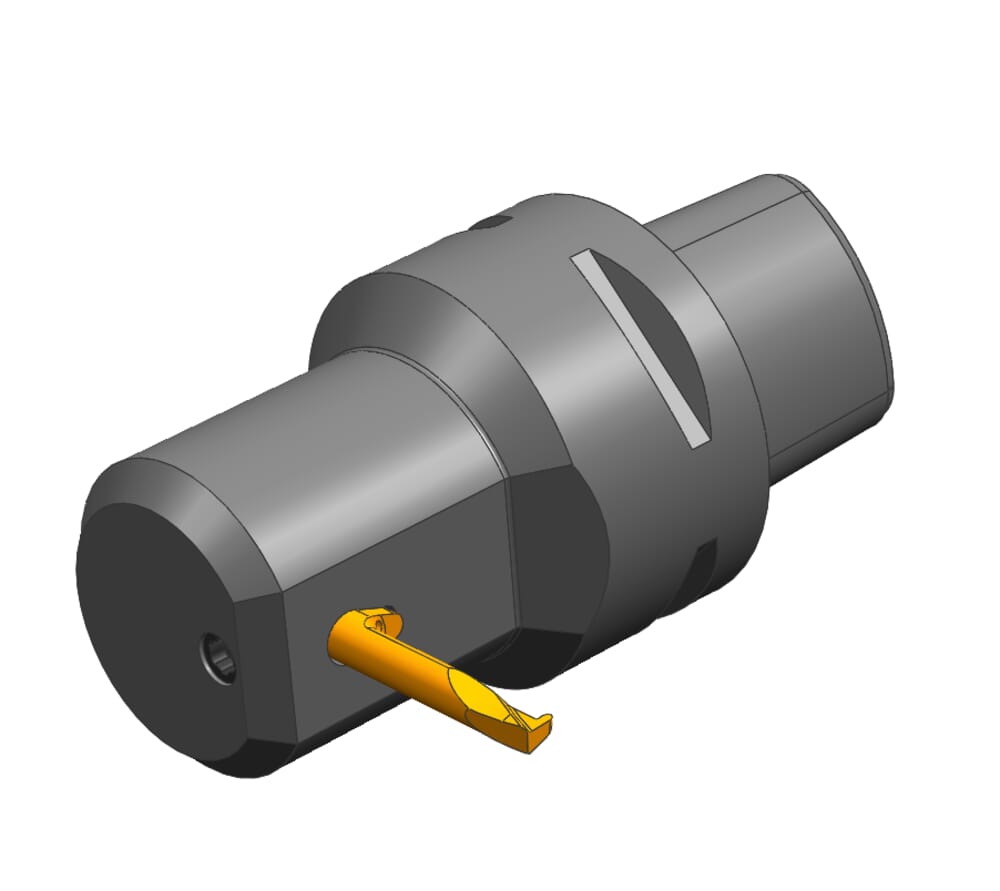

HORN Toolholder RB105.00C4.2.2.01 for Turning

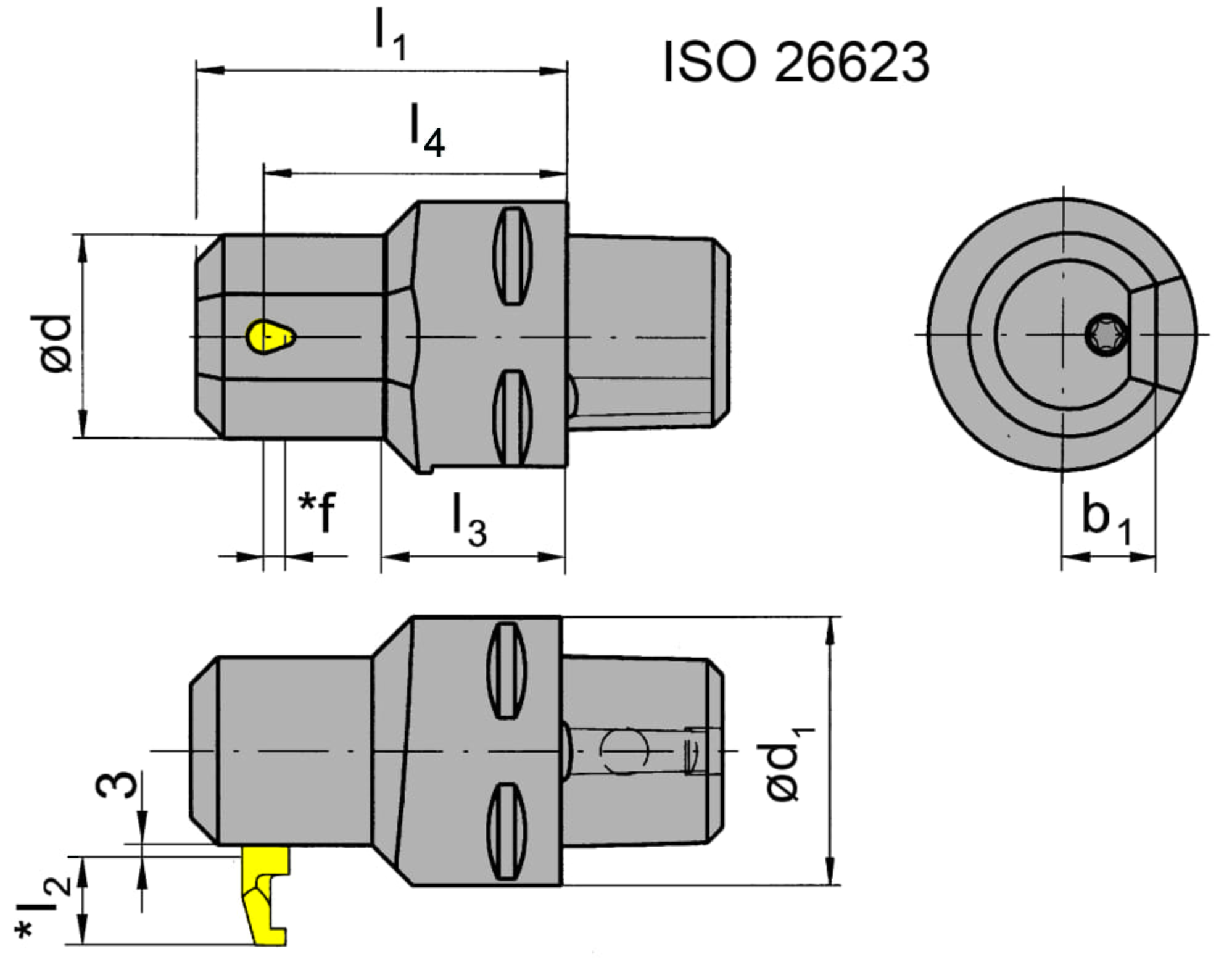

Neck diameter (d)

30 mm

ISO_CCTMS

CCS01C0400$$$$

DIN_CCTMS

CCS04000195

Katalog_CCTWS

105123;105124;105125

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$

Length from stop to center insert (l4)

45 mm

eclass-shortcut

21-18-10-05

Machine type (Maschinentyp)

INDEX MS52

Length from bore (l1)

55 mm

Bore diameter rotate (d1)

40 mm

Flange thickness (l3)

26 mm

Distance from center (b1)

14 mm
