RB105.00C6.20.1.02
Toolholder
Part number RB10500C620102

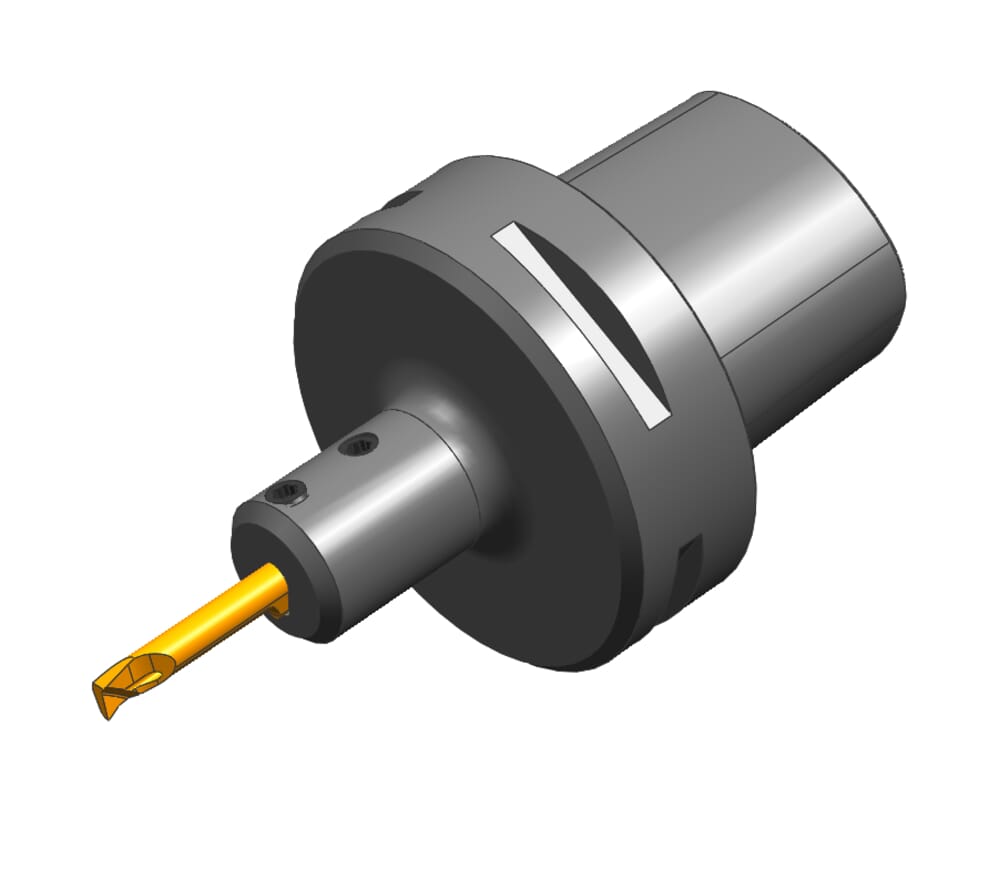

HORN Toolholder RB105.00C6.20.1.02 for Turning
Please note:Technical instructions
Bore diameter rotate (d1)
63
mm
Length from bore (l1)
52
mm
Working length, Extension length (l2)
30
mm
eclass-shortcut
21-18-10-05
ISO_CCTWS
HORN105225$95N$$$$$
DIN_CCTWS
HORN-10522595N
Katalog_CCTWS
105225
DIN_CCTMS
CCS06300195
ISO_CCTMS
CCS01C0630$$$$
Neck diameter (d2)
20
mm
| Downloads | |
|---|---|
| RB105_00C6_20_1_02.STP | Download |
| RB10500C620102_20210628_234739824.DXF | Download |
| Download all files | |
