RB109.0016.14.2
Toolholder
Part number RB1090016142

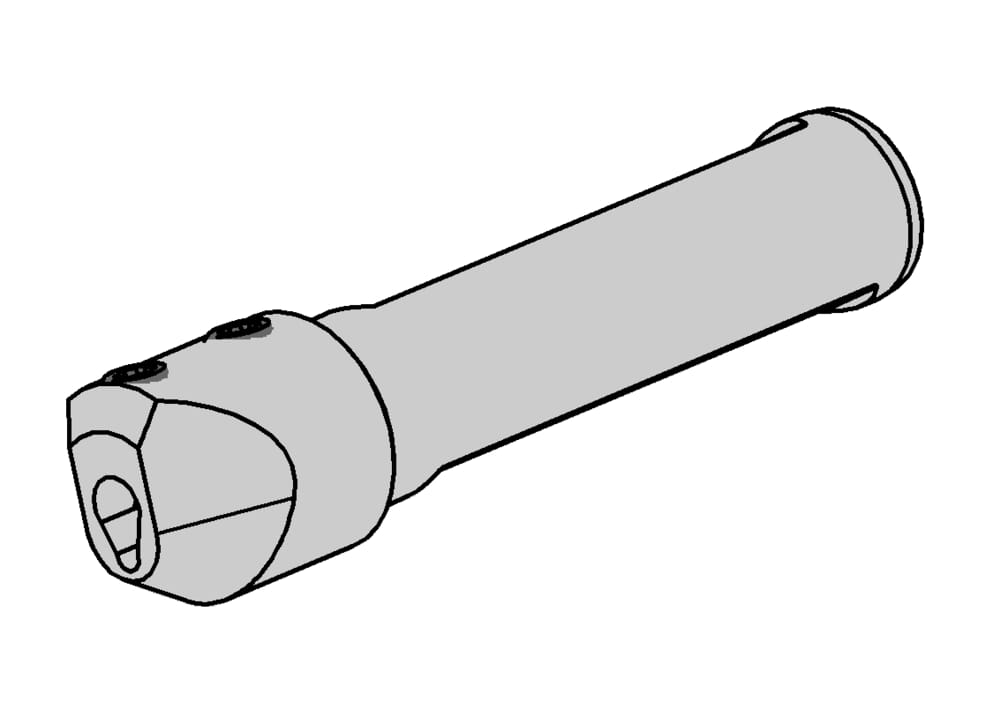

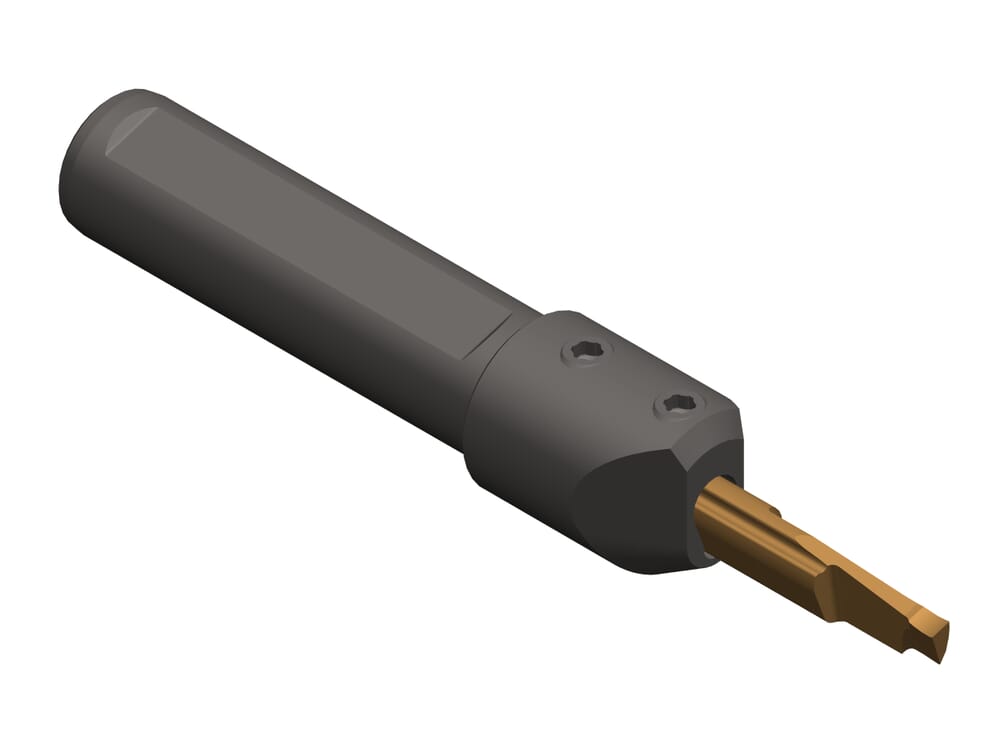

HORN Toolholder RB109.0016.14.2 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL23G1600$$$$
DIN_CCTMS
ZYL01602315
Katalog_CCTWS
109240
DIN_CCTWS
HORN-10924095N
ISO_CCTWS
HORN109240$95N$$$$$
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$

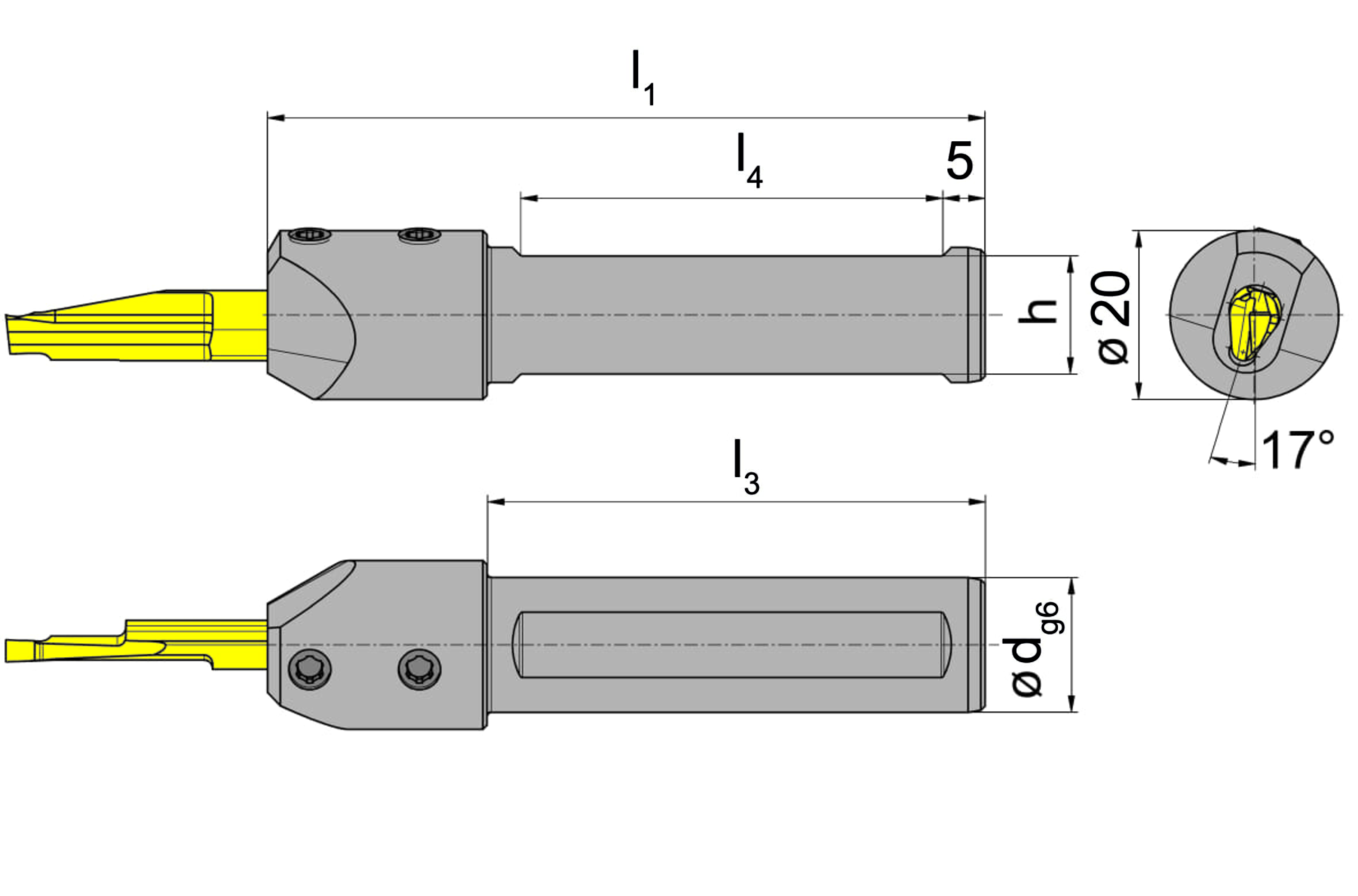

Shank, clamping diameter (d)
16
Maximum clamping length (l3)
59
mm
Length of clamping surface(s) (l4)
50
mm
Height clamping surface(s) (h)
14
mm
Total length (without cutting insert) (l1)
85
mm
