RB224.6020.0.06
Toolholder
Part number RB2246020006

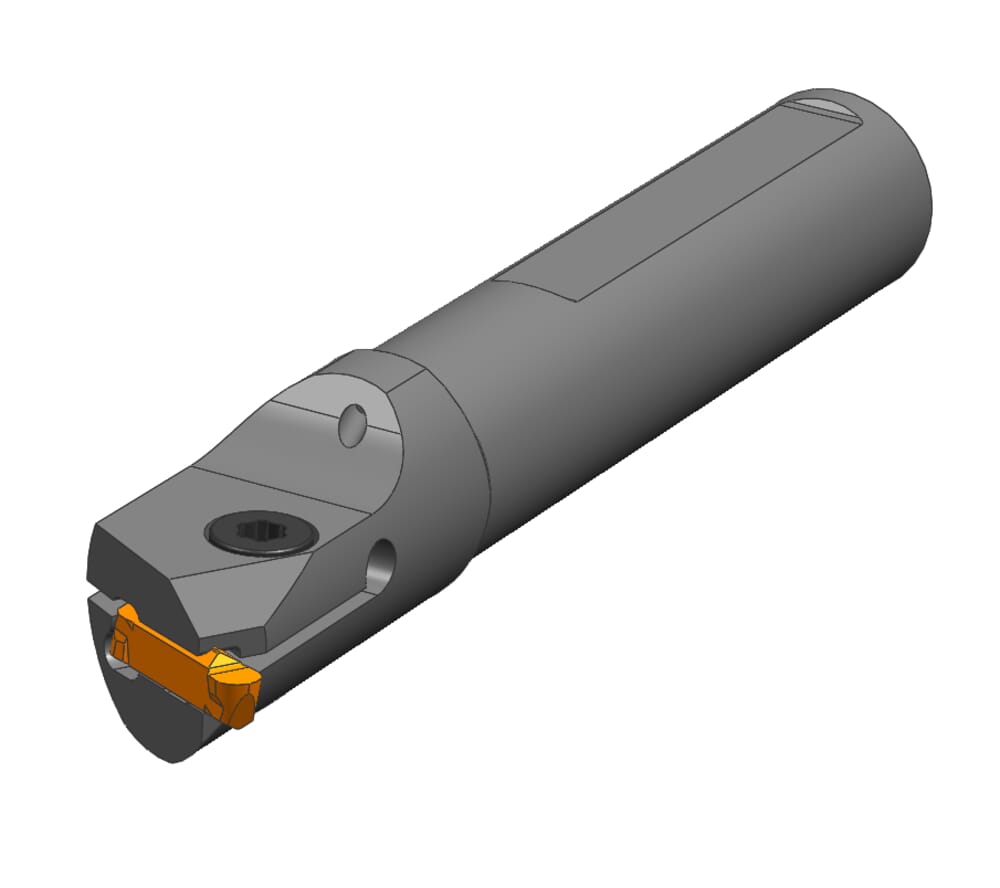

HORN Toolholder RB224.6020.0.06 for Turning
Please note:Technical instructions
Clamping diameter (d)
20
mm
Cutting width minimum (Schneidbreite)
4.4
mm
Cutting width maximum (Schneidbreite)
6.1
mm
ISO_CCTMS
ZYL23G2000$$$$
DIN_CCTMS
ZYL02002315
Katalog_CCTWS
224058;224068
DIN_CCTWS
HORN-224050058N;HORN-224060058N
ISO_CCTWS
HORN224050058N$$$$$;HORN224060058N$$$$$
eclass-shortcut
21-18-10-05
Minimum drilling diameter (Dmin)
25
mm
Maximum freestanding depth (C)
3
mm
Head diameter (d1)
23.5
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension (f)
13.5
mm
Distance of clamping surface (s) (h)
18
mm
