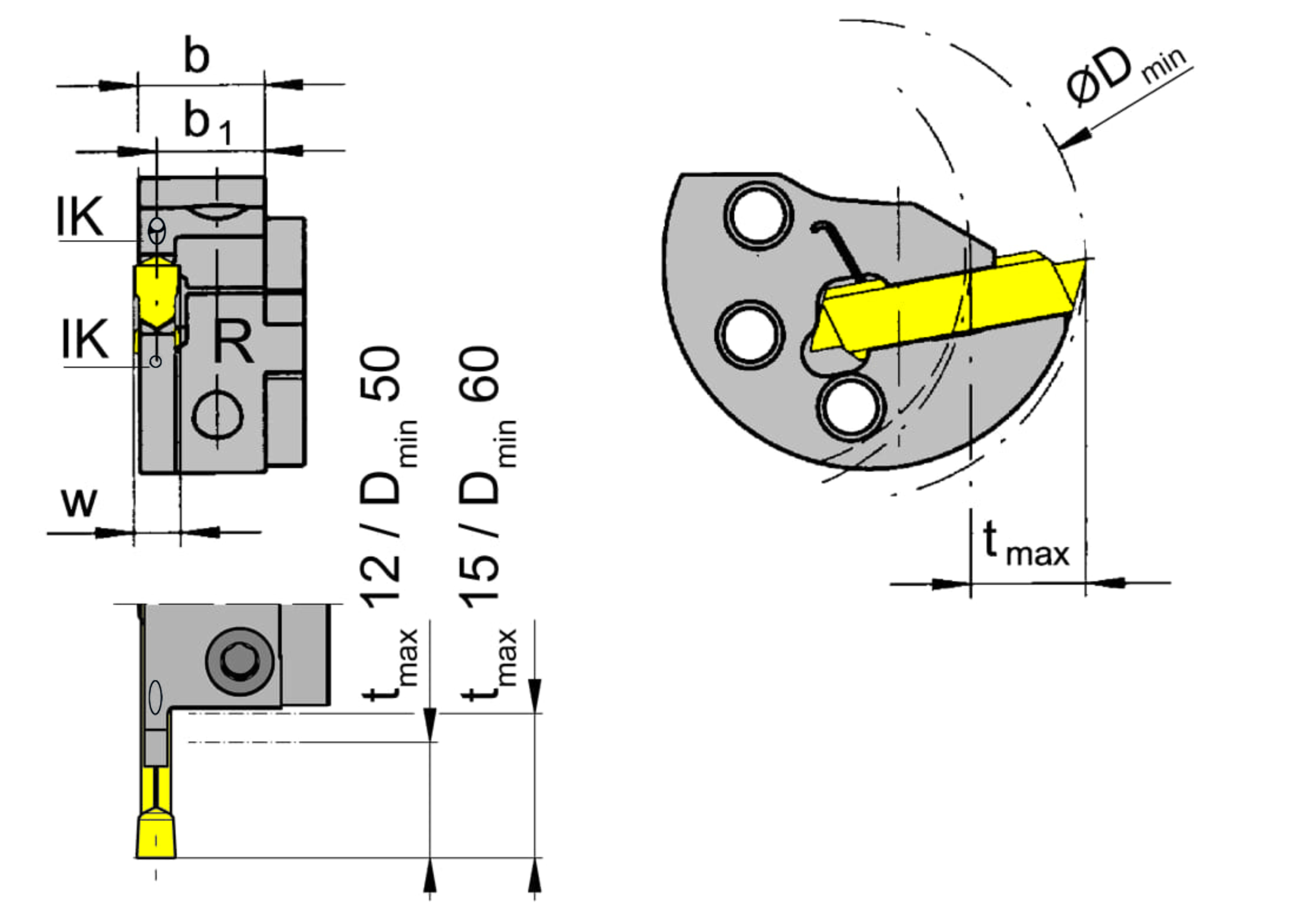

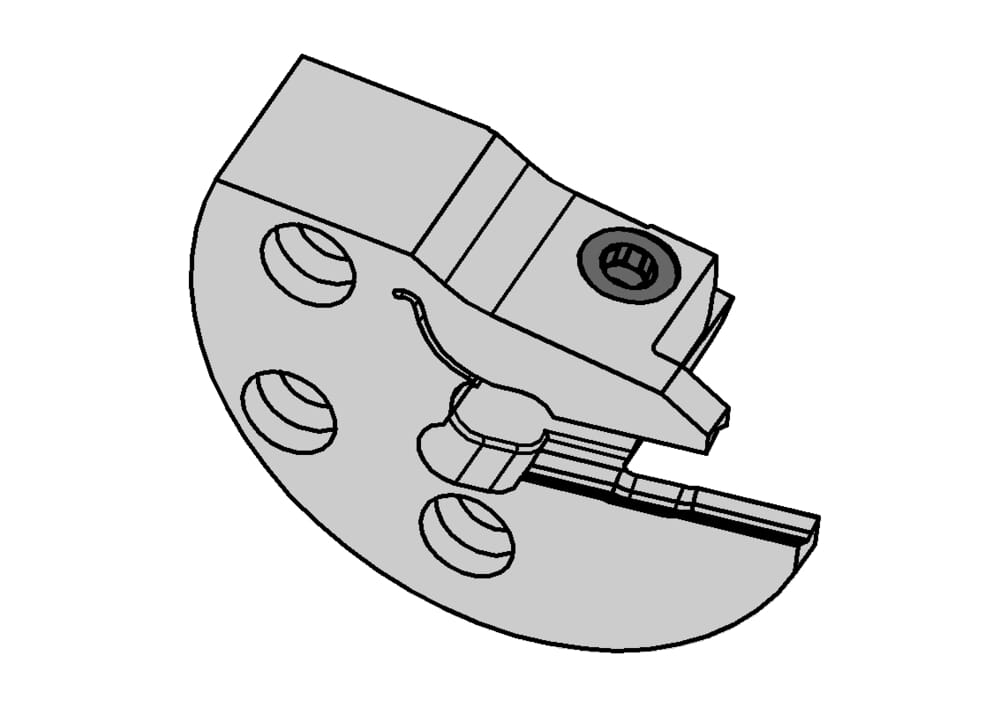

RBK229.0050.03.IK
Cartridge
Part number RBK229005003IK
HORN Cartridge RBK229.0050.03.IK for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
3
mm
Plating seat size (Größe)
3
Katalog_CCTMS
BK2291
ISO_CCTMS
HORNBK229193$$;HORNBK229183$$
DIN_CCTMS
HORN-BK229193;HORN-BK229183
Katalog_CCTWS
229030
DIN_CCTWS
HORN-229030108N
ISO_CCTWS
HORN229030108N$$$$$
drilling-diameter-max-met
60
mm
Clamping range maximum (Spannbereich)
4
mm
eclass-shortcut
21-18-10-90
drilling-diameter-min-met
50
mm
depth-of-groove-max-met
12
mm
insertion-depth-max-met
15
mm
Adjustment dimension cutting center (b1)
13
mm
Width (b)
14.2
mm
| Downloads | |
|---|---|
| RBK229_0050_03_20171121_180412044.STP | Download |
| RBK229005003IK_20210629_004539666.DXF | Download |
| Download all files | |
