Toolholder

ABSTECHEN_20210506_153854505.EPS

AUSSEN_EINSTECHEN.EPS

Part number RH10012121316

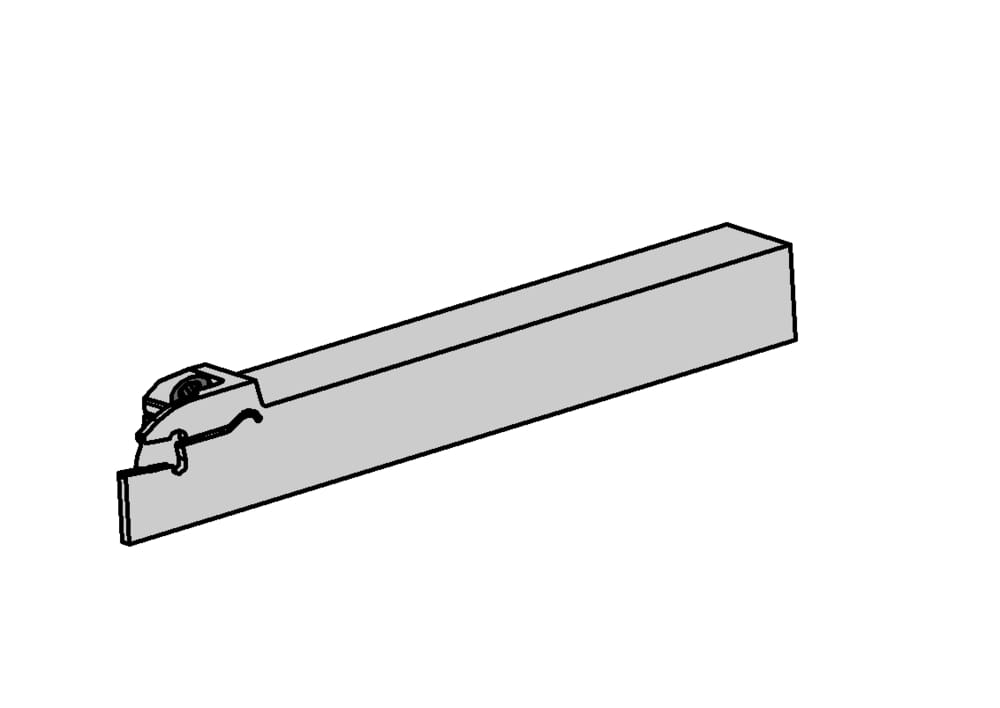

HORN Toolholder RH100.1212.13.16 for Turning

Please note:Technical instructions

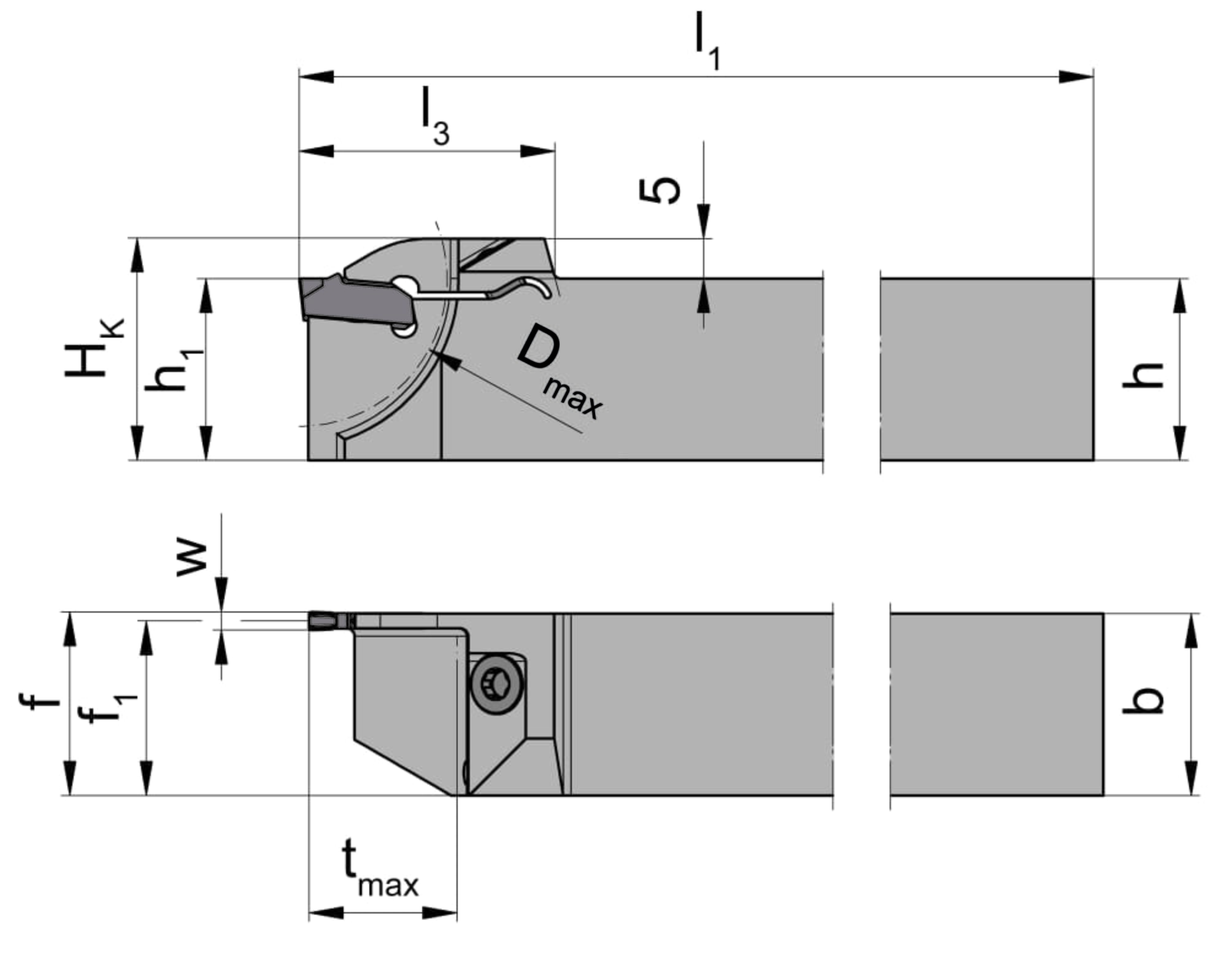

Maximum insertion depth (tmax)

13 mm

ISO_CCTMS

VKT01A1212$$$$

DIN_CCTMS

VKT12120105

Katalog_CCTWS

100268

DIN_CCTWS

HORN-100260058N

ISO_CCTWS

HORN100260058N$$$$$

Head length top (including cutting edge) (l3)

22.5 mm

Adjustment dimension (formula) (f)

f1+w/2

Peak height (h1)

12 mm

workpiece-diameter-max-met

26 mm

Head height (HK)

15.5 mm

Shank height (h)

12 mm

size

26

Total length (including cutting insert) (l1)

125 mm

Adjustment dimension cutting center (f1)

11.35 mm

Shank width (b)

12 mm
