RH224.1212.20.62.IK
Toolholder
Part number RH22412122062IK

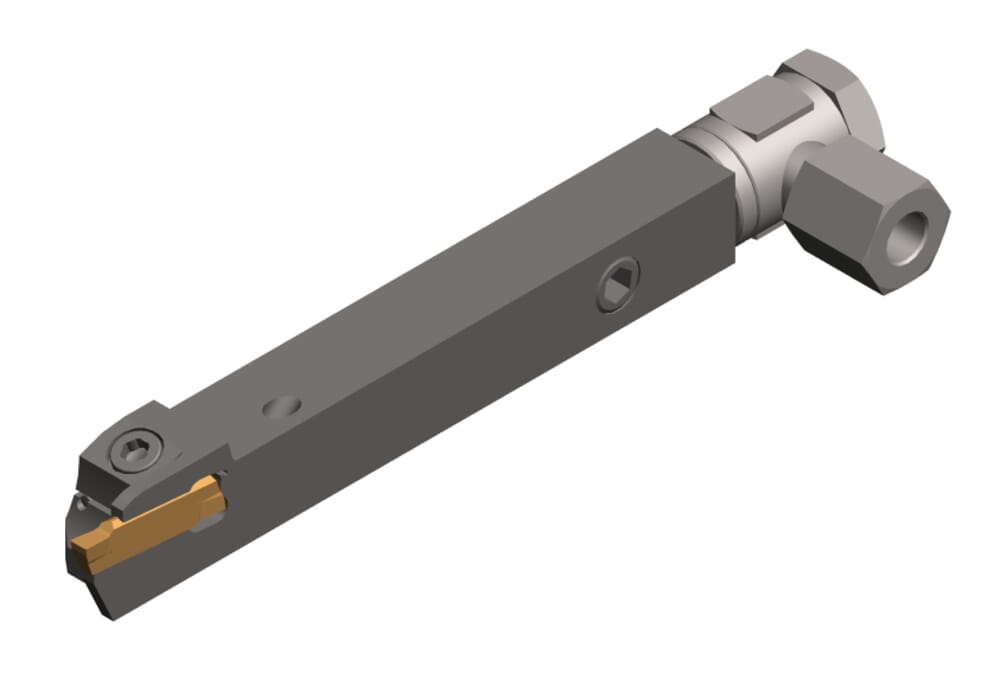

HORN Toolholder RH224.1212.20.62.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Width of groove (w)
2.5
mm
Plating seat size (Größe)
2
ISO_CCTMS
VKT01A1212$$$$
DIN_CCTMS
VKT12120115
Katalog_CCTWS
224028
DIN_CCTWS
HORN-224020058N
ISO_CCTWS
HORN224020058N$$$$$
Head length top (including cutting edge) (l3)
23
mm
Adjustment dimension (formula) (f)
f1+w/2
Clamping range maximum (Spannbereich)
2.8
mm
Clamping range minimum (Spannbereich)
2.4
mm
Peak height (h1)
12
mm
Maximum workpiece diameter (Dmax)
21
mm
Maximum insertion depth (tmax)
10.5
mm
Shank height (h)
12
mm
Total length (including cutting insert) (l1)
100
mm
Adjustment dimension cutting center (f1)
0.9
mm
Shank width (b)
12
mm
| Downloads | |
|---|---|
| RH224_1212_20_62_IK.STP | Download |
| RH22412122062IK_20210627_084533147.DXF | Download |
| Download all files | |
