RH224.1212.61.IK
Toolholder
Part number RH224121261IK

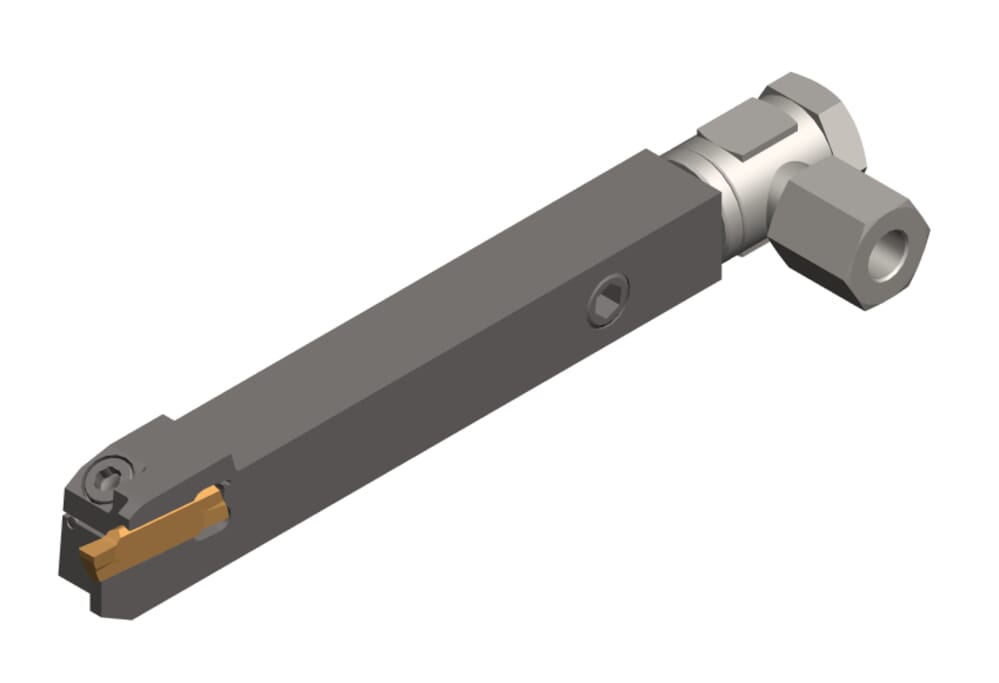

HORN Toolholder RH224.1212.61.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Width of groove (w)
2
mm
Plating seat size (Größe)
1
ISO_CCTMS
VKT01A1212$$$$
DIN_CCTMS
VKT12120115
Katalog_CCTWS
224018
DIN_CCTWS
HORN-224010058N
ISO_CCTWS
HORN224010058N$$$$$
Adjustment dimension (formula) (f)
f1+w/2
Clamping range maximum (Spannbereich)
2.4
mm
Clamping range minimum (Spannbereich)
2
mm
Peak height (h1)
12
mm
Maximum workpiece diameter (Dmax)
100
mm
Maximum insertion depth (tmax)
7
mm
Shank height (h)
12
mm
Total length (including cutting insert) (l1)
100
mm
Adjustment dimension cutting center (f1)
0.7
mm
Shank width (b)
12
mm
| Downloads | |
|---|---|
| RH224_1212_61_IK.STP | Download |
| RH224121261IK_20210627_084711414.DXF | Download |
| Download all files | |
