RH224.1616.62.IK
Toolholder
Part number RH224161662IK

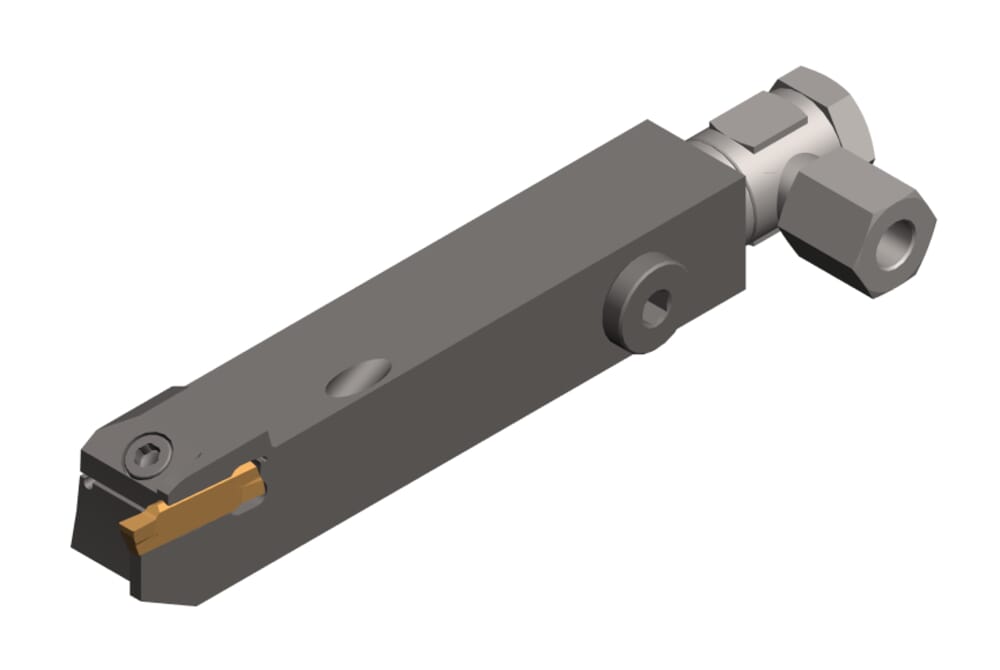

HORN Toolholder RH224.1616.62.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Width of groove (w)
2.5
mm
Plating seat size (Größe)
2
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
224028
DIN_CCTWS
HORN-224020058N
ISO_CCTWS
HORN224020058N$$$$$
Adjustment dimension (formula) (f)
f1+w/2
Clamping range maximum (Spannbereich)
2.8
mm
Clamping range minimum (Spannbereich)
2.4
mm
Peak height (h1)
16
mm
Maximum workpiece diameter (Dmax)
100
mm
Maximum insertion depth (tmax)
7
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
100
mm
Adjustment dimension cutting center (f1)
0.9
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| RH224_1616_62_IK.STP | Download |
| RH224161662IK_20210627_085401994.DXF | Download |
| Download all files | |
