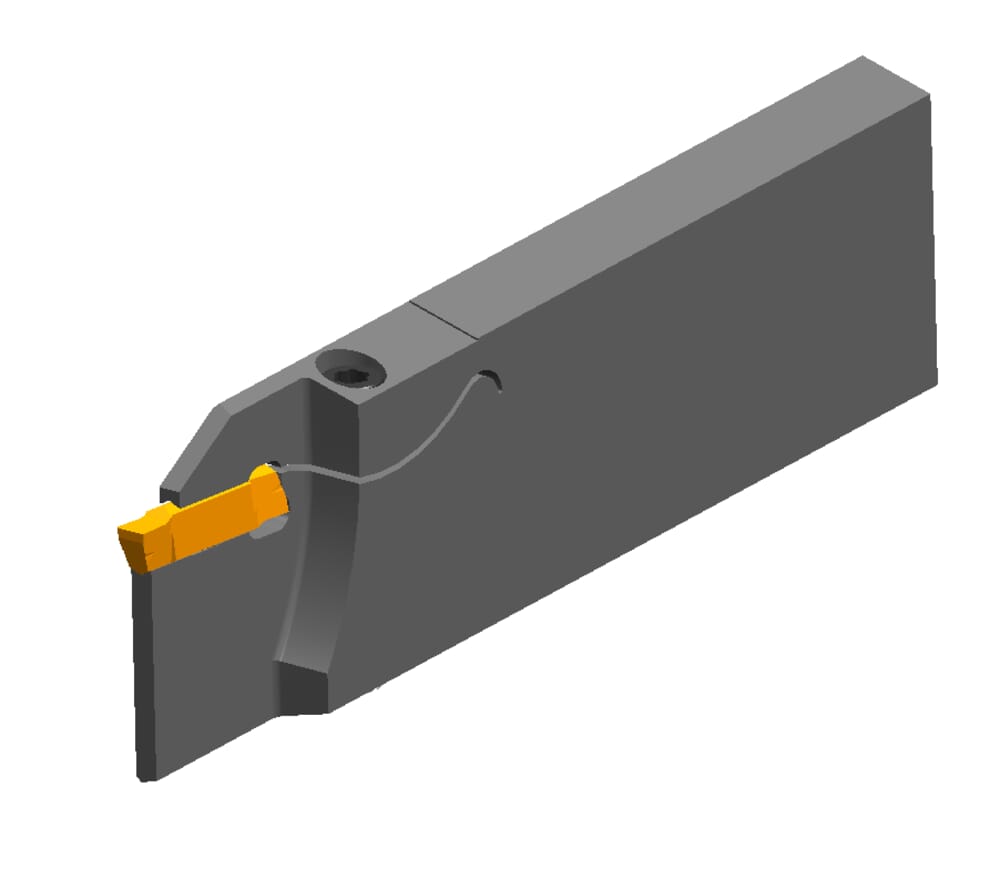

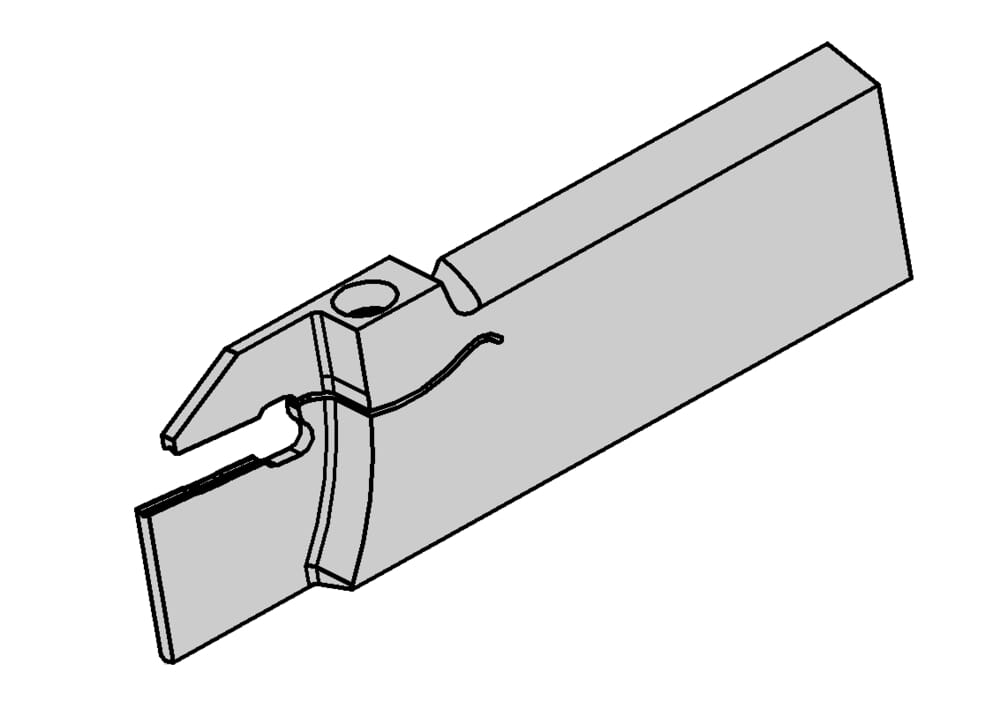

RH224.3208.03
Toolholders
Part number RH224320803
HORN Toolholders RH224.3208.03 for Turning
Please note:Technical instructions

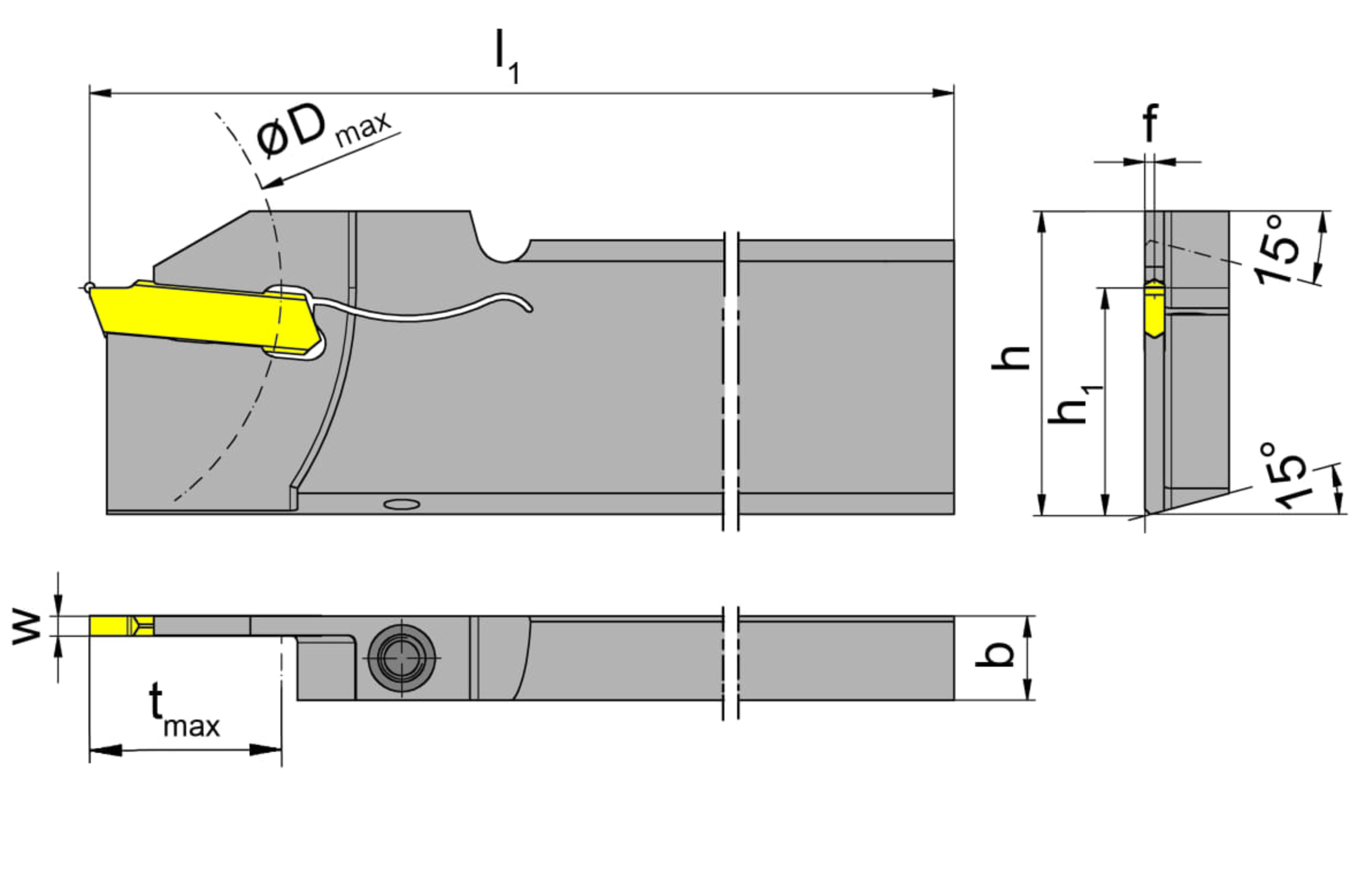

Width of groove (w)
3
mm
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
224038
DIN_CCTWS
HORN-224030058N
ISO_CCTWS
HORN224030058N$$$$$
Clamping range maximum (Spannbereich)
3.7
mm
Clamping range minimum (Spannbereich)
2.8
mm
eclass-shortcut
21-18-10-04
Peak height (h1)
24.8
mm
Maximum workpiece diameter (Dmax)
50
mm
Maximum insertion depth (tmax)
18
mm
Head height (h)
32
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f)
1.1
mm
Width / thickness sword (b)
7.9
mm
| Downloads | |
|---|---|
| RH224_3208_03_20171121_211240165.STP | Download |
| RH224320803_20210626_133400699.DXF | Download |
| Download all files | |
