RH315.1616.06.SA.03.IK
Toolholder
Part number RH315161606SA03IK

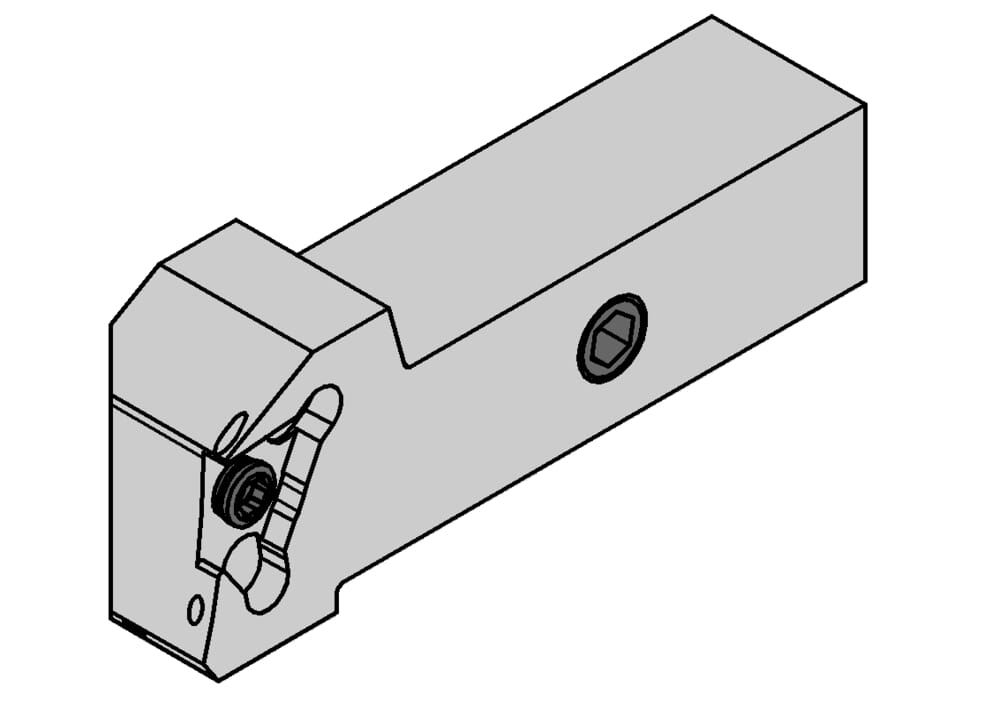

HORN Toolholder RH315.1616.06.SA.03.IK for Turning
Please note:Technical instructions

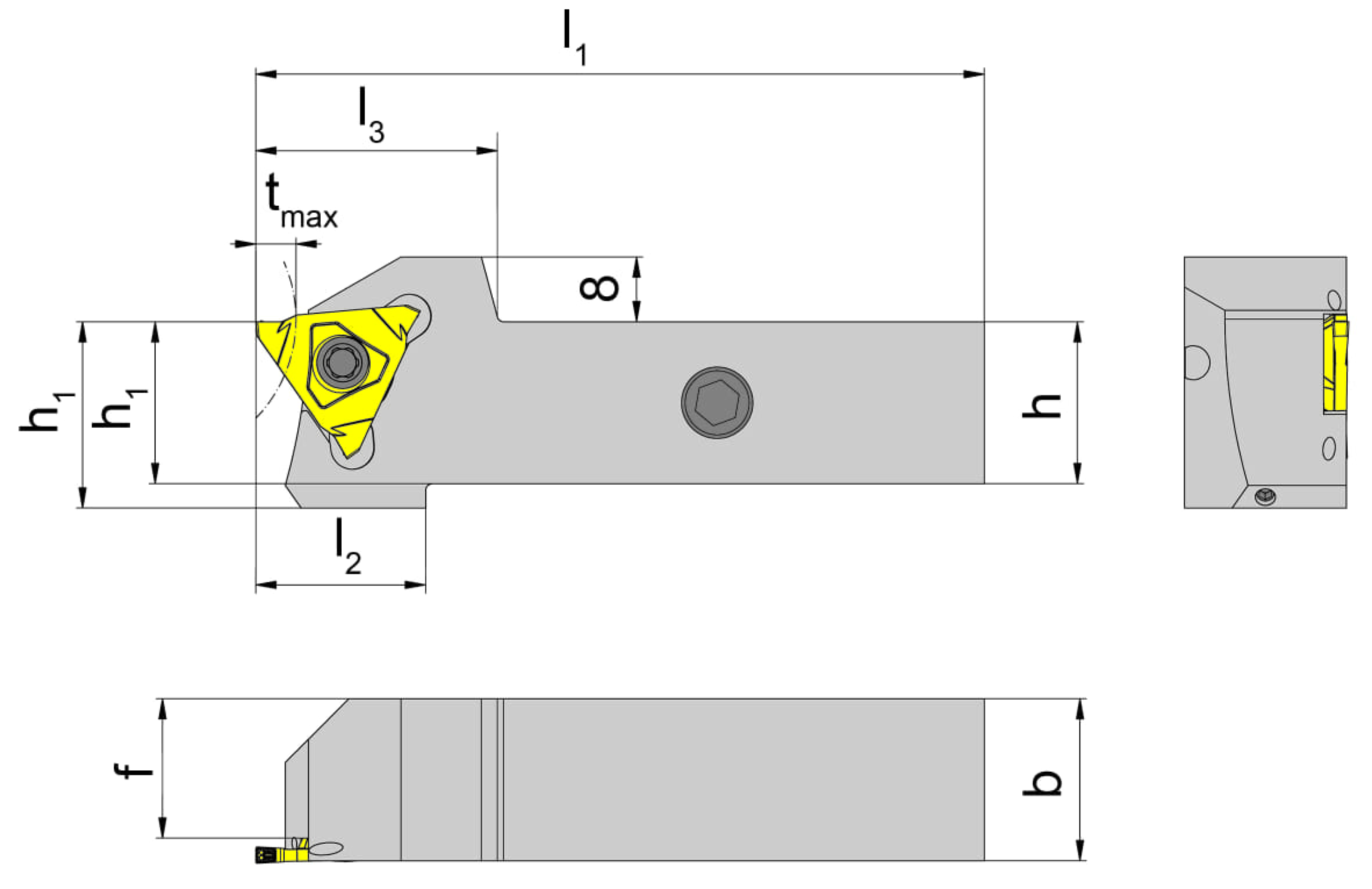

Head length (including cutting edge) (l2)
21
mm
plating-seat-size
3
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
S31503R
DIN_CCTWS
HORN-S31503051R
ISO_CCTWS
HORNS31503051R$$$$$
Head length top (including cutting edge) (l3)
30
mm
Peak height (h1)
16
mm
Maximum depth of groove (tmax)
6
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
75
mm
Shank width (b)
16
mm
