RH315.2020.05.0A.03.IK
Toolholder
Part number RH3152020050A03IK

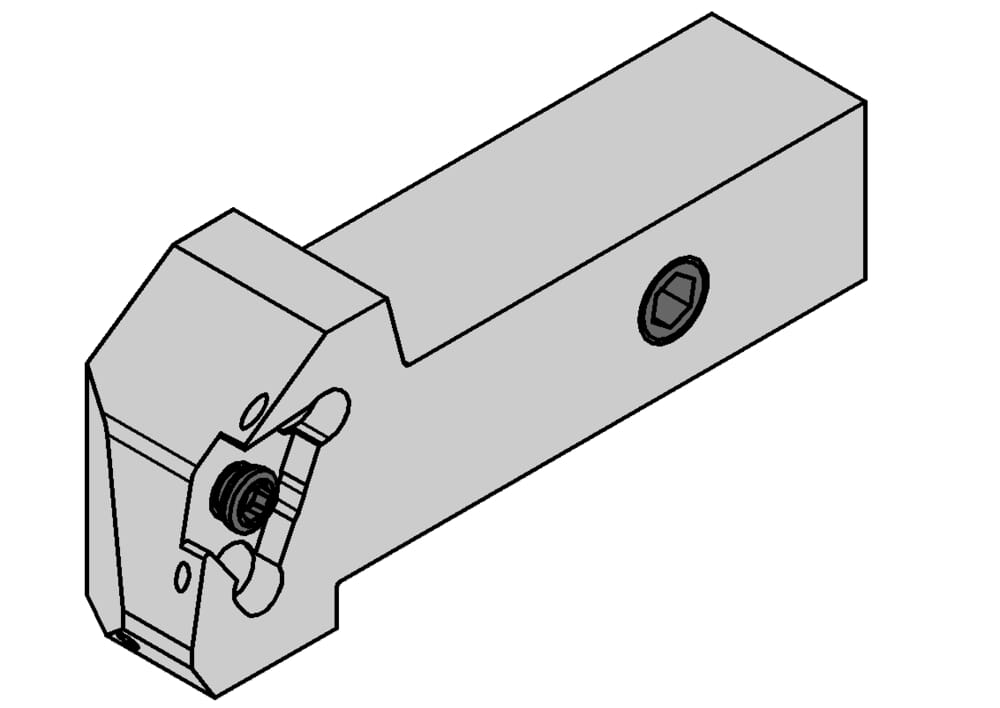

HORN Toolholder RH315.2020.05.0A.03.IK for Turning
Please note:Technical instructions

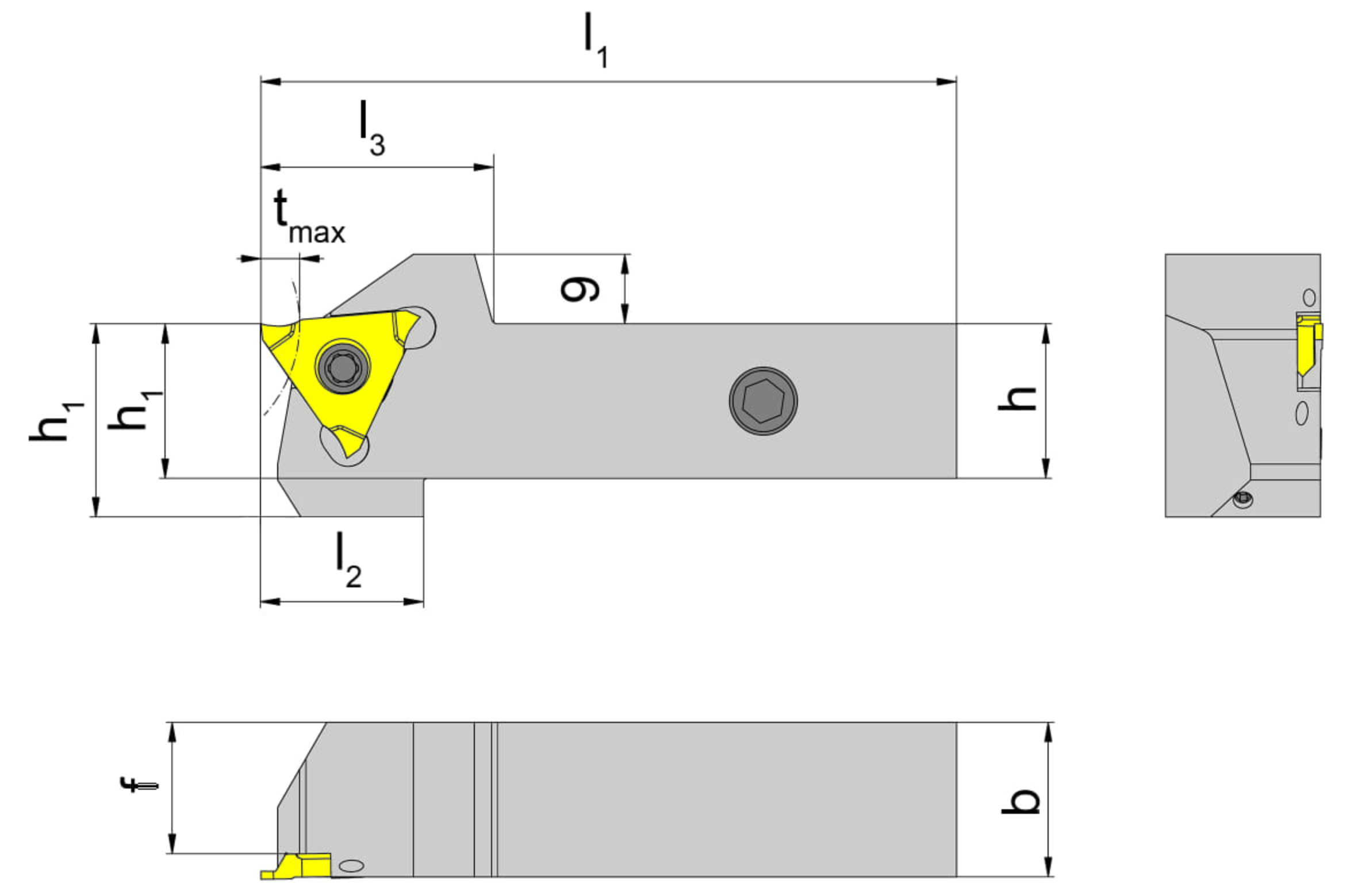

Head length top (including cutting edge) (l3)
30
mm
adjustment-dimension-locating-face-insert-met
17.2
mm
plating-seat-size
3
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
31503R
DIN_CCTWS
HORN-31503051R
ISO_CCTWS
HORN31503$051R$$$$$
Head length (including cutting edge) (l2)
21
mm
Peak height (h1)
20
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
90
mm
Shank width (b)
20
mm
