RHC316.1616.S3.03
Toolholder
Part number RHC3161616S303

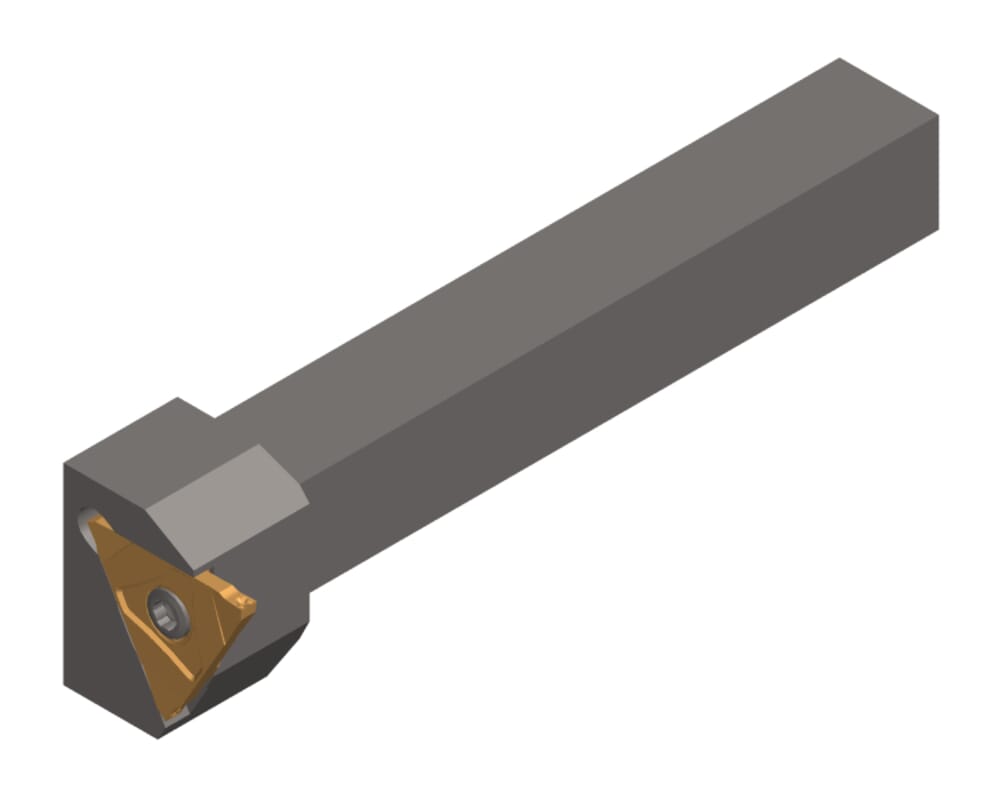

HORN Toolholder RHC316.1616.S3.03 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
8
mm
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160105
Katalog_CCTWS
S31603L
DIN_CCTWS
HORN-S31603000L
ISO_CCTWS
HORNS31603$000L$$$$$
eclass-shortcut
21-18-10-04
Peak height (h1)
25
mm
Shank height (h)
16
mm
Total length (without cutting insert) (l)
125
mm
Adjustment dimension (f)
29
mm
Shank width (b)
16
mm
