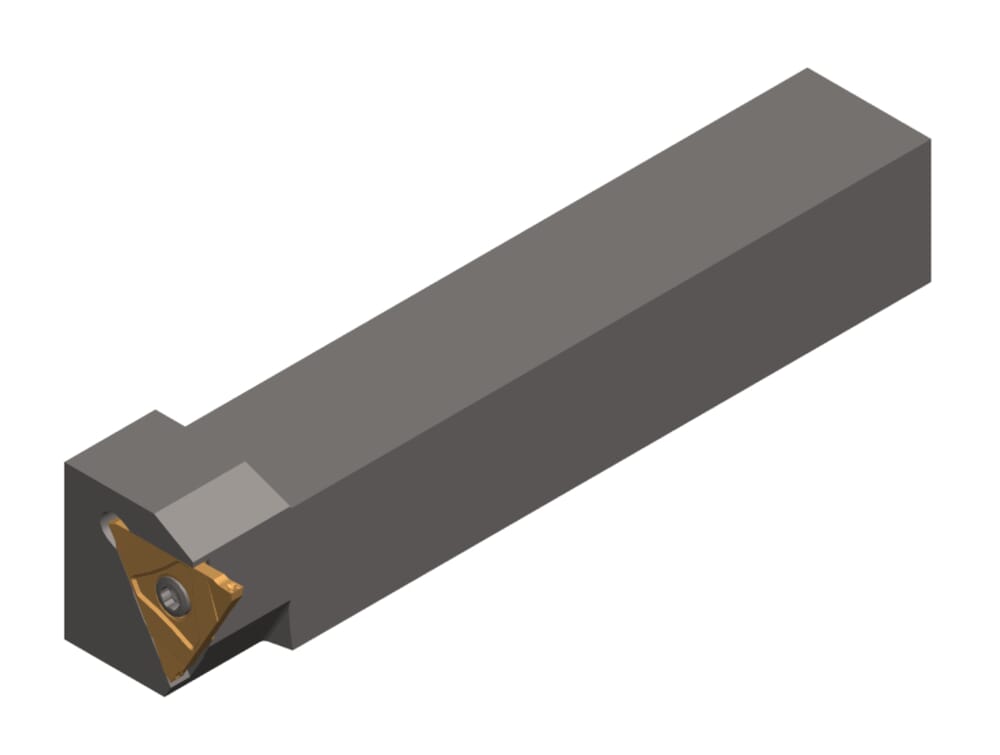

RHC316.2525.S3.03
Toolholder
Part number RHC3162525S303
HORN Toolholder RHC316.2525.S3.03 for Turning
Please note:Technical instructions

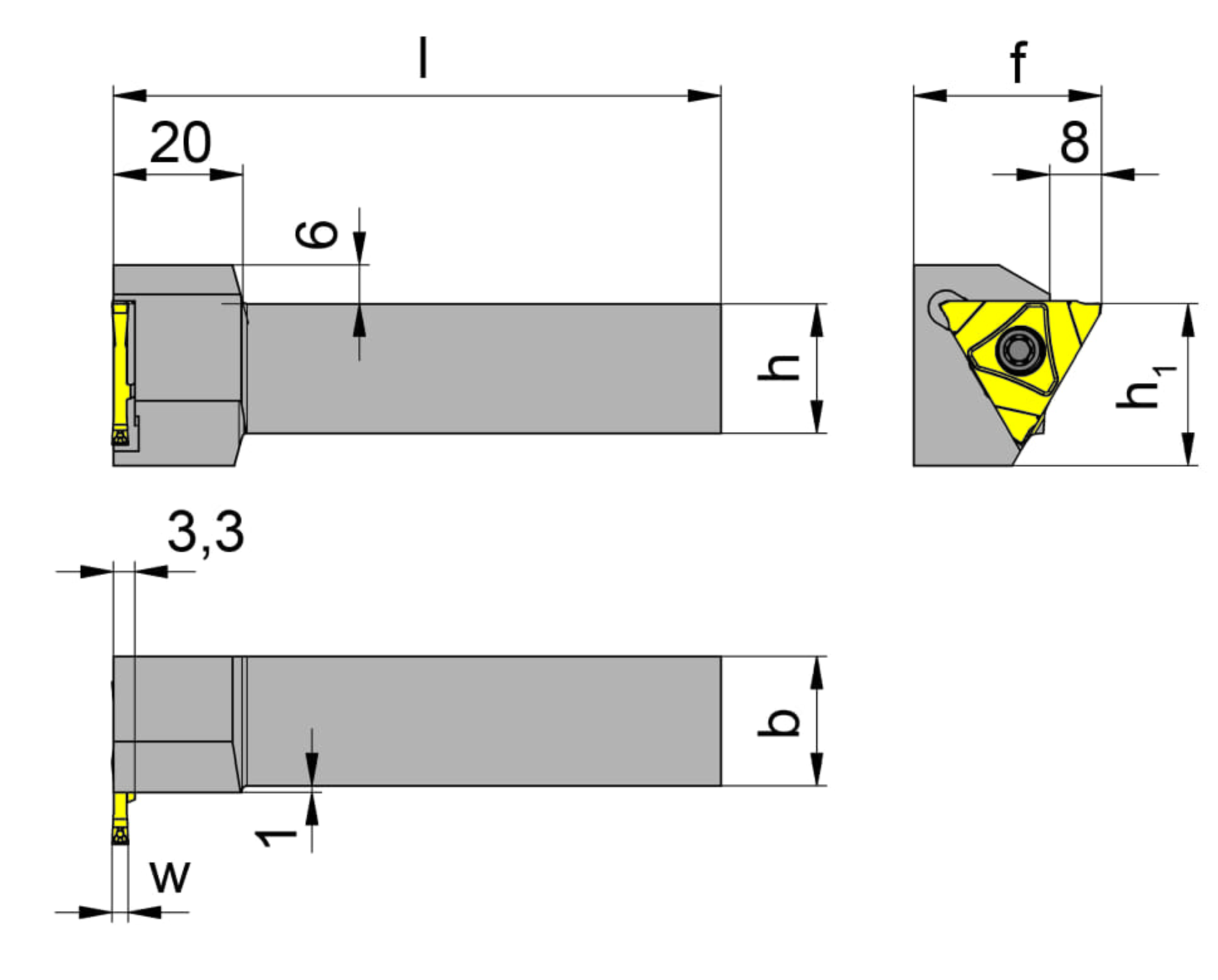

Maximum depth of groove (tmax)
8
mm
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
S31603L
DIN_CCTWS
HORN-S31603000L
ISO_CCTWS
HORNS31603$000L$$$$$
eclass-shortcut
21-18-10-04
Peak height (h1)
25
mm
Shank height (h)
25
mm
Total length (without cutting insert) (l)
150
mm
Adjustment dimension (f)
34
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| RHC3162525S303_20240117_043517848.STP | Download |
| RHC3162525S303_20210629_012628109.DXF | Download |
| Download all files | |
