RHV.C3.R.004.S274.2IK

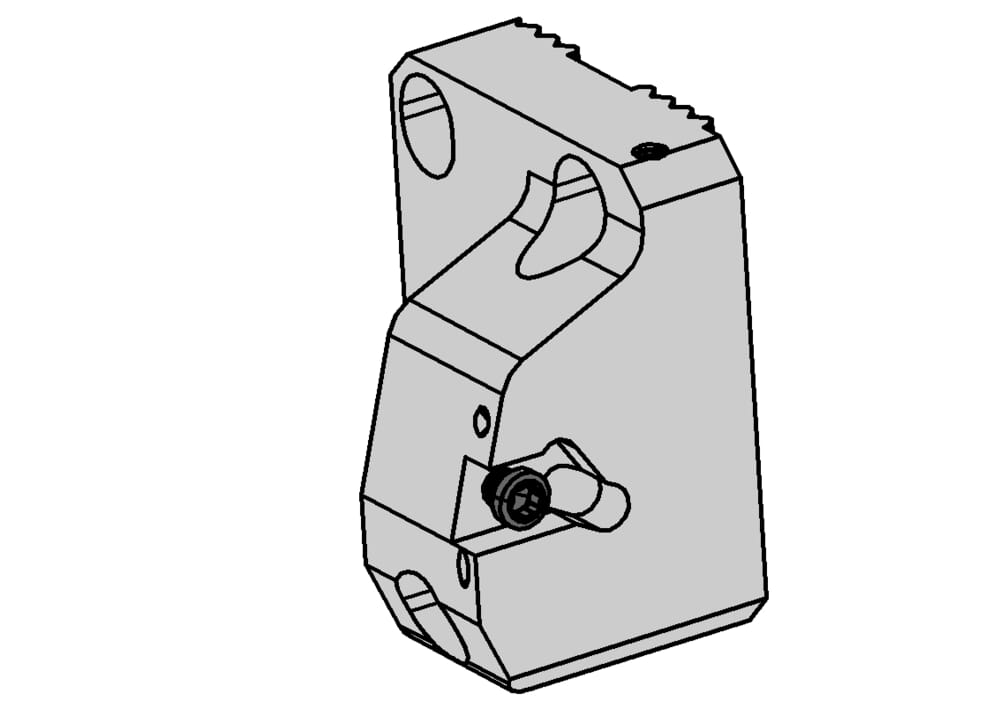

Back working tool Capto C3 with fine tuning for insert type HORN S274

Part number RHVC3R004S2742IK

HORN Back working tool Capto C3 with fine tuning for insert type HORN S274 RHV.C3.R.004.S274.2IK for Turning

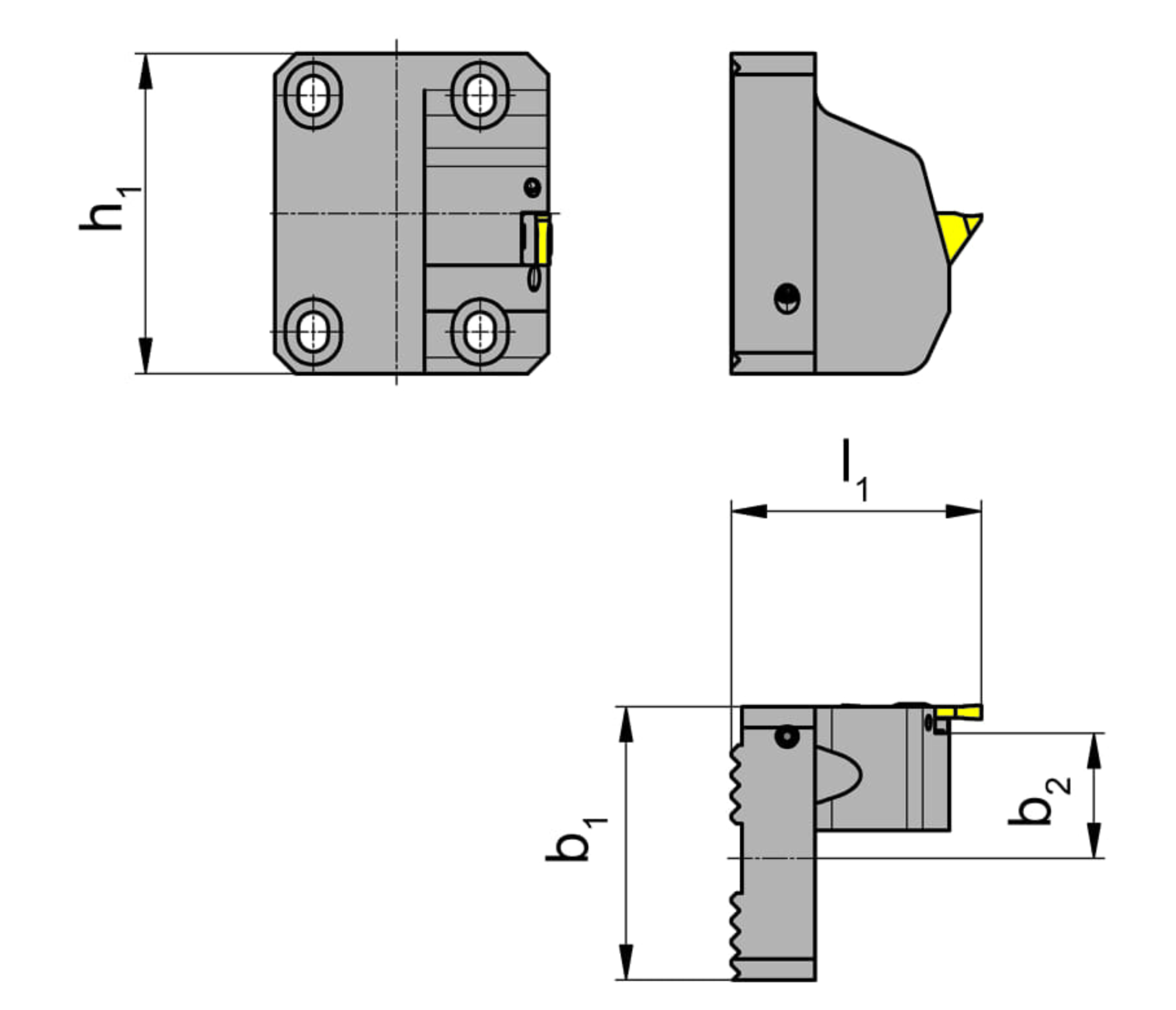

Width (b1)

39.3 mm

Adjustment dimension from center (b2)

22 mm

Total length (including cutting insert) (l1)

35.9 mm

Height (h1)

46 mm
