RIK224.7590.06.IK

Cartridge

Part number RIK224759006IK

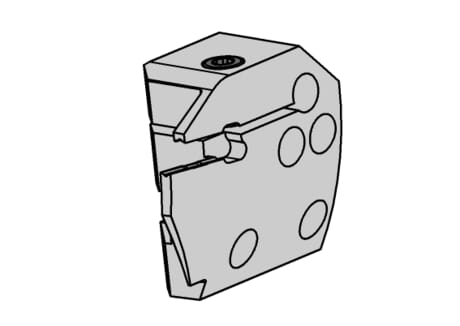

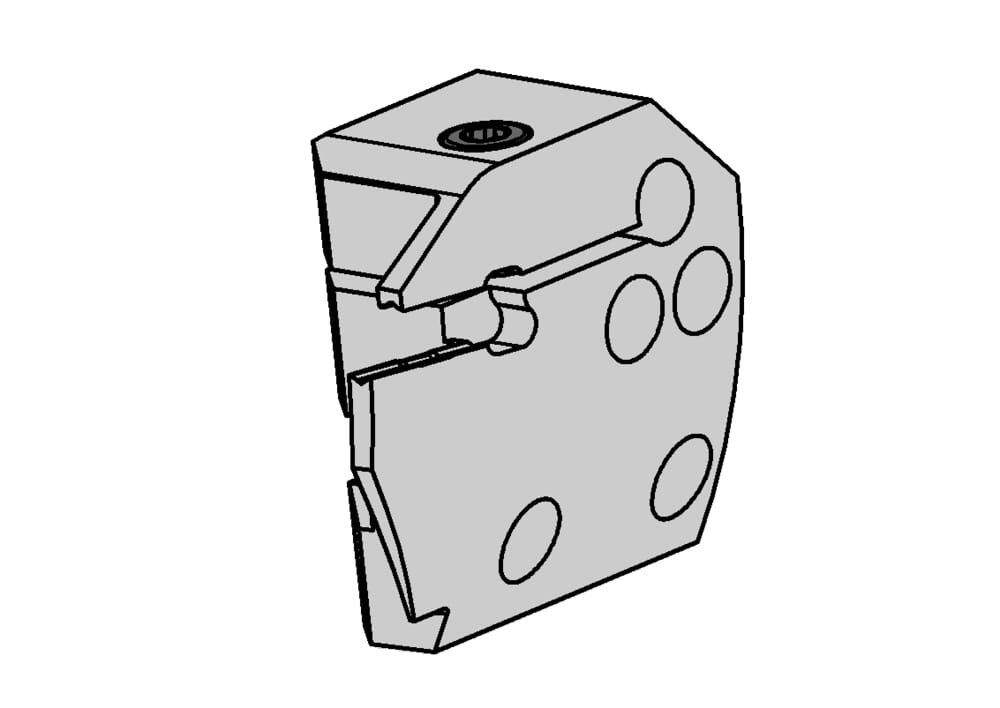

HORN Cartridge RIK224.7590.06.IK for Turning

Width of groove (w)

6 mm

Katalog_CCTMS

220001

ISO_CCTMS

HORN22000193$$

DIN_CCTMS

HORN-22000193

Katalog_CCTWS

224068

DIN_CCTWS

HORN-224060058N

ISO_CCTWS

HORN224060058N$$$$$

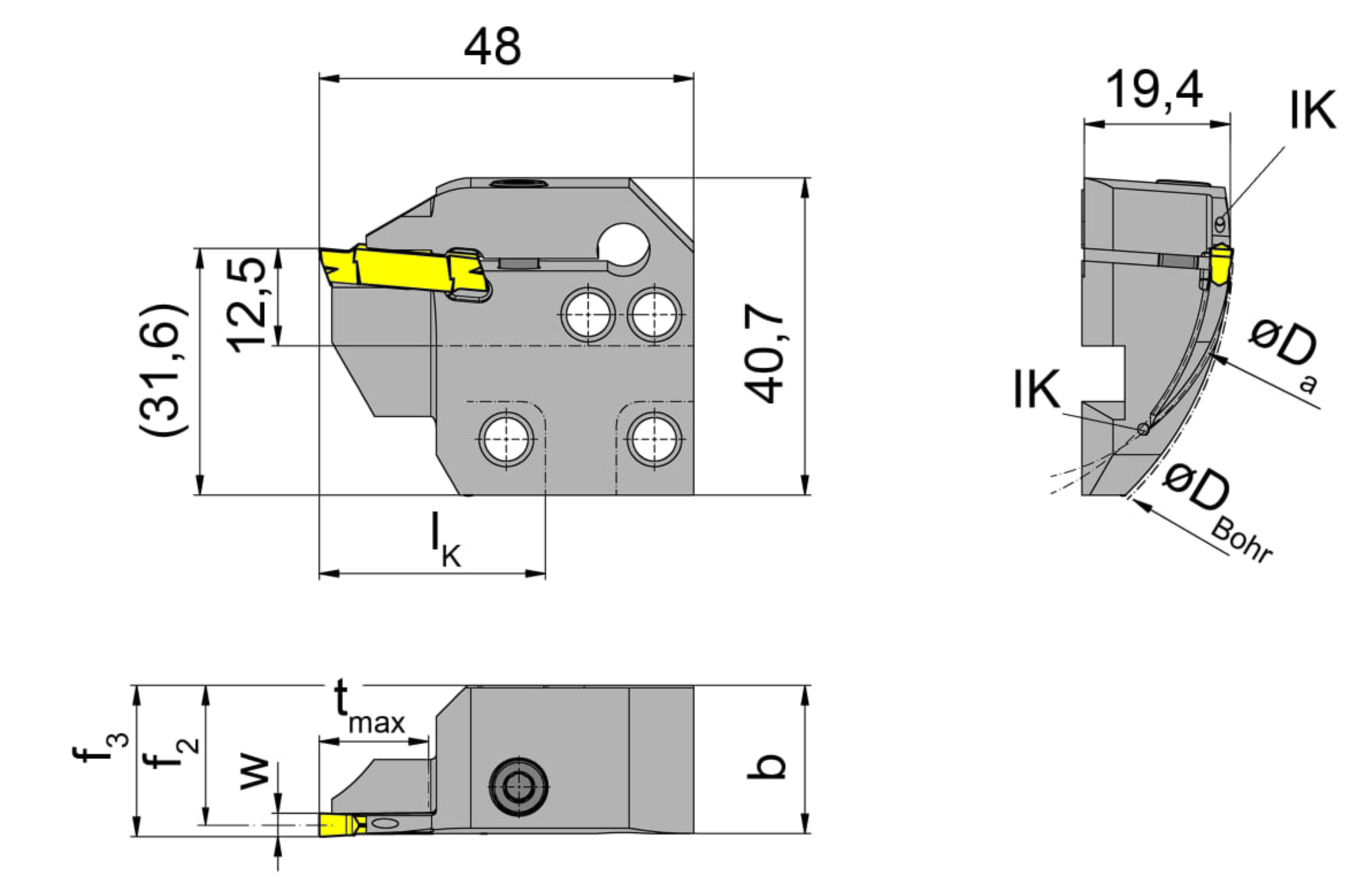

Adjustment dimension of system cassette formula (f3)

f2+w/2

eclass-shortcut

21-02-90-90

Minimum starting outside diameter (Da min)

75 mm

Maximum starting outside diameter (Da max)

90 mm

Maximum depth of groove (tmax)

14 mm

Length of unit cassette to cutting edge (lK)

29 mm

Adjustment dimension cutting center (f2)

16.4 mm

Width (b)

19 mm

Bore diameter (DBohr)

90 mm
