RNK100.0845.42.3.74.IK

Cartridge

Part number RNK100084542374IK

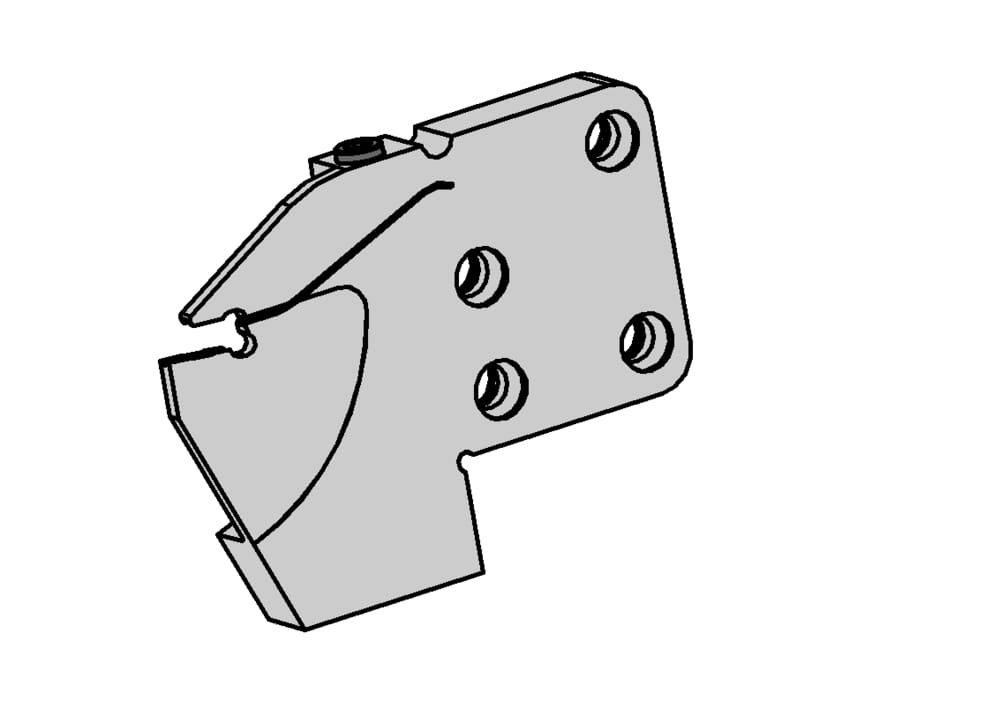

HORN Cartridge RNK100.0845.42.3.74.IK for Turning

eclass-shortcut

21-18-10-04

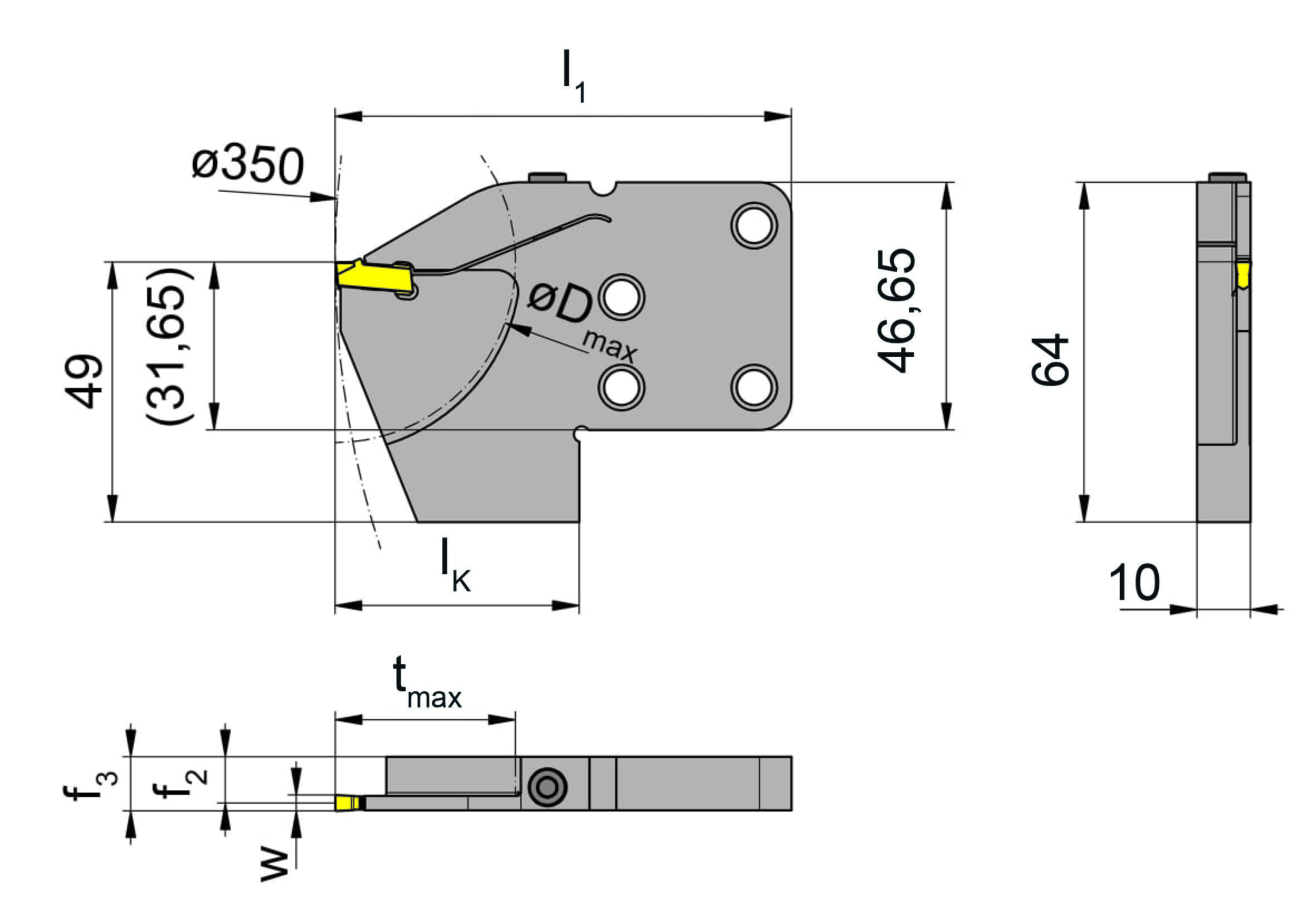

Width of groove (w)

4 mm

Katalog_CCTMS

845001;845002

ISO_CCTMS

HORN84500193$$;HORN84500293$$

DIN_CCTMS

HORN-84500193;HORN-84500293

Katalog_CCTWS

100049

DIN_CCTWS

HORN-100040059N

ISO_CCTWS

HORN100040059N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+w/2

Maximum workpiece diameter (Dmax)

84 mm

Maximum depth of groove (tmax)

42 mm

Length of unit cassette to cutting edge (lK)

54 mm

Total length (including cutting insert) (l1)

94 mm

Adjustment dimension cutting center (f2)

8.2 mm
