RNK224.0840.1.4.05.IK

Cartridge

Part number RNK22408401405IK

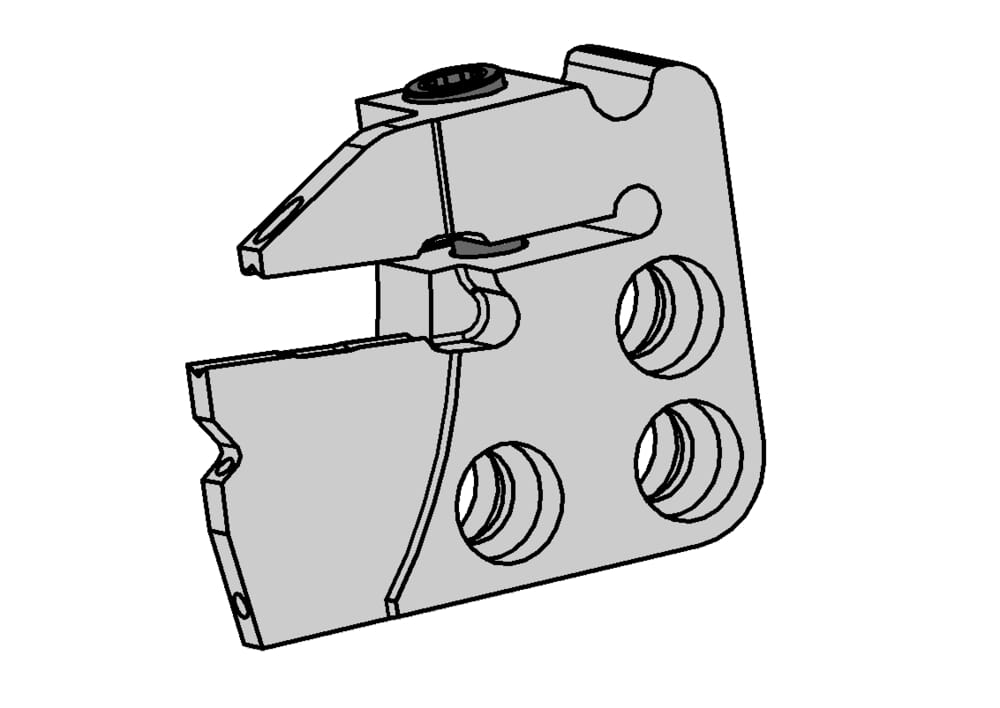

HORN Cartridge RNK224.0840.1.4.05.IK for Turning

Clamping range minimum (Spannbereich)

4.4 mm

Plating seat size (Größe)

Katalog_CCTMS

840001

ISO_CCTMS

HORN84000193$$

DIN_CCTMS

HORN-84000193

Katalog_CCTWS

224058

DIN_CCTWS

HORN-224050058N

ISO_CCTWS

HORN224050058N$$$$$

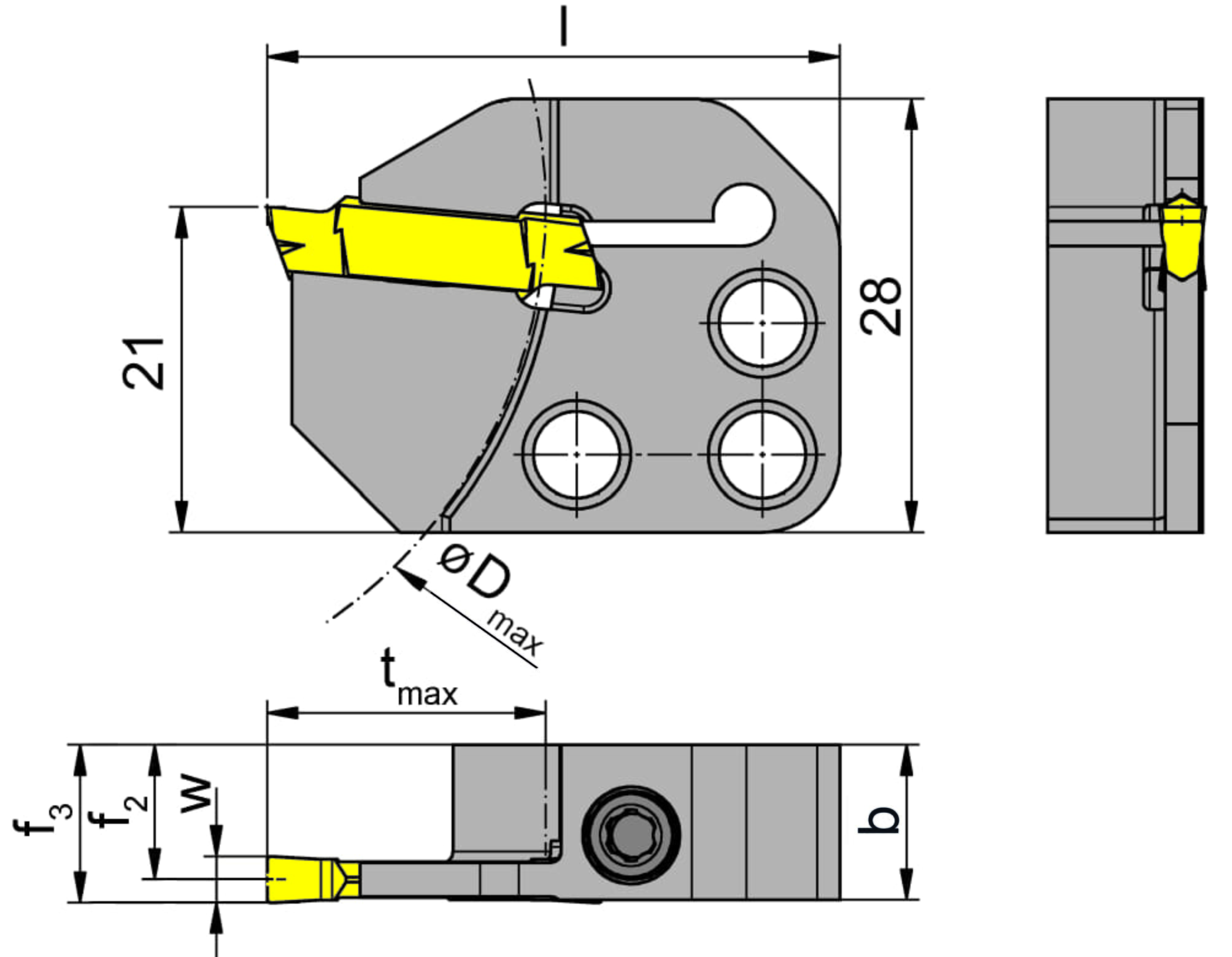

Adjustment dimension of system cassette formula (f3)

f2+w/2

Clamping range maximum (Spannbereich)

5.1 mm

eclass-shortcut

21-18-10-04

Maximum workpiece diameter (Dmax)

65 mm

Maximum depth of groove (tmax)

18 mm

Cassette thickness (b)

10 mm

Total length (including cutting insert) (l)

37 mm

Adjustment dimension cutting center (f2)

8.2 mm
