RNK224.3215.4.04.IK

Cartridge

Part number RNK2243215404IK

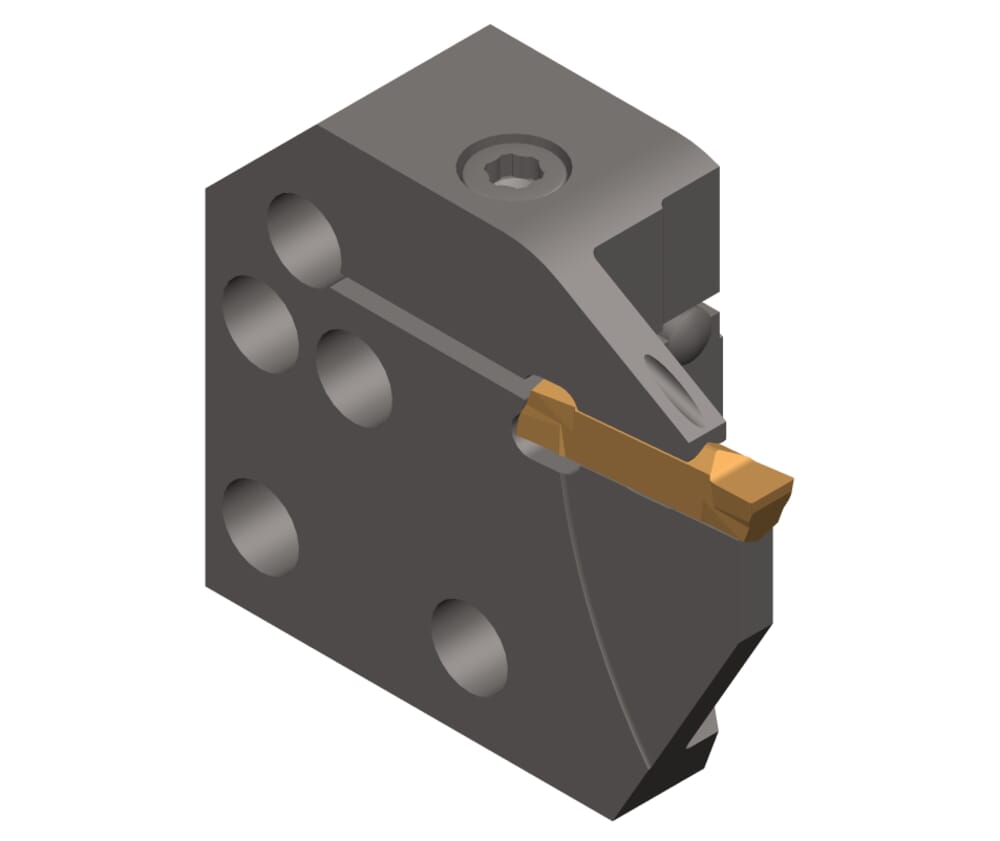

HORN Cartridge RNK224.3215.4.04.IK for Turning

clamping-range-min-met

3.7 mm

Width of groove (w)

4 mm

Katalog_CCTMS

220001

ISO_CCTMS

HORN22000193$$

DIN_CCTMS

HORN-22000193

Katalog_CCTWS

224048

DIN_CCTWS

HORN-224040058N

ISO_CCTWS

HORN224040058N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+w/2

clamping-range-max-met

4.4 mm

eclass-shortcut

21-18-10-04

Maximum workpiece diameter (Dmax)

80 mm

Maximum depth of groove (tmax)

18 mm

Length of unit cassette to cutting edge (lK)

31 mm

Cassette thickness (b)

16.05 mm

Adjustment dimension cutting center (f2)

14.4 mm
